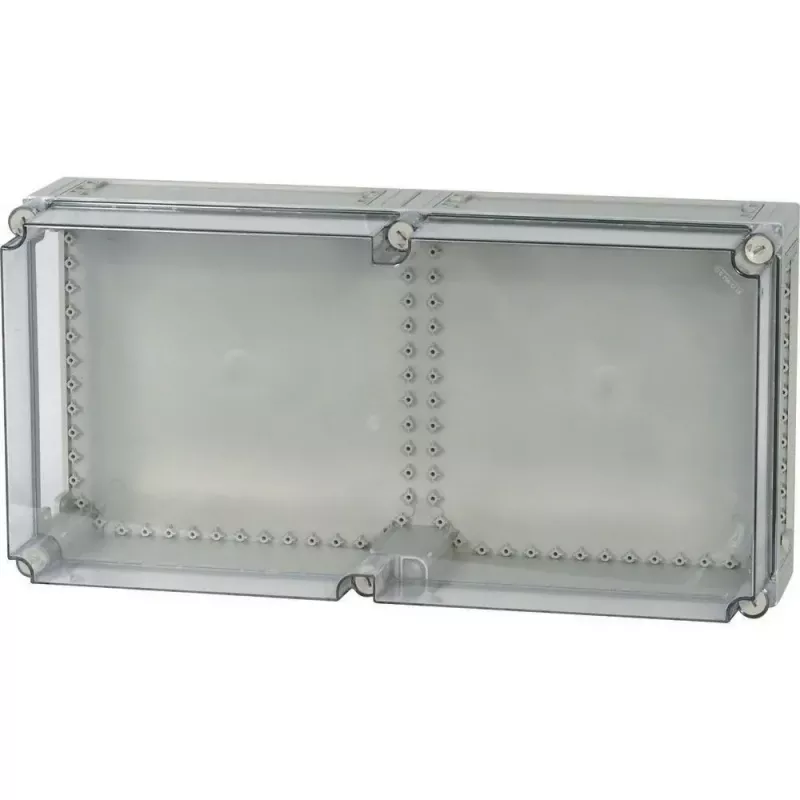

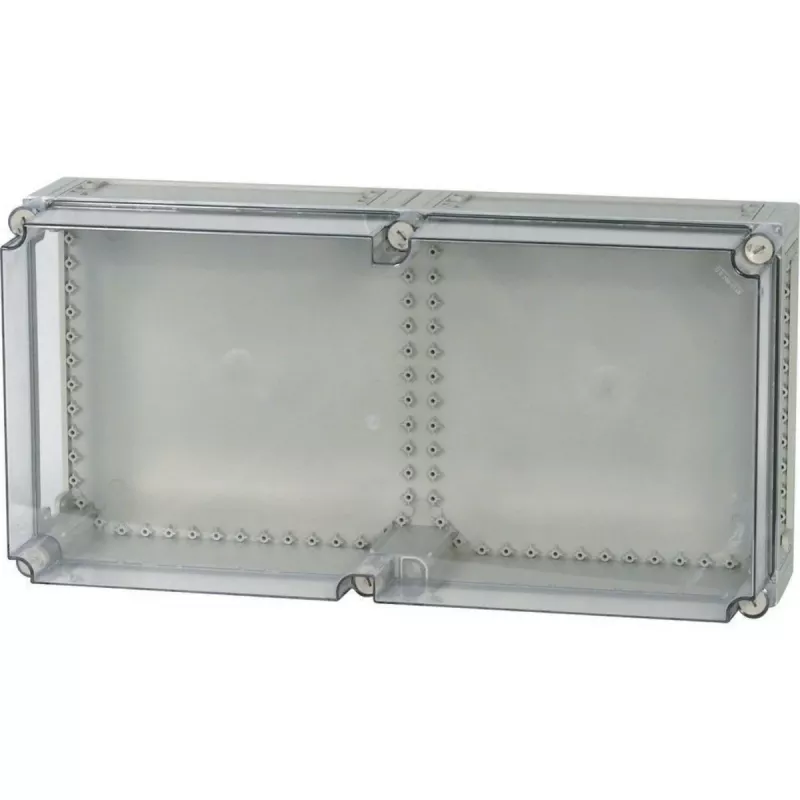

Eaton CI48-200 Tampa de caixa transparente em policarbonato IP65 078896

Protect the contents of your Eaton CI-K48-200 enclosure from dust, water and mechanical impact with this transparent polycarbonate cover. It provides a clear view of internal components while maintaining an IP65 seal, making it suitable for industrial and outdoor installations where visibility and protection are equally important.

Who is it for

Panel builders, system integrators and maintenance teams who need to inspect equipment without opening the enclosure, or who require a durable, UV-resistant cover for harsh environments.

Main features

• Transparent polycarbonate construction for clear visibility of internal components
• IP65 protection against dust and low-pressure water jets
• IK08 impact resistance for mechanical durability
• UV-resistant and halogen-free material
• Compatible with Eaton CI-K48-200 enclosures

Specifications

• Material: Polycarbonate
• Transparency: Transparent
• External width: 800 mm
• External height: 400 mm
• External depth: 12 mm
• Operating temperature range: -40 to +80 °C
• Flammability rating: UL 94 V-2
• Mounting type: Screw-on

Tips

Ensure the enclosure gasket is clean and properly seated before fitting the cover to maintain the IP65 seal. For outdoor use, the UV-resistant polycarbonate will resist yellowing over time.
