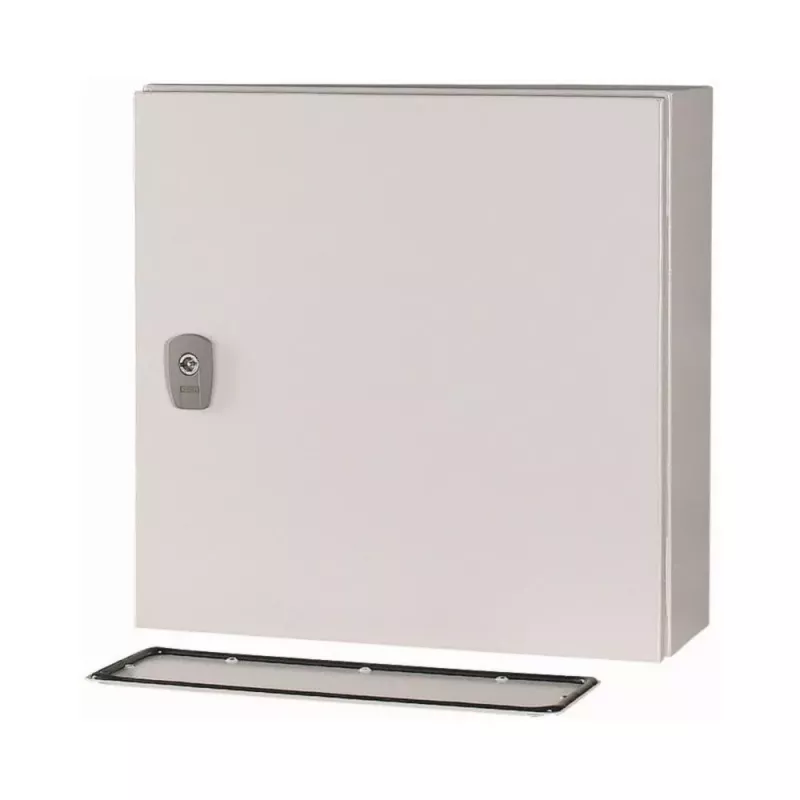

Eaton CS-44/150 Caixa de parede 400x400x150mm, Aço, IP65, Cinzento claro 111683

The Eaton CS-44/150 stands out among wall-mount enclosures with its robust sheet steel construction and precise 400 x 400 x 150 mm dimensions, offering a reliable housing for electrical components in demanding industrial environments. Its powder-coated light grey finish (RAL 7035) blends seamlessly into control cabinets and machinery layouts.

Highlights

• Solid sheet steel body with powder-coated finish for durability and corrosion resistance
• IP65 protection against dust and water jets, suitable for indoor and outdoor use
• Includes galvanized steel mounting plate for easy component installation
• Quarter-turn lock with 3 mm double-bit key provides secure access

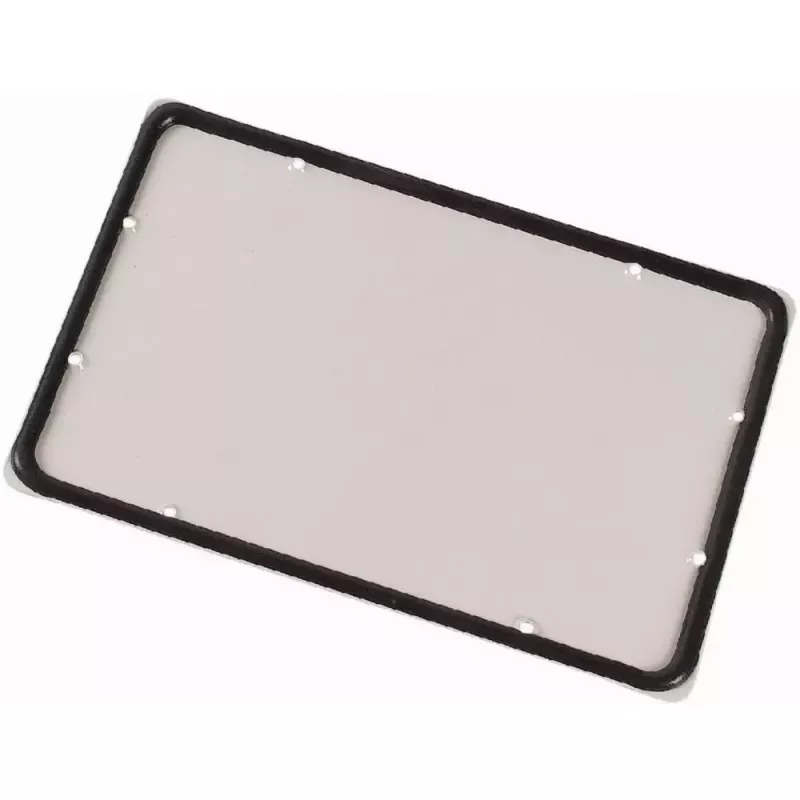

• Top and bottom gland plates allow flexible cable entry

In daily use

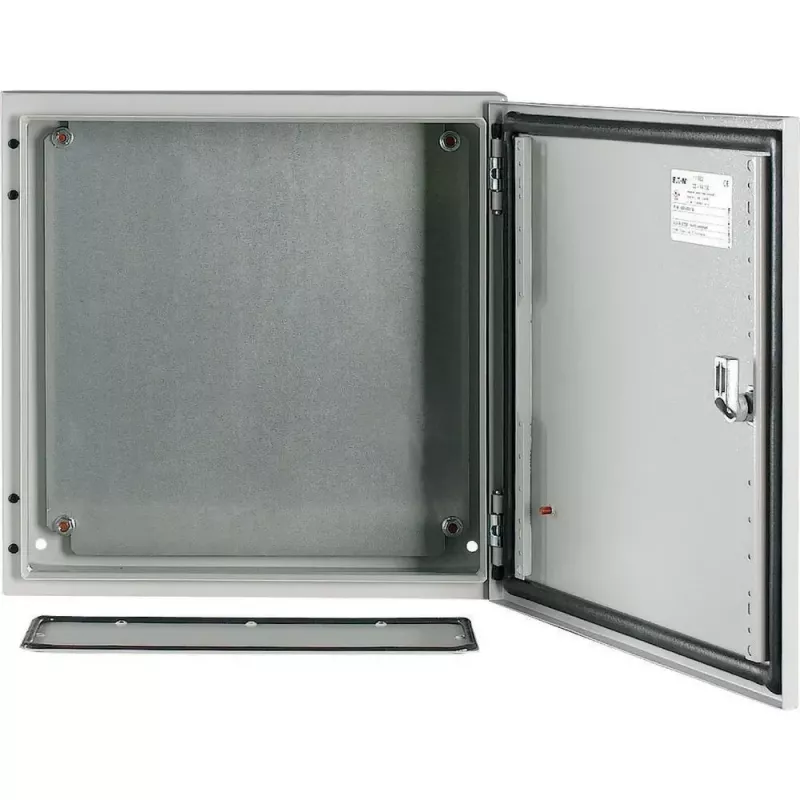

Install the CS-44/150 on a wall or machine frame, then mount DIN rails, terminals, or control devices on the included galvanized plate. The single solid door opens to 120 degrees, giving clear access for wiring and maintenance. The quarter-turn lock keeps the enclosure closed during operation, while the gland plates can be machined to fit cable glands or conduits as needed.

Full specifications

• External dimensions: 400 mm height, 400 mm width, 150 mm depth
• Material: Sheet steel, powder-coated, RAL 7035 light grey
• Protection class: IP65
• Impact resistance: IK10
• Door type: Solid, single door, opening angle 120°
• Lock mechanism: Quarter-turn lock with 3 mm double-bit key
• Mounting plate: Galvanized steel, included
• Cable entry: Top and bottom gland plates
• Operating temperature range: -25°C to +70°C
• Standards compliance: IEC/EN 62208

Final note

A dependable enclosure for electrical distribution and control applications where space is limited but protection requirements are high.
