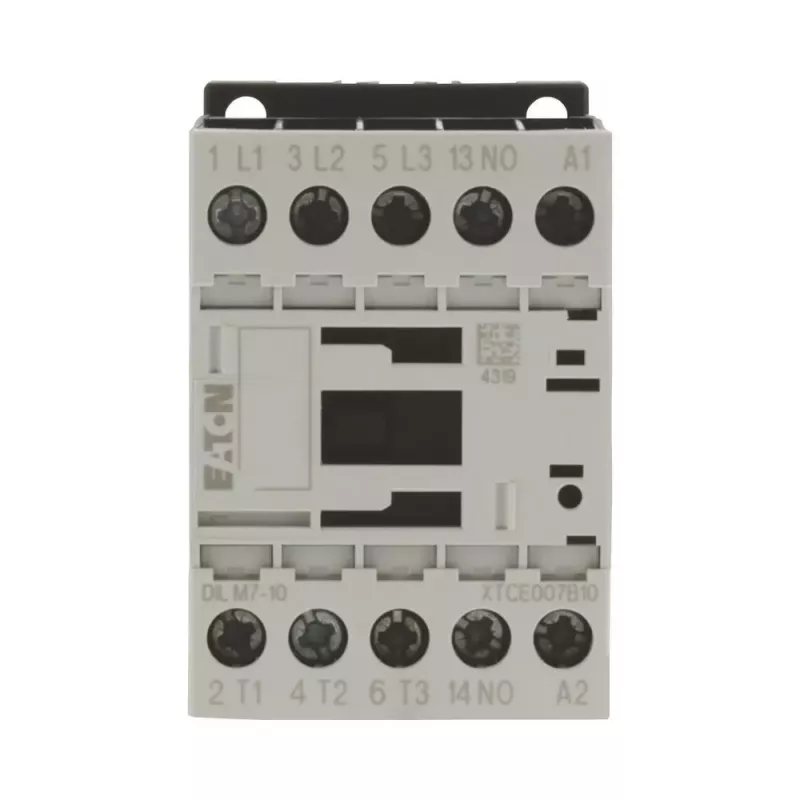

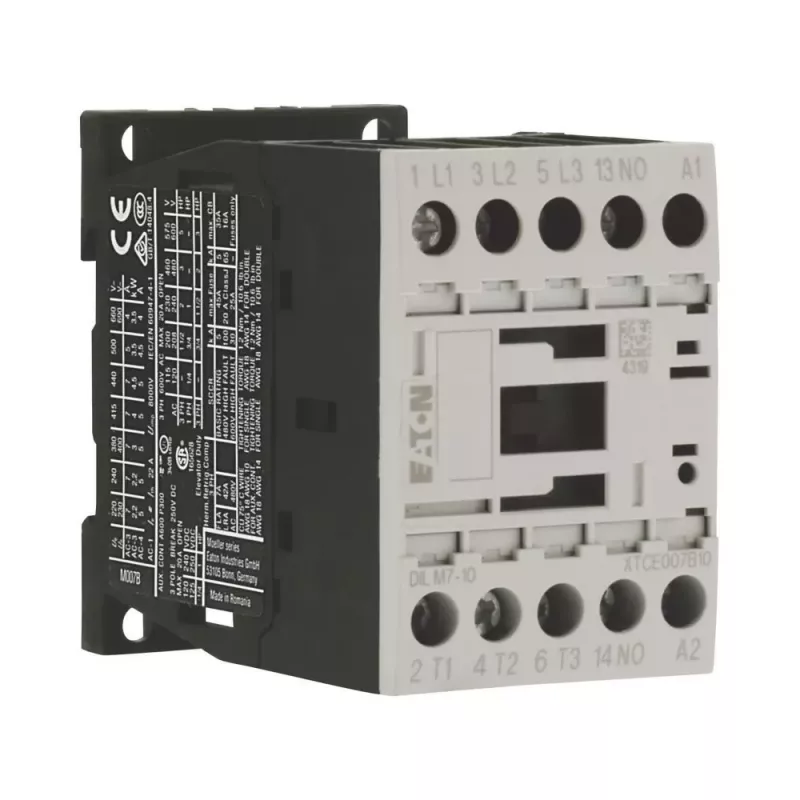

Eaton DILM7-10 contator tripolar, bobina 230V 50Hz / 240V 60Hz, 1NO contacto auxiliar, 3kW AC-3 400V 276550

The Eaton DILM7-10 contactor delivers 3 kW of switching power at AC-3 400V in a compact 3-pole design. With a 230V 50Hz / 240V 60Hz AC coil and a 1NO auxiliary contact, it handles motor loads up to 7 A at AC-3 and 22 A at AC-1.

Overview

Engineered for reliable motor control, the DILM7-10 features screw terminals, DIN rail or screw mounting, and a wide operating temperature range from -25 to +60 °C. Its rated insulation voltage of 690 V and impulse withstand of 6 kV ensure robust performance in industrial environments.

What stands out

• 3-pole main circuit with 1 normally open auxiliary contact
• Dual frequency coil: 230V at 50Hz, 240V at 60Hz
• High mechanical durability: 10 million operations
• Electrical life: 1.5 million operations at AC-3
• Compact dimensions for space-saving installation

Technical details

• Rated operational power (AC-3, 400V): 3 kW
• Rated operational current (AC-3, 400V): 7 A
• Rated operational current (AC-1, 400V): 22 A
• Coil voltage: 230V (50Hz) / 240V (60Hz)
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Mounting: DIN rail or screw mounting
• Terminal type: screw terminals
• Operating temperature: -25 to +60 °C
• Electrical life (AC-3): 1.5 x 10^6 operations
• Mechanical life: 10 x 10^6 operations
• Main circuit connection: 1 x (1-6 mm²) / 2 x (1-6 mm²)
• Auxiliary circuit connection: 1 x (0.75-2.5 mm²) / 2 x (0.75-2.5 mm²)
• Rated frequency: 50/60 Hz

Our verdict

A robust and versatile contactor for three-phase motor control, offering proven Eaton reliability with dual frequency coil and high mechanical endurance.
