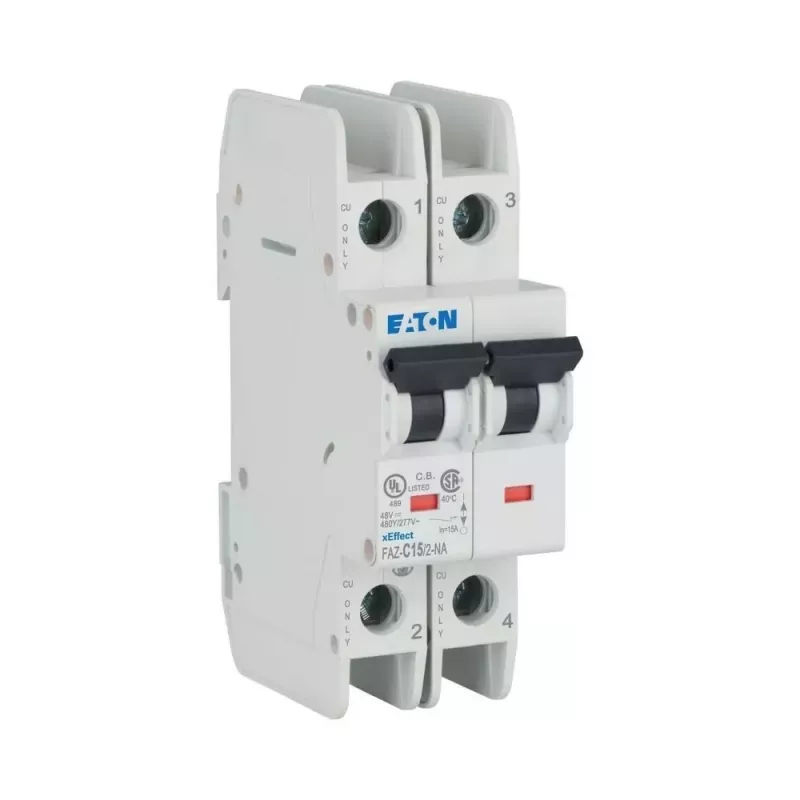

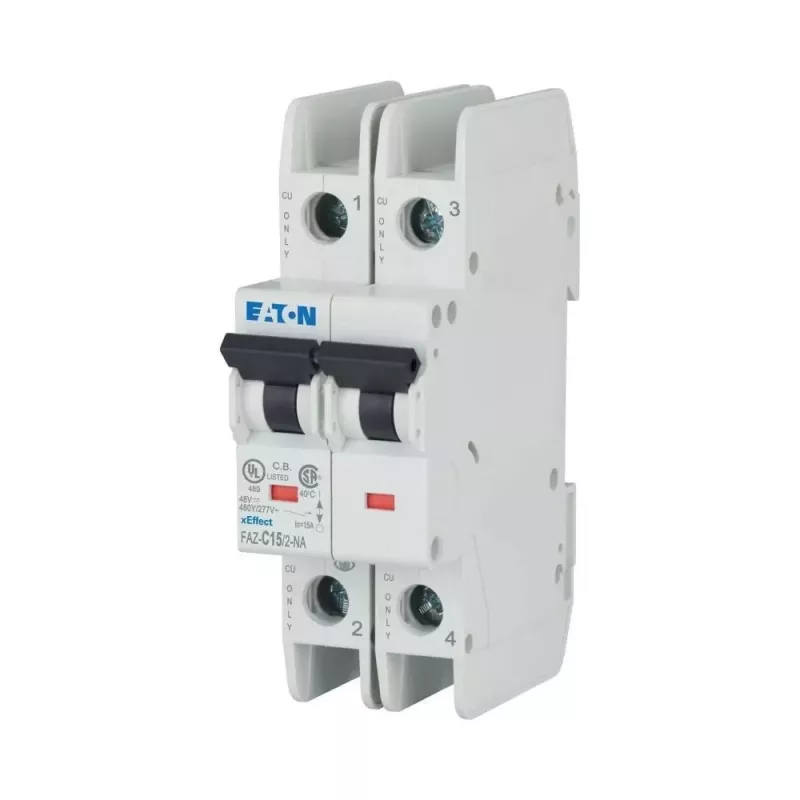

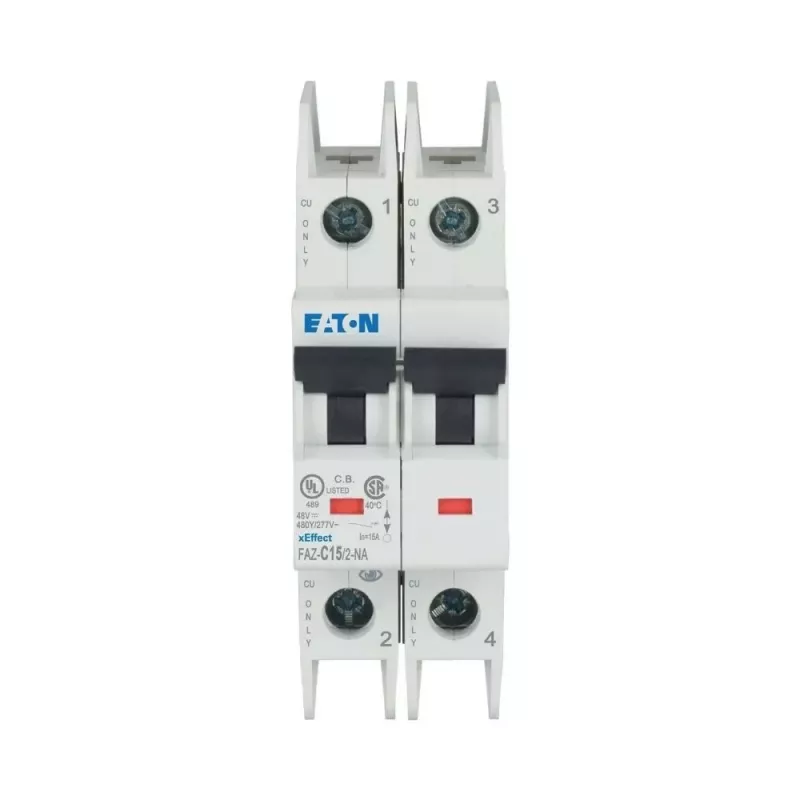

Eaton FAZ-C15/2-NA Disjuntor magnetotérmico de 15 A 2 polos com característica C (MCB) 102169

The Eaton FAZ-C15/2-NA is a 2-pole miniature circuit breaker (MCB) with a rated current of 15 A and C tripping characteristic, providing reliable protection for circuits against overload and short-circuit. It is designed for DIN rail mounting and suitable for use in distribution boards and control panels.

Advantages

This MCB offers a high short-circuit breaking capacity of 6 kA, ensuring robust protection in residential, commercial, and industrial applications. Its C-curve characteristic is ideal for circuits with moderate inrush currents, such as lighting and socket outlets. The device features screw terminals that accommodate solid conductors from 1 to 25 mm², ensuring secure and flexible wiring.

Suitable for

• Protection of lighting and socket circuits in residential and commercial buildings
• Control circuits with moderate inrush currents
• Distribution boards and panel boards requiring DIN rail mounted MCBs

Key specifications

• Rated current: 15 A
• Number of poles: 2
• Tripping characteristic: C
• Rated voltage: 230/400 V AC
• Rated short-circuit breaking capacity (Icn): 6 kA
• Frequency: 50/60 Hz
• Mounting type: DIN rail
• Terminal type: Screw terminals
• Terminal capacity (solid): 1 - 25 mm²
• Terminal capacity (flexible): 1 - 16 mm²
• Degree of protection (terminals): IP20
• Degree of protection (front): IP40
• Energy limiting class: 3
• Standard: IEC/EN 60898-1
• Operating temperature range: -25 to +75 °C
• Storage temperature range: -35 to +75 °C
• Electrical endurance: >10,000 operations
• Mechanical endurance: >20,000 operations
• Width in modular spacings: 2
• Type of voltage: AC

Recommendations

For circuits with high inrush currents, consider a D-curve MCB. Always ensure the MCB is installed by a qualified electrician and that the upstream protection is coordinated.
