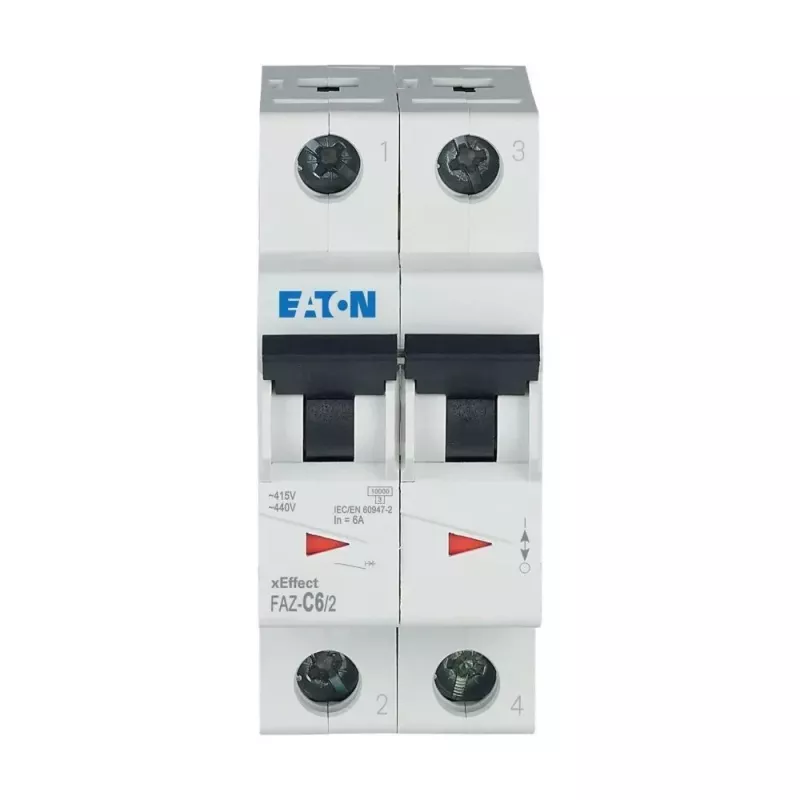

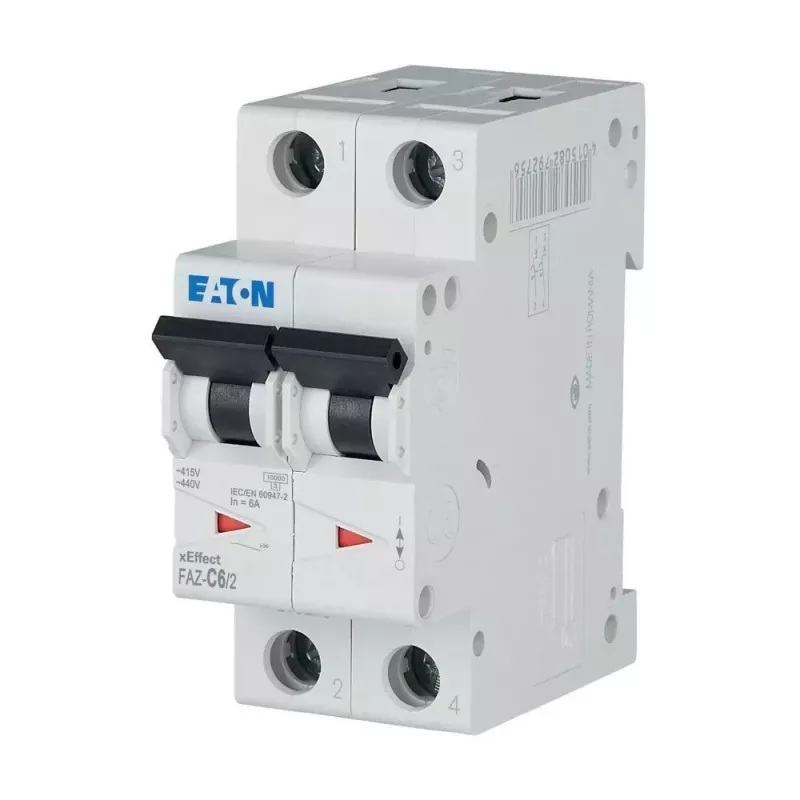

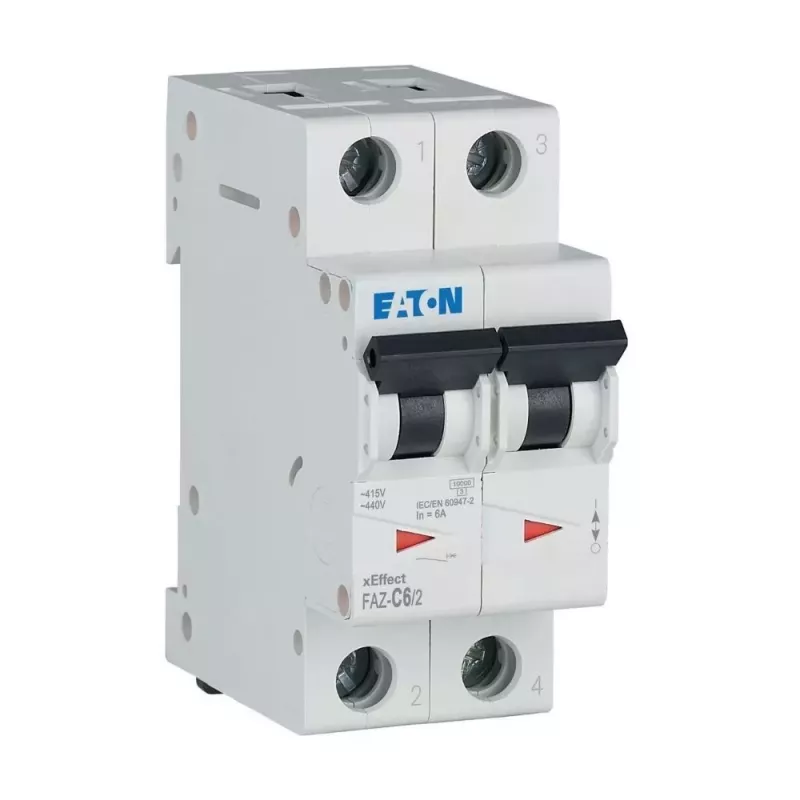

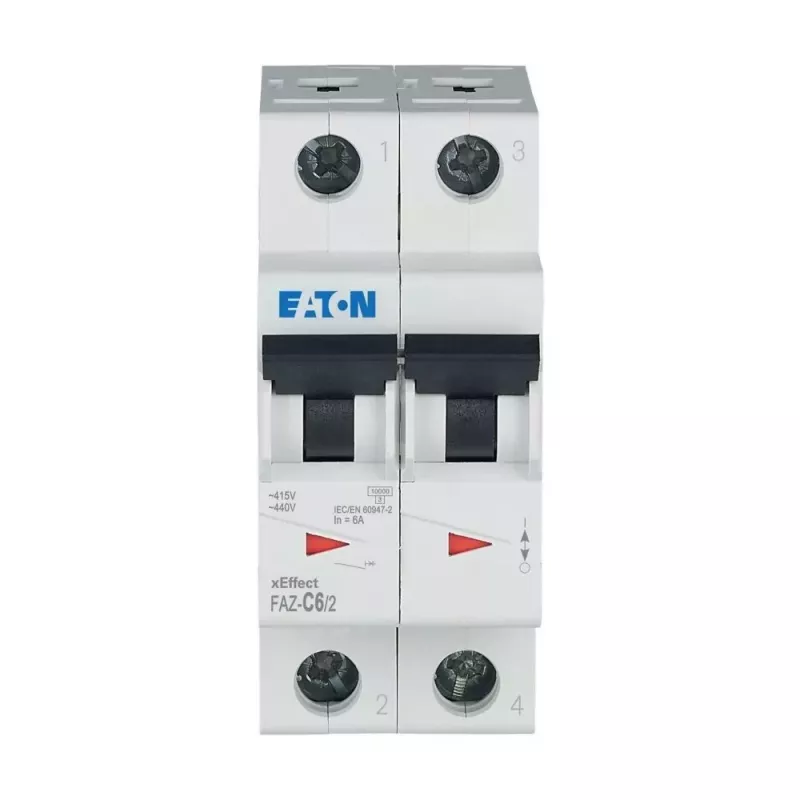

Eaton FAZ-C6/2 disjuntor de proteção de linha (MCB), 6 A, 2 polos, tipo C, 10 kA, 230/400 V AC 278754

Protect your electrical circuits from overload and short-circuit damage with the Eaton FAZ-C6/2 miniature circuit breaker. This 2-pole MCB is rated for 6 A and features a Type C tripping characteristic, making it ideal for commercial and industrial applications with moderate inrush currents. Its 10 kA breaking capacity ensures reliable interruption of fault currents, safeguarding wiring and connected equipment.

Who is it for

This circuit breaker is designed for electricians, panel builders, and facility managers who need dependable protection for lighting, control circuits, and small motors. It suits installations where a 6 A, 2-pole breaker with a C curve is specified.

Main features

• Rated current: 6 A
• Number of poles: 2
• Tripping characteristic: C (short-circuit release 5–10 × In)
• Rated voltage: 230/400 V AC
• Breaking capacity: 10 kA according to IEC/EN 60898-1
• Mounting: DIN rail (35 mm)
• Width: 2 modular spacings (36 mm)

Specifications

• Rated current: 6 A
• Number of poles: 2
• Tripping characteristic: C
• Rated voltage: 230/400 V AC
• Rated short-circuit breaking capacity: 10 kA
• Frequency: 50/60 Hz
• Mounting type: DIN rail
• Degree of protection: IP20 (terminals)
• Terminal type: Screw terminals
• Terminal capacity: 1–25 mm²
• Energy limiting class: 3
• Ambient operating temperature: -25 to +75 °C
• Electrical life: >10,000 operations
• Mechanical life: >20,000 operations
• Pollution degree: 2
• Overvoltage category: III
• Rated impulse withstand voltage: 4 kV
• Standards: IEC/EN 60898-1

Tips

When selecting a circuit breaker, ensure the tripping characteristic matches the load profile. Type C is suitable for circuits with moderate inrush currents, such as lighting banks and control transformers. Always verify that the short-circuit current at the installation point does not exceed the breaker's breaking capacity.
