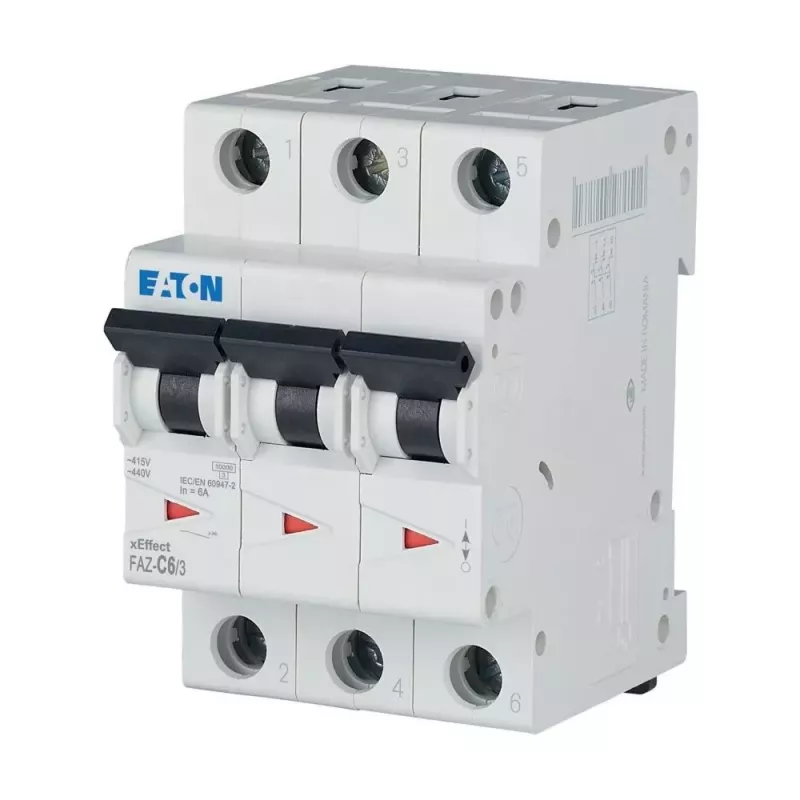

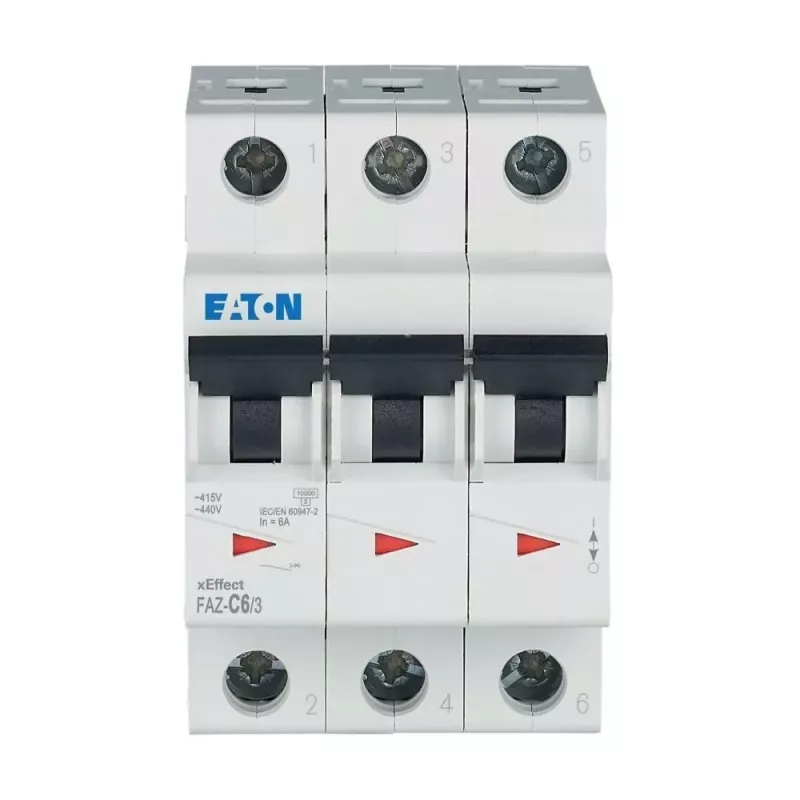

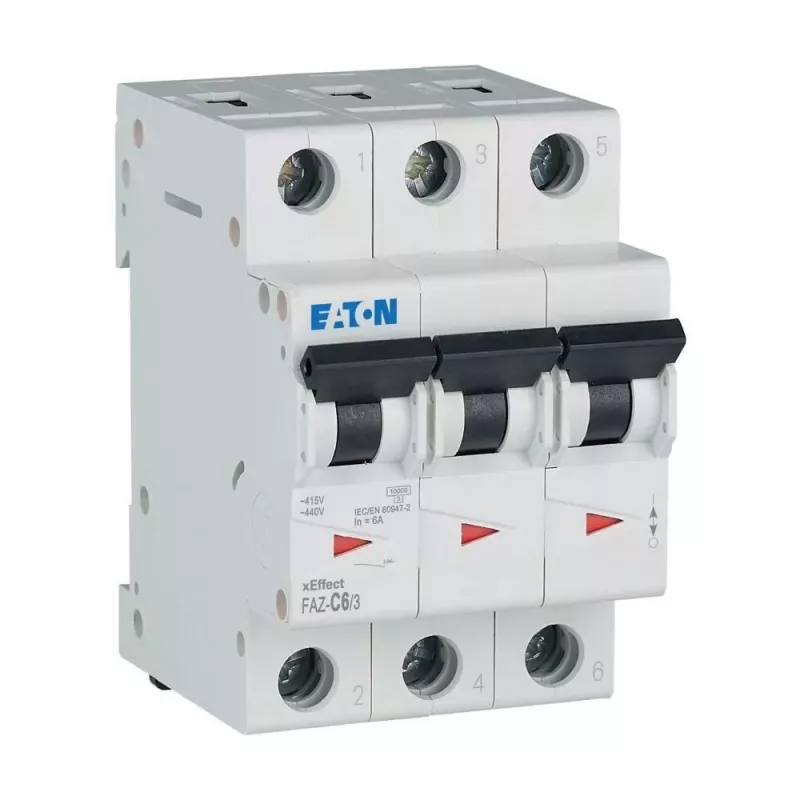

Eaton FAZ-C6/3 disjuntor de proteção de linha (MCB) de 6 A 3 polos com característica C, 6 kA 278867

The Eaton FAZ-C6/3 is a 3-pole miniature circuit breaker (MCB) with C tripping characteristic, rated at 6 A, providing reliable overcurrent and short-circuit protection in industrial and commercial electrical installations. Its 6 kA breaking capacity ensures safe interruption of fault currents.

Advantages

This MCB features a compact 3-module width (52.5 mm) for DIN rail mounting, screw terminals accepting conductors up to 25 mm², and a clear red/green contact position indicator. The energy limiting class 3 ensures excellent current limitation, protecting downstream equipment.

Suitable for

• Protection of control circuits, lighting, and small motors
• Distribution boards in industrial and commercial buildings
• Applications requiring C-curve tripping for moderate inrush currents

Key specifications

• Number of poles: 3
• Rated current: 6 A
• Tripping characteristic: C
• Rated voltage: 230/400 V AC
• Breaking capacity: 6 kA
• Frequency: 50/60 Hz
• Mounting: DIN rail (EN 60715)
• Degree of protection: IP20 (terminals)
• Terminal type: screw terminals, 1-25 mm²
• Energy limiting class: 3
• Standards: IEC/EN 60898-1
• Rated impulse withstand voltage: 4 kV
• Operating temperature: -25 to +75 °C
• Module width: 3 modules (52.5 mm)
• Electrical endurance: >10,000 switching cycles
• Pollution degree: 2

Recommendations

For optimal performance, install in a dry, dust-free enclosure. Ensure proper torque on screw terminals to prevent overheating. Verify compatibility with upstream protective devices for selectivity.
