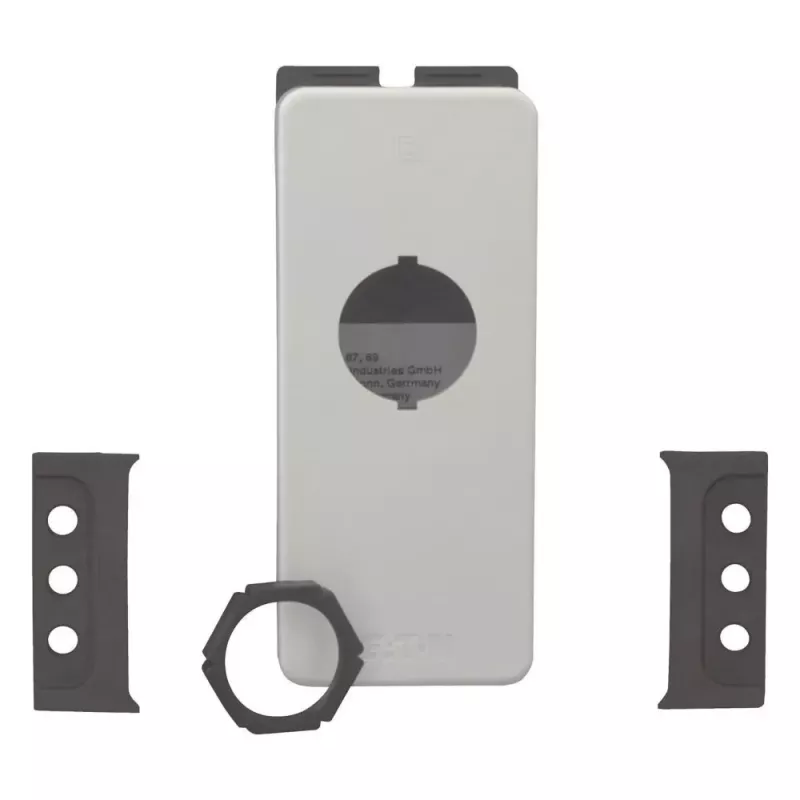

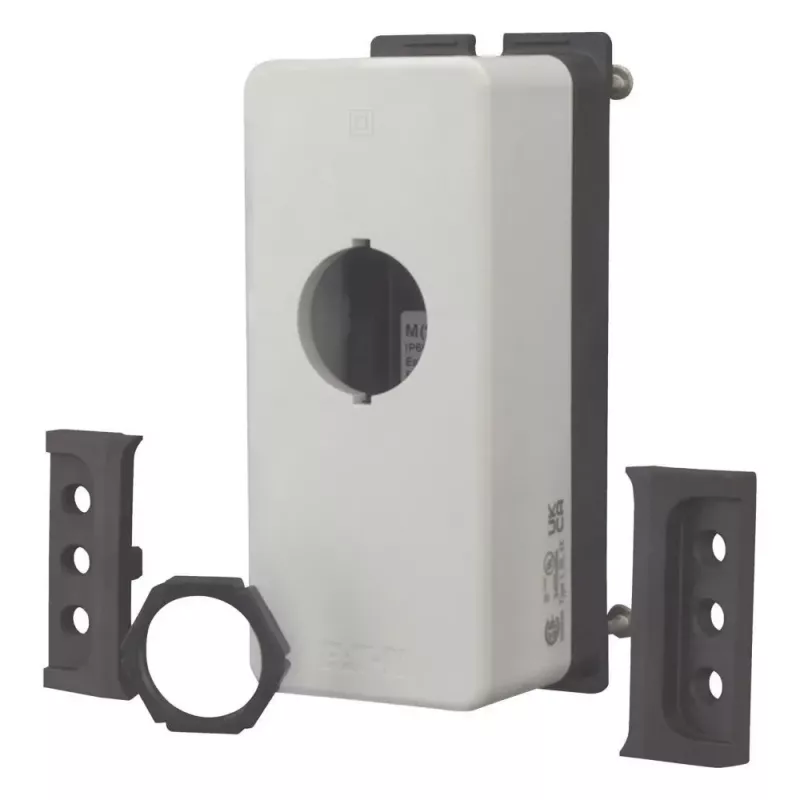

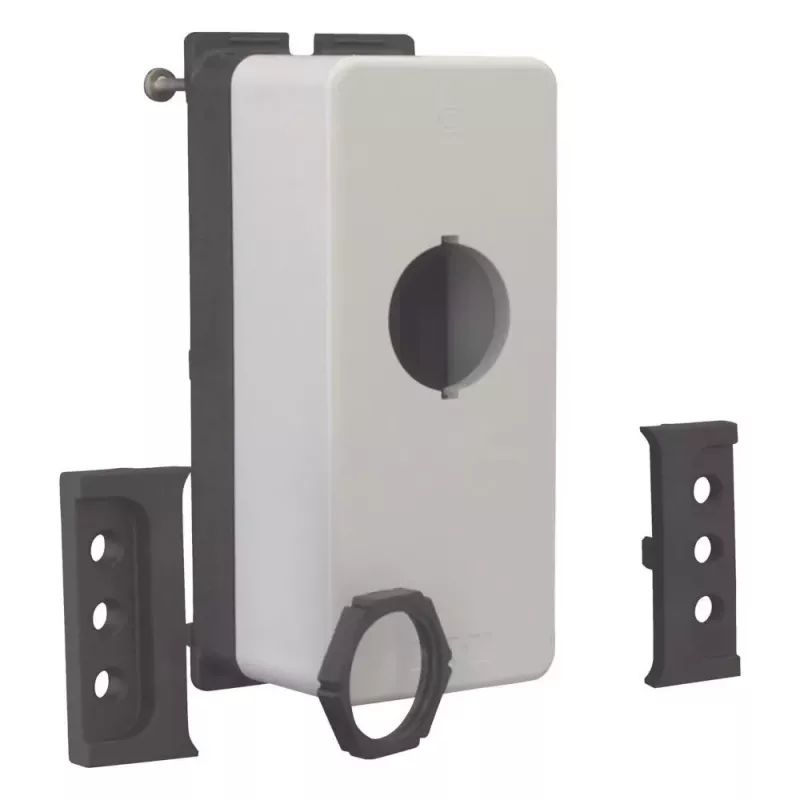

EATON M22-FI1 caixa de superfície, 1 ponto de comando, cinzento/preto, IP66/IP67/IP69K

Surface-mounted housing for Eaton M22 series control devices, providing a robust enclosure for a single command point. Its plastic construction with grey (RAL 7035) and black (RAL 9005) base ensures durability and a professional appearance.

Advantages

High protection ratings (IP66, IP67, IP69K) make it suitable for demanding environments. Two M20 cable entries (top and bottom) allow flexible wiring. Impact resistance IK08 and flammability rating UL94 V-0 enhance safety.

Suitable for

• Industrial control panels
• Machinery and equipment
• Outdoor installations

Key specifications

• Number of command points: 1
• Mounting type: Surface-mounted
• Housing material: Plastic
• Housing colour: Grey (RAL 7035) / Black (RAL 9005) base
• Protection rating: IP66, IP67, IP69K
• NEMA rating: NEMA 4X, 13
• Cable entries: 2 x M20 (top and bottom)
• Operating temperature: -25°C to +70°C
• Impact resistance: IK08
• Flammability rating: UL94 V-0

Recommendations

Ideal for use with Eaton M22 pushbuttons, selector switches, and pilot lights in harsh industrial environments.
