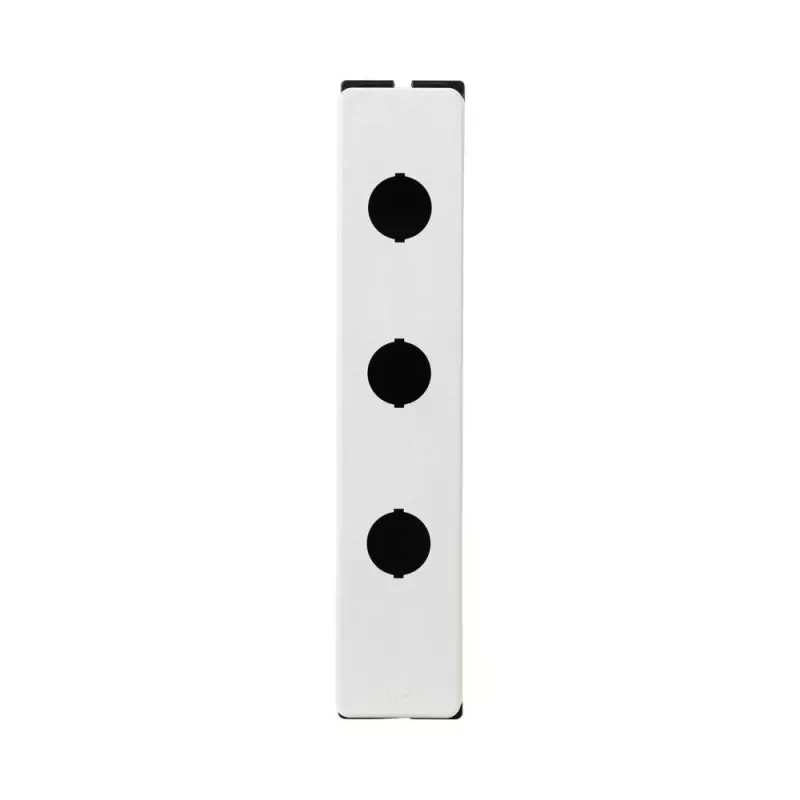

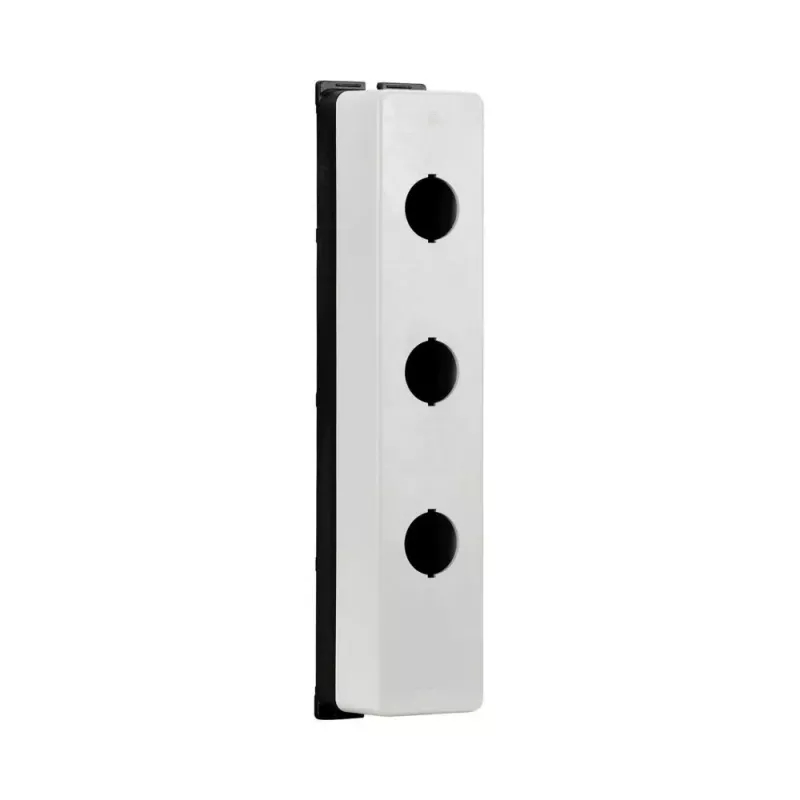

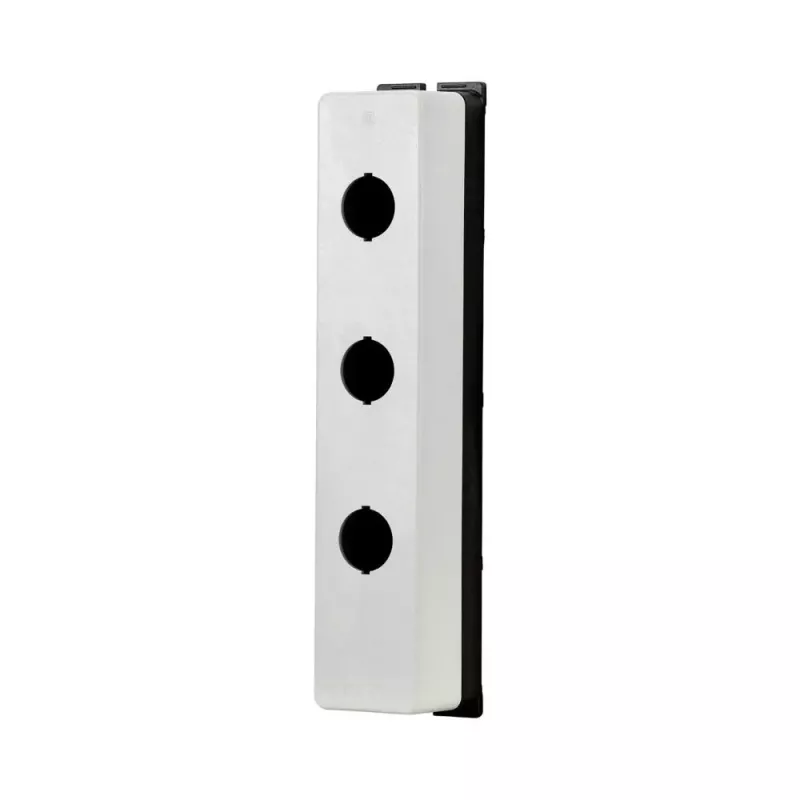

Eaton M22-FI3 Caixa de superfície, 3 posições, plástico cinzento, IP66/IP67/IP69K

The Eaton M22-FI3 surface-mounted enclosure stands out for its rugged, halogen-free plastic construction and high protection ratings, making it suitable for demanding industrial environments where dust, water, and high-pressure cleaning are present. Its three pre-formed knock-out cable entries and compatibility with the Eaton M22 series allow for flexible and secure installation of control devices.

Highlights

• 3-position enclosure for M22 series control devices
• Surface-mounted design with screw mounting
• Grey halogen-free plastic, UL94 V-0 flammability rating
• IP66, IP67, and IP69K protection ratings
• Two knock-out cable entries for M20/M25 glands
• Operating temperature range -25 to +70 °C

In daily use

The M22-FI3 provides a robust housing for pushbuttons, indicator lights, and selector switches in control panels and machinery. Its high IP ratings ensure reliable operation even under washdown conditions, while the halogen-free material reduces toxic emissions in case of fire. The knock-out entries simplify cable routing, and the 22.5 mm front opening accommodates standard M22 actuators.

Full specifications

• Number of positions: 3
• Enclosure type: Surface-mounted enclosure
• Material: Plastic (halogen-free)
• Colour: Grey
• IP protection rating: IP66, IP67, IP69K
• NEMA protection rating: NEMA 4X, 13
• Suitable for device series: Eaton M22
• Cable entry type: Knock-out
• Number of cable entries: 2 x M20/M25
• Operating temperature range: -25 to +70 °C
• Storage temperature range: -40 to +80 °C
• Impact resistance: IK03
• Flammability rating: UL94 V-0
• Mounting method: Screw mounting
• Front plate opening diameter: 22.5 mm

Final note

The Eaton M22-FI3 is a reliable choice for industrial control applications, offering durability, safety, and ease of installation in a compact form factor.
