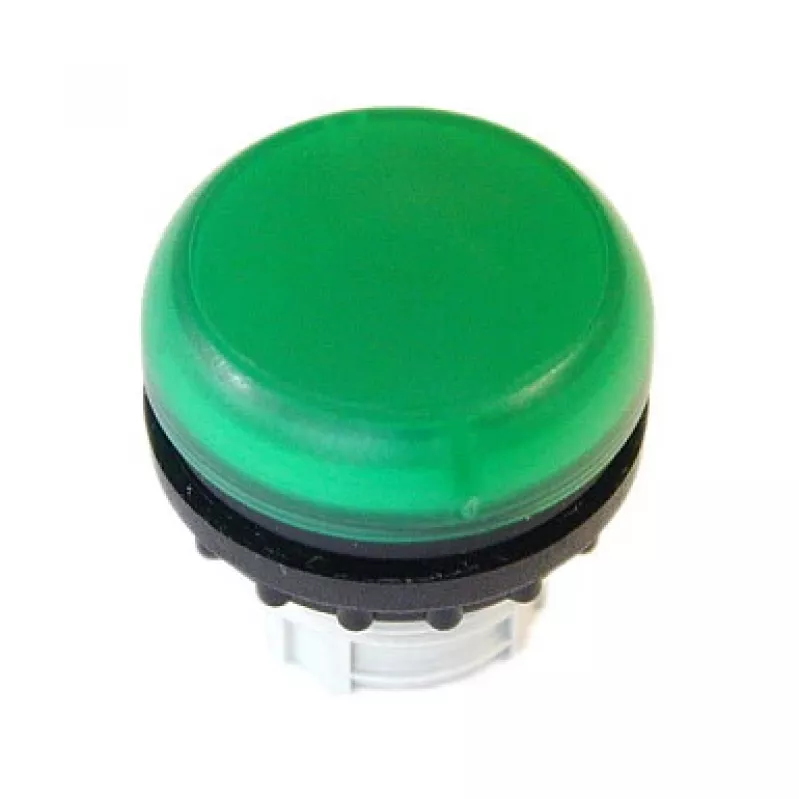

Eaton M22-L-G Parte frontal de luz de sinalização verde plana, 22,5 mm, IP66/IP67/IP69K

Visual status indication is critical in industrial control panels. The Eaton M22-L-G front element delivers a bright, flat green lens that fits seamlessly with the modular M22 series. Built to withstand washdowns and harsh environments, this component ensures your equipment’s operating state is always clear.

Who is it for

This indicator light front element is intended for panel builders, machine manufacturers, and maintenance technicians who need reliable visual signalling on control cabinets, production lines, and process equipment. It is compatible with Eaton M22 lamp holders and LED elements, allowing you to create a custom pilot light that matches your application.

Main features

• Flat green lens for uniform light distribution
• Rugged plastic front bezel with metal mounting ring
• High protection rating: IP66, IP67, and IP69K – ideal for food processing and wet areas
• 22.5 mm standard mounting hole for easy installation
• Wide operating temperature range from -25 °C to +70 °C
• Vibration and shock resistant for demanding industrial use

Specifications

• Mounting hole diameter: 22.5 mm
• Front bezel dimensions (W x H): 29.7 x 29.7 mm
• Overall depth (from panel): approx. 9.5 mm
• Panel thickness range: 1 – 6 mm
• Protection degree (front): IP66, IP67, IP69K
• Protection degree (rear): IP20 (when correctly installed)
• Operating temperature: -25 °C to +70 °C
• Storage temperature: -40 °C to +80 °C
• Approvals: CE, UL, CSA, CCC, EAC
• Compatibility: requires separate M22 lamp holder and LED element

Tips

To complete the pilot light, order an M22 lamp holder and an LED element separately. Then fit the front element onto the holder through a 22.5 mm panel cut-out, tighten the mounting ring and verify the rear seal reaches IP20 after installation. For flush, low-profile signalling in wet or high-pressure washdown areas, the M22-L-G is a dependable choice.
