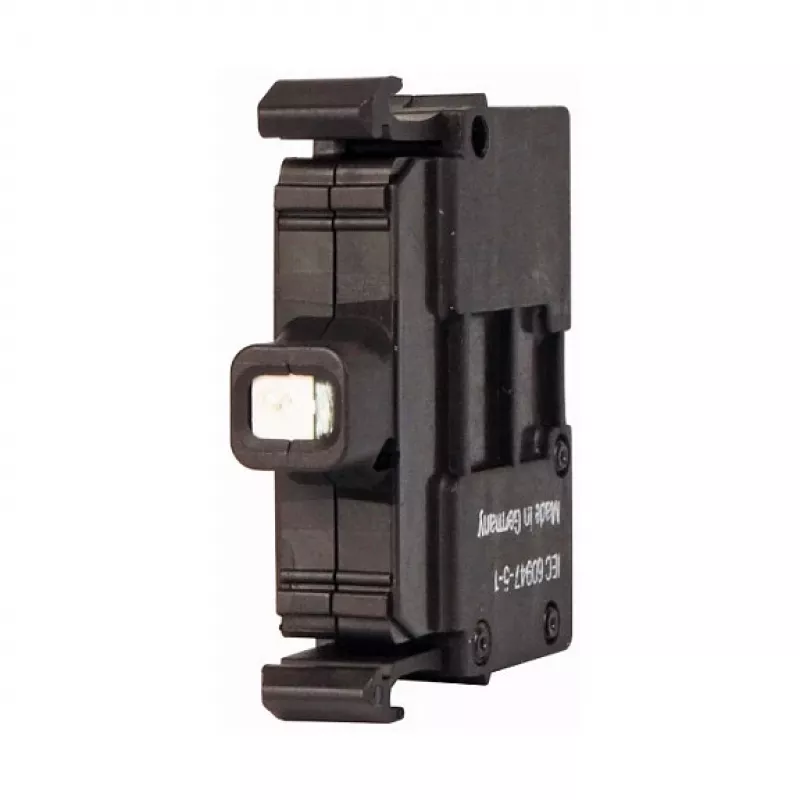

Eaton M22-LED-G elemento indicador LED verde 12-30V AC/DC terminais de parafuso (216559)

The Eaton M22-LED-G is a robust LED indicator element designed for use with Eaton's M22 series control units. This front-mounting pilot light delivers a bright green signal with exceptional energy efficiency and a lifespan exceeding 100,000 hours, making it a reliable choice for industrial control panels and machinery.

Advantages

With a wide supply voltage range of 12 to 30 V AC/DC, the M22-LED-G offers flexibility across various control systems. Its screw terminal connections ensure secure and straightforward wiring, while the IP20 protection rating on the terminals safeguards against accidental contact. The LED technology provides low power consumption and virtually maintenance-free operation, even in demanding environments.

Suitable for

• Control cabinets and switchgear
• Machinery and plant engineering
• Process automation and monitoring systems
• Any application requiring a compact, durable status indicator

Key specifications

• Product type: LED indicator element
• LED colour: Green
• Supply voltage: 12 - 30 V AC/DC
• Connection type: Screw terminals (2 terminals)
• Mounting type: Front mounting
• Protection rating (terminals): IP20
• Operating temperature: -25 °C to +70 °C
• Storage temperature: -40 °C to +80 °C
• Rated impulse withstand voltage: 4000 V AC
• Rated insulation voltage: 300 V AC
• Housing material: Plastic (black)
• Certifications: CE, UL, CSA

Recommendations

For optimal performance, ensure that the operating voltage is within the specified range and that the screw terminals are tightened to the recommended torque. When integrating with M22 control units, follow the standard installation procedures to maintain IP20 protection and reliable operation.
