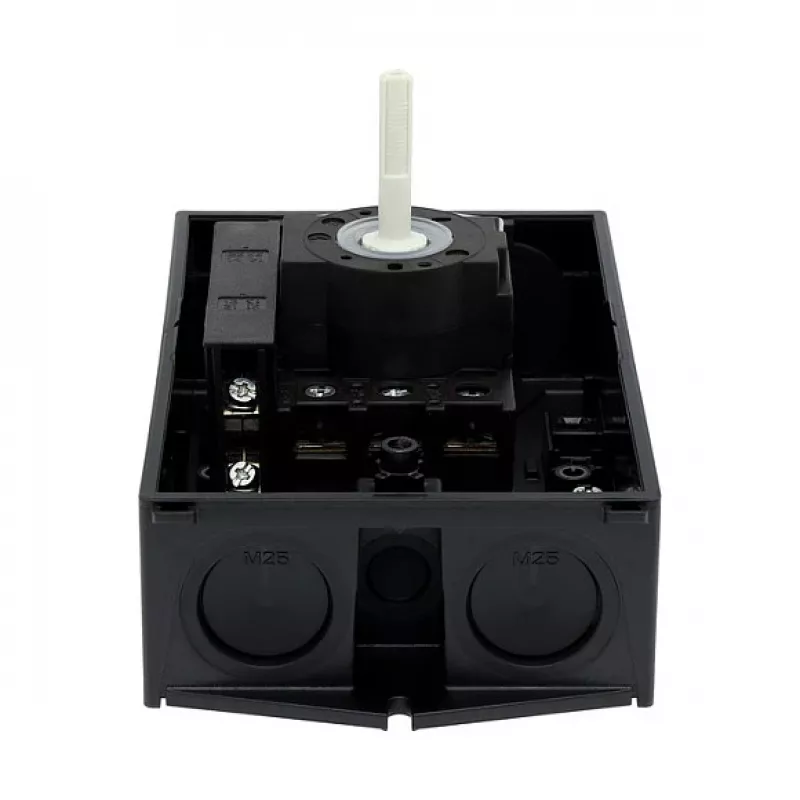

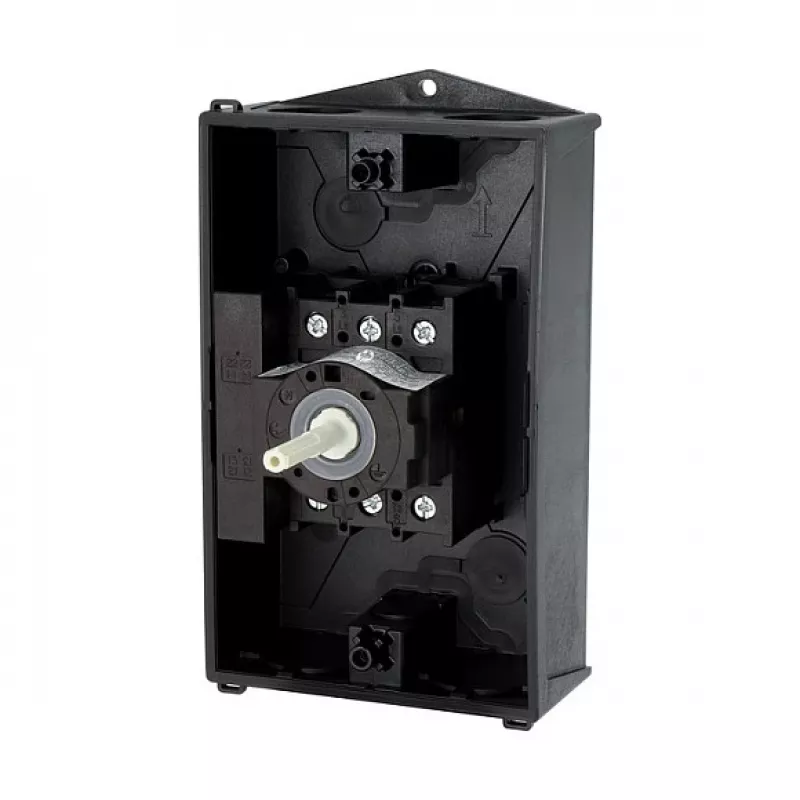

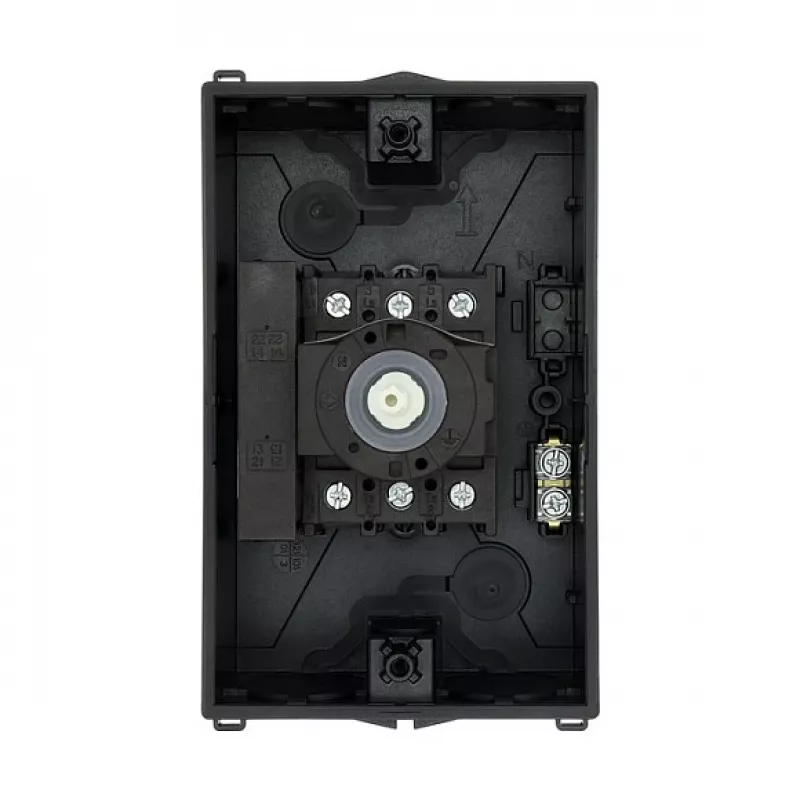

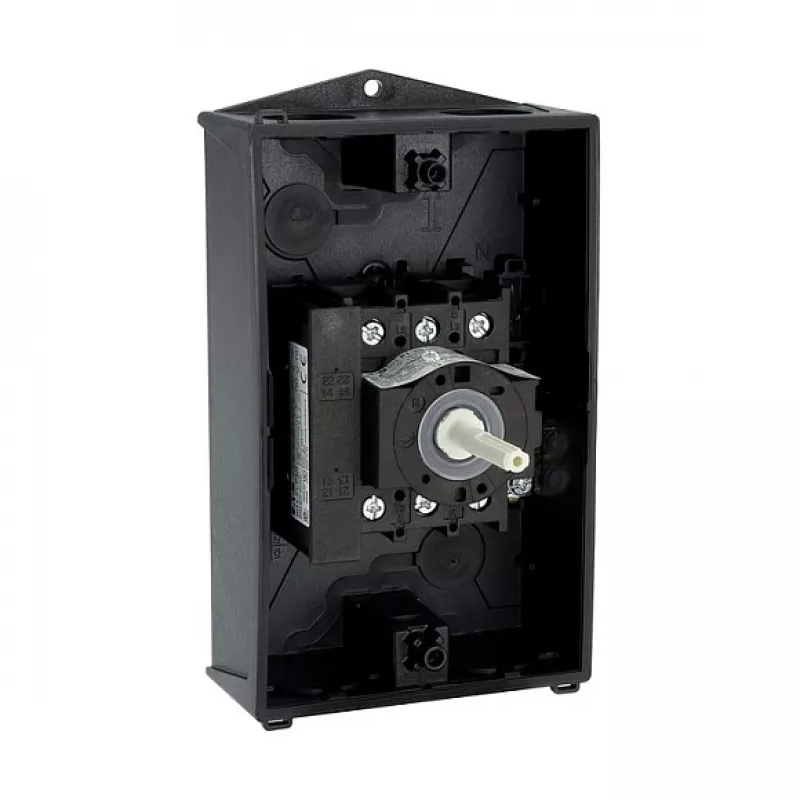

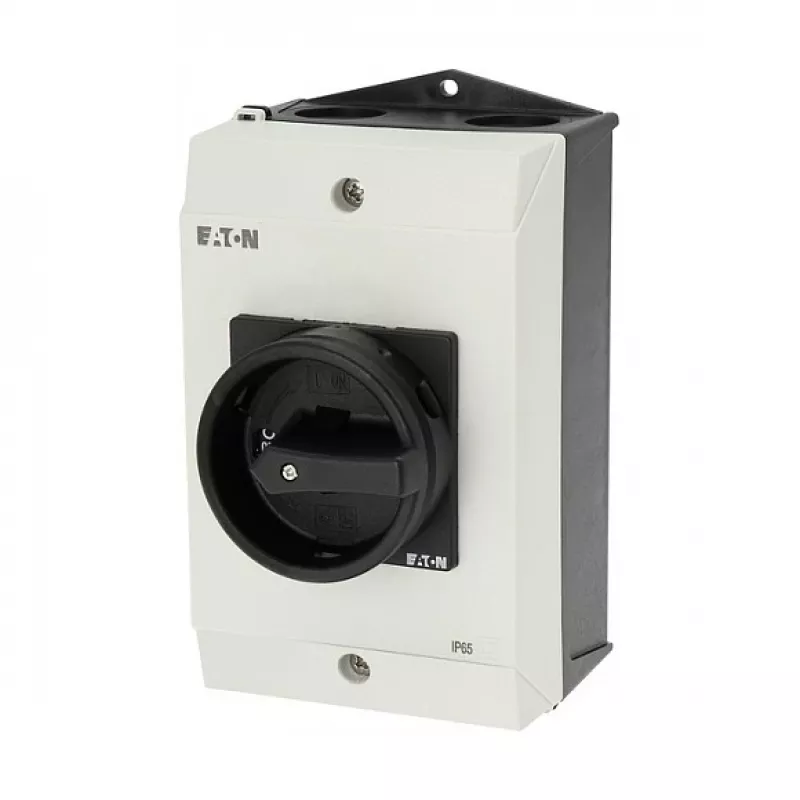

Eaton P1-25/I2/SVB-SW/HI11 Interruptor principal de 3 polos 25A montagem saliente Preto/Branco

Main switch with 3-pole configuration and 25 A rated current, delivering reliable circuit isolation in a compact surface-mount design. The P1-25/I2/SVB-SW/HI11 combines a black handle with a white front plate for clear visual status and integrates a lockable OFF position to support safe maintenance procedures.

Advantages

This switch offers robust performance with an IP65-rated front, making it suitable for environments where dust and water ingress must be prevented. The screw terminals provide secure wiring, while the 90° switching angle ensures a decisive ON-OFF action. Its lockable OFF position (padlock not included) enhances safety during service or repair tasks.

Suitable for

• Industrial control panels requiring a main disconnect switch
• Machine building and automation systems
• HVAC and pump installations
• Distribution boards in commercial buildings
• Any application needing a reliable 25 A 3-pole isolator

Key specifications

• Switch type: Main switch / Disconnect switch
• Number of poles: 3
• Rated operational current (Ie): 25 A (AC-21A, 400V)
• Rated insulation voltage (Ui): 690 V
• Rated operational voltage (Ue): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Mounting type: Surface mounting
• Handle colour: Black
• Front plate colour: White
• Degree of protection (front): IP65
• Degree of protection (terminals): IP20
• Switching angle: 90°
• Switching function: ON-OFF
• Lockability: Lockable in OFF position (padlock not included)
• Terminal type: Screw terminals
• Standards: IEC/EN 60947, VDE 0660
• Rated short-circuit making capacity (Icm): 0.8 kA
• Rated short-time withstand current (Icw): 0.5 kA (1s)

Recommendations

For optimal safety and compliance, install this switch in an enclosure that maintains the IP65 rating on the front and provides adequate protection for the terminals. Use a suitable padlock to lock the switch in the OFF position during maintenance. Verify that the connected load does not exceed 25 A and that the supply voltage is within the rated 690 V.
