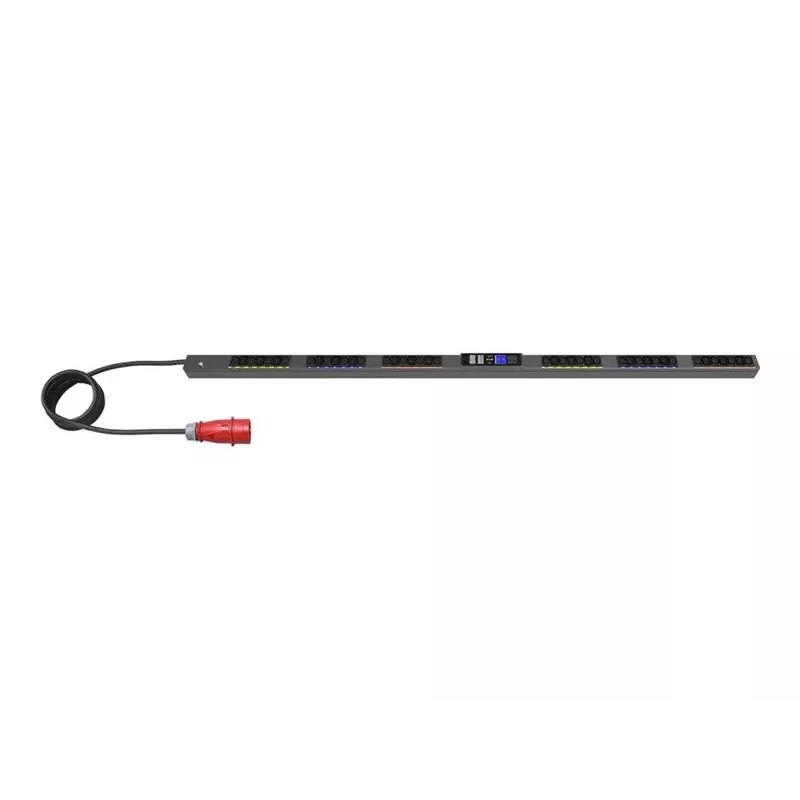

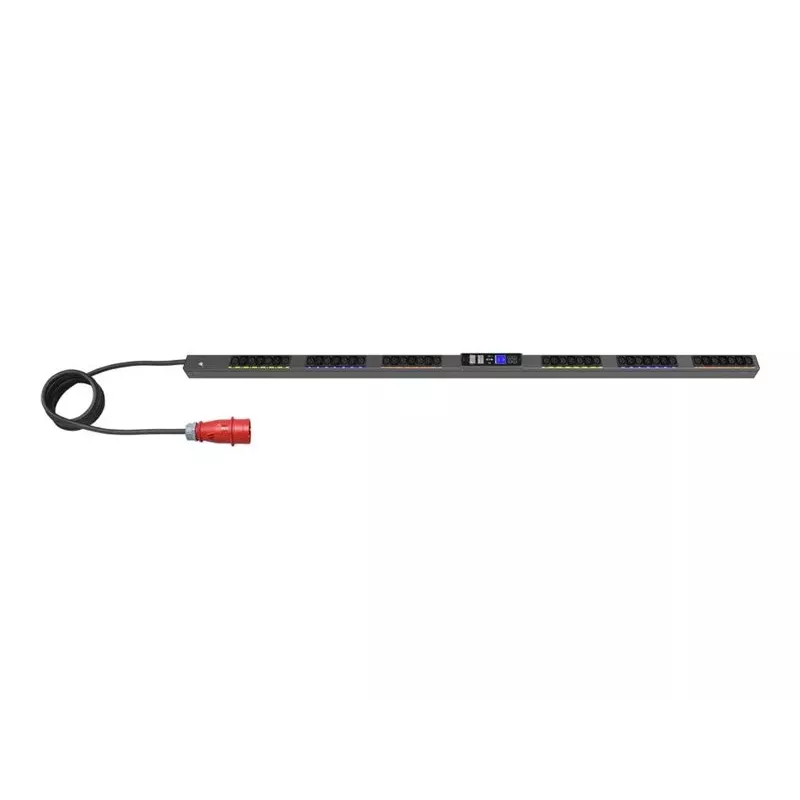

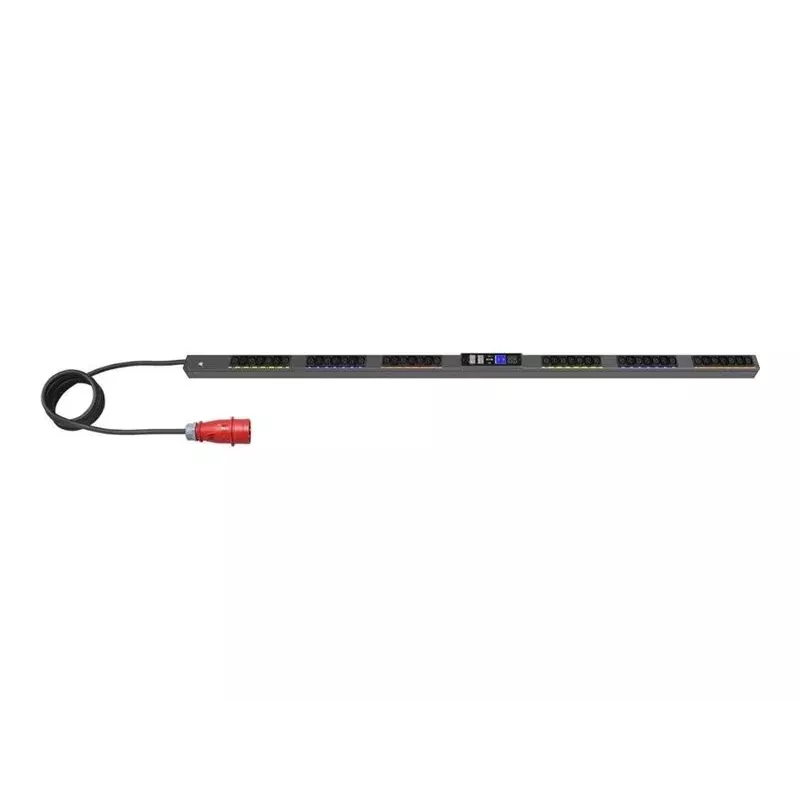

EATON PDU G4 Managed Input 0U 309 16A Trifásica 24xC13 18xC19 PDU vertical para rack

The Eaton PDU G4 Managed Input is a high-performance 0U vertical rackmount power distribution unit designed for data centers and network cabinets requiring reliable 3-phase power distribution. With a 16A input current and 400V AC 3-phase Wye configuration, this PDU delivers up to 11 kVA of power capacity. It features 24 x IEC C13 and 18 x IEC C19 outlets, providing a total of 42 output receptacles for mixed equipment connectivity. The managed input capabilities include input-level metering for voltage, current, power, energy, power factor, and frequency, accessible via the high-resolution color LCD display or through the integrated RJ45 Ethernet port supporting SNMP, HTTP/HTTPS, SSH, Telnet, Modbus TCP, and BACnet IP protocols. The PDU supports daisy chaining up to 8 units and includes a 3-meter input cable with an IEC 60309 16A 3P+N+E red 5-pin plug. Tool-less button mounting simplifies vertical rack installation. Optional environmental sensors (temperature, humidity, dry contact) can be added for enhanced monitoring. Operating temperature range is 0°C to 60°C. Certifications include CE, UL, cUL, and RoHS.

Advantages

This Eaton PDU G4 Managed Input offers precise power monitoring and management for critical IT equipment. Its 0U form factor saves valuable rack space, while the tool-less mounting allows for quick deployment. The daisy chain capability reduces network cabling, and the comprehensive protocol support ensures seamless integration into existing management systems. The high total outlet count (42) accommodates dense server environments, and the 3-phase input provides balanced power distribution.

Suitable for

• Data centers requiring 3-phase power distribution with per-outlet monitoring
• Network cabinets with high-density server or networking equipment
• Facilities needing remote power management and environmental monitoring
• Applications demanding compliance with CE, UL, and RoHS standards

Key specifications

• PDU Type: Managed Input
• Form Factor: 0U Vertical Rackmount
• Input Voltage: 400V AC (3-Phase Wye)
• Input Current: 16A
• Input Plug: IEC 60309 16A 3P+N+E (Red, 5-pin)
• Output Receptacles: 24 x IEC C13, 18 x IEC C19
• Total Outlets: 42
• Power Capacity: 11 kVA
• Metering: Input-level (V, A, kW, kWh, PF, Frequency)
• Network Interface: 1 x RJ45 Ethernet
• Management Protocols: SNMP v1/v2c/v3, HTTP/HTTPS, SSH, Telnet, Modbus TCP, BACnet IP
• Local Display: High-resolution color LCD
• Environmental Monitoring: Supports optional sensors (temp, humidity, dry contact)
• Daisy Chain: Yes, up to 8 PDUs
• Input Cable Length: 3 meters
• Mounting: Tool-less button mounting
• Operating Temperature: 0°C to 60°C
• Certifications: CE, UL, cUL, RoHS

Recommendations

For optimal performance, pair this PDU with Eaton's environmental sensors and use the included network management software for comprehensive monitoring. Ensure the input circuit breaker is rated appropriately for 16A 3-phase supply.
