DIGITUS PDU de alumínio 1U, montagem em rack, 8x CEE 7/5 potência nominal: 16A, 4000W, 250VAC 50/60Hz,

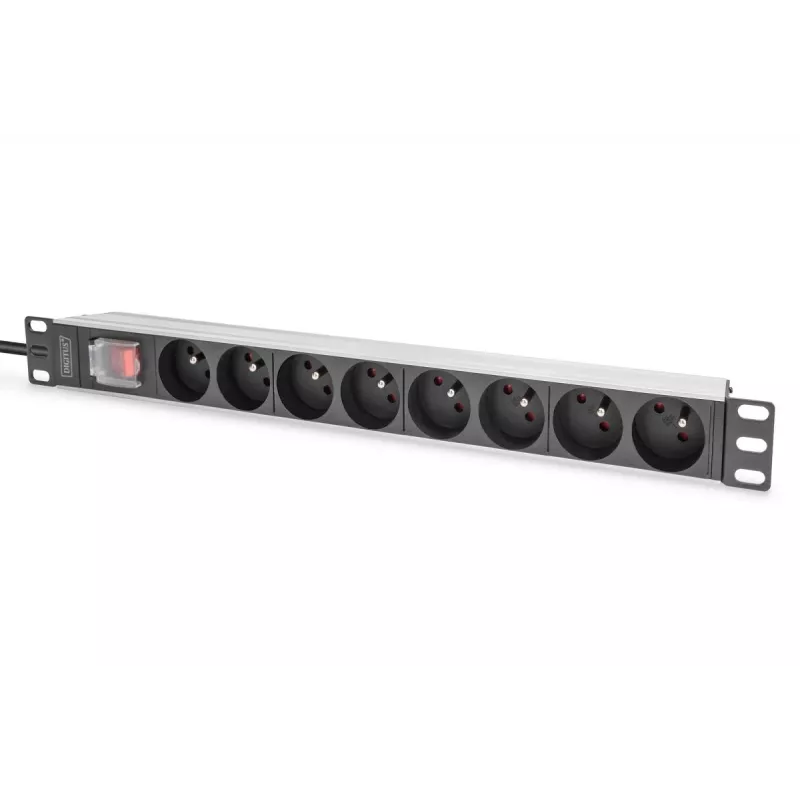

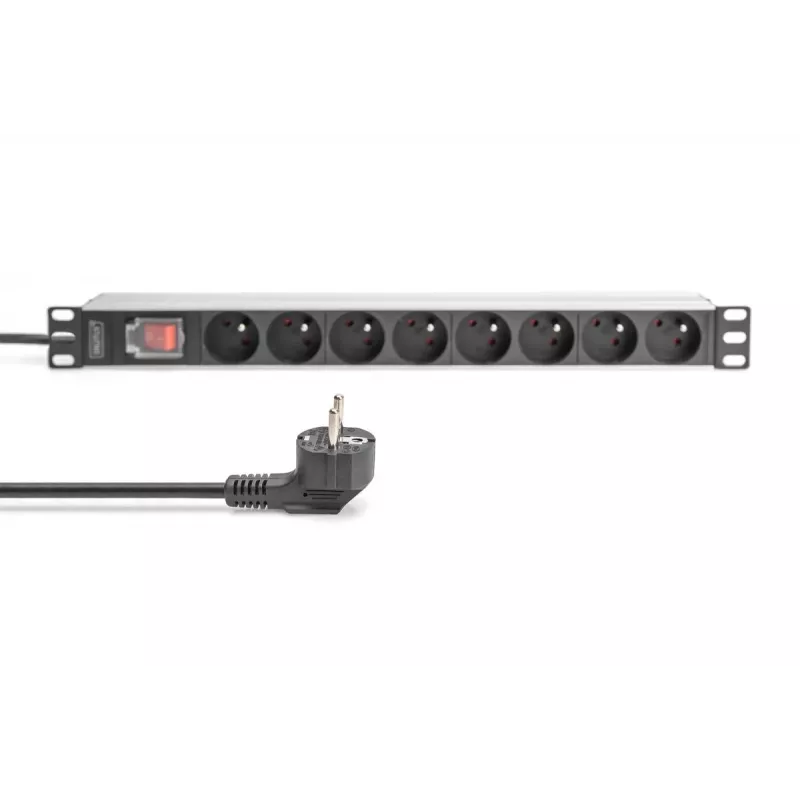

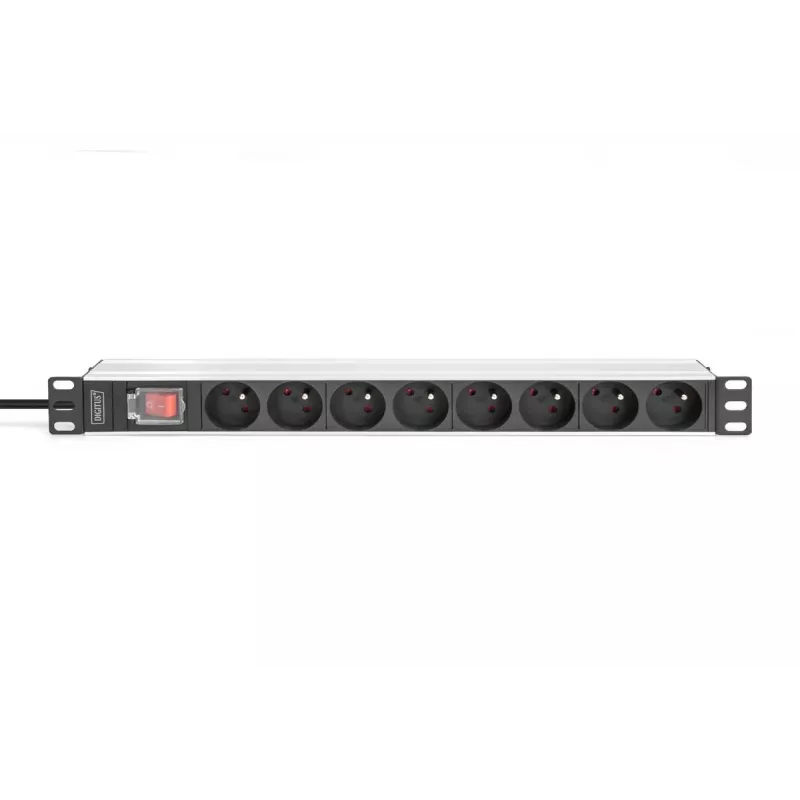

The DIGITUS Socket strip with aluminum profile and switch is a 19"-compatible PDU designed for safe and professional power distribution in server racks, network cabinets and similar housings. It provides eight AC outlets and comes with a 2 m cable. The device supports a nominal input voltage of 230 V and a maximum current of 16 A, and its aluminum housing and rotatable sockets help with space management inside 482.6 mm (19") cabinets.

Advantages

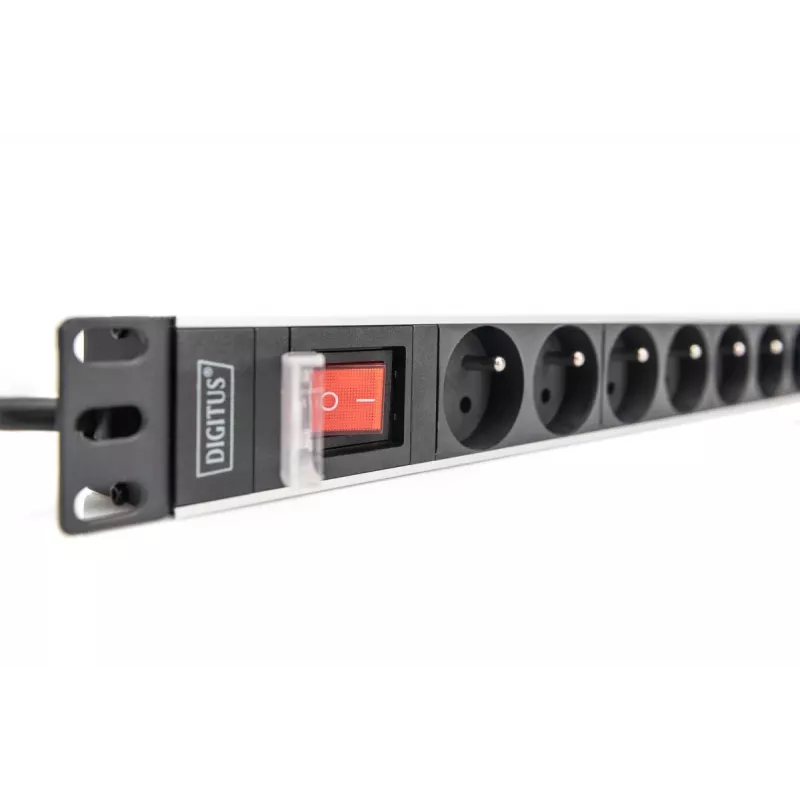

The power strip offers a doubly grounded safety plug for increased protection and an illuminated switch that is guarded against accidental switching. Sockets can be rotated by up to 35° to improve cable routing and access. The aluminum profile ensures a durable, lightweight construction suitable for horizontal or vertical mounting in standard 19" racks.

Suitable for

• Server racks and network cabinets (482.6 mm / 19")
• IT and network equipment power distribution
• Laboratories and technical workstations
• Home offices and small office setups

Key specifications

• Brand: DIGITUS
• Model / MPN: DN-95402-1-FR
• EAN: 4016032481959
• AC outlets: 8
• Nominal input voltage: 230 V
• Maximum current: 16 A
• Cable length: 2 m
• Weight: 0.86 kg
• Housing: aluminum profile

How to use

Mount the socket strip horizontally or vertically inside a 482.6 mm (19") housing using appropriate mounting points or brackets. Connect the device to a 230 V mains outlet using the integrated 2 m cable with the doubly grounded safety plug. Plug equipment into the eight AC outlets, orienting rotated sockets as needed for better cable routing. Use the illuminated switch to turn power on or off; the guard prevents inadvertent shutdown.

Recommendations

Do not exceed the maximum current rating of 16 A. Ensure that the total connected load and individual device requirements are within the PDU limits. Install in compliance with local electrical codes and, if necessary, have installation performed by a qualified technician.
