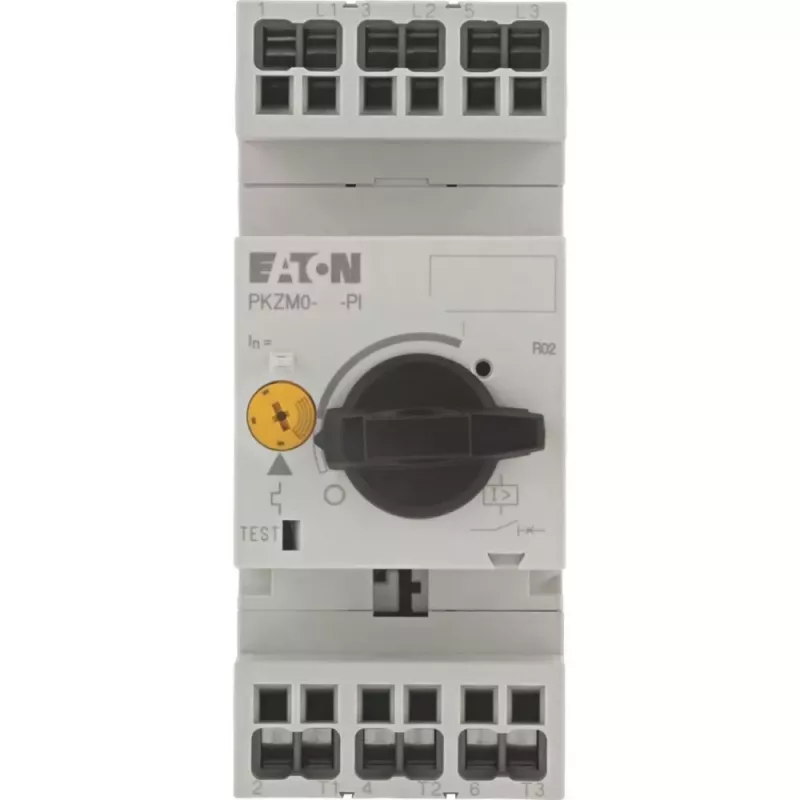

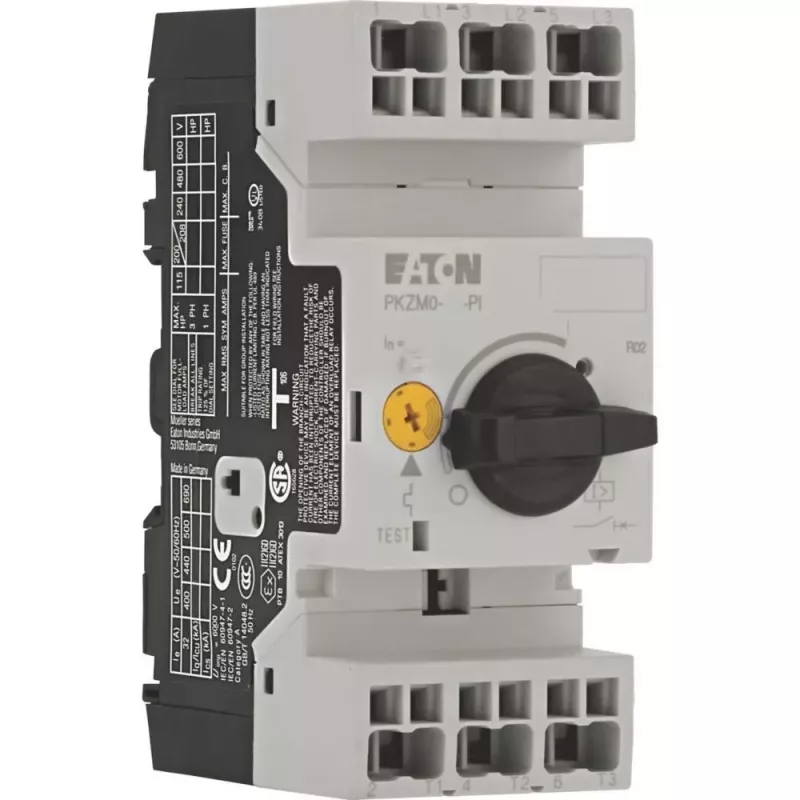

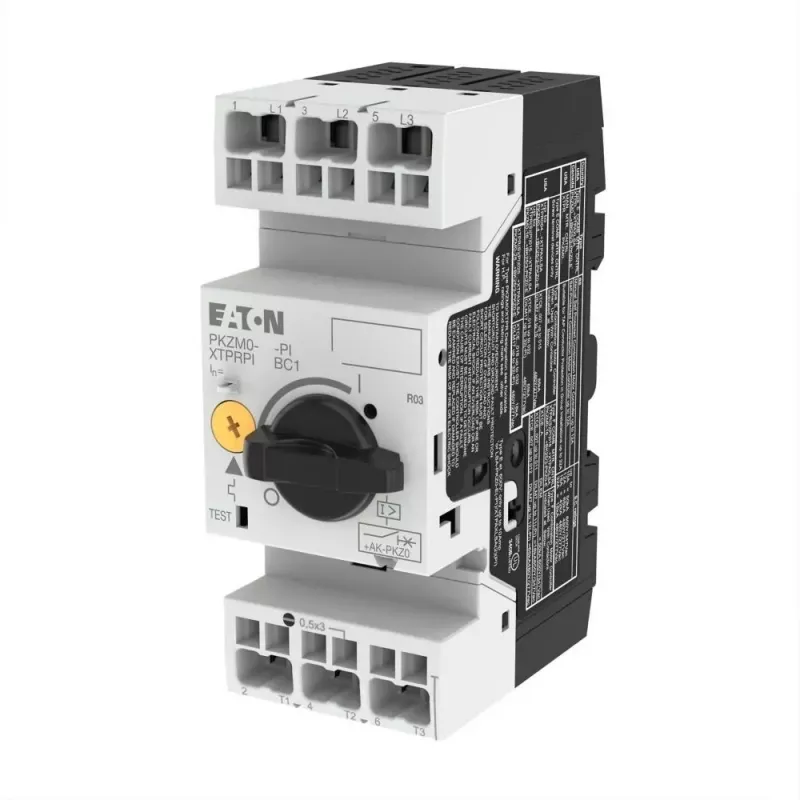

Eaton PKZM0-0.16-PI Disjuntor de proteção de motor, 3 polos, 0,1-0,16 A, térmico-magnético, calha DIN 199148

Protect motors from overloads and short circuits with the Eaton PKZM0-0.16-PI motor protective circuit breaker. This 3-pole device offers precise thermal-magnetic protection for motors with rated currents up to 0.16 A, preventing damage and downtime in industrial control panels.

Who is it for

Electrical engineers, panel builders, and maintenance technicians who need reliable motor protection in compact installations. Ideal for small motors, pumps, fans, and conveyor systems where space is limited and safety is critical.

Main features

• Adjustable overload release from 0.1 A to 0.16 A for precise motor protection
• Fixed short-circuit release at approximately 14 times the maximum setting (2.24 A) for rapid fault clearing
• High breaking capacity up to 100 kA at 400 V AC ensures safety in demanding applications
• Compact 45 mm width saves space on DIN rail
• IP20 front protection with screw terminals for secure wiring
• Ambient operating temperature range from -25 °C to +55 °C for harsh environments

Specifications

• Series: PKZM0
• Number of poles: 3
• Overload release setting range: 0.1 - 0.16 A
• Rated operational current (Ie): 0.16 A
• Rated operational voltage (Ue): up to 690 V AC
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Rated short-circuit breaking capacity (Icu) at 400 V: 100 kA
• Rated short-circuit breaking capacity (Icu) at 690 V: 6 kA
• Tripping characteristic: thermal-magnetic
• Mounting type: DIN rail (EN 60715) or screw fixing
• Protection degree: IP20 (front), IP00 (terminals)
• Terminal type: screw terminals
• Max. terminal capacity (solid): 1 x 6 mm² or 2 x 2.5 mm²
• Standards: IEC/EN 60947-4-1, VDE 0660

Tips

Set the overload release to match the motor's full-load current as indicated on its nameplate. Always verify short-circuit conditions at the installation point to ensure the breaker's breaking capacity is sufficient.
