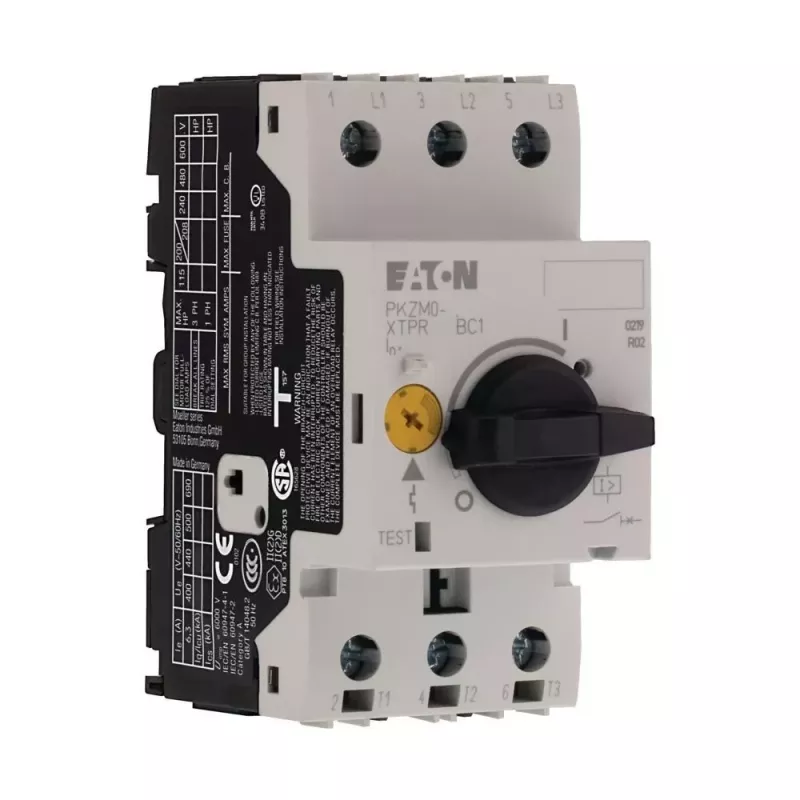

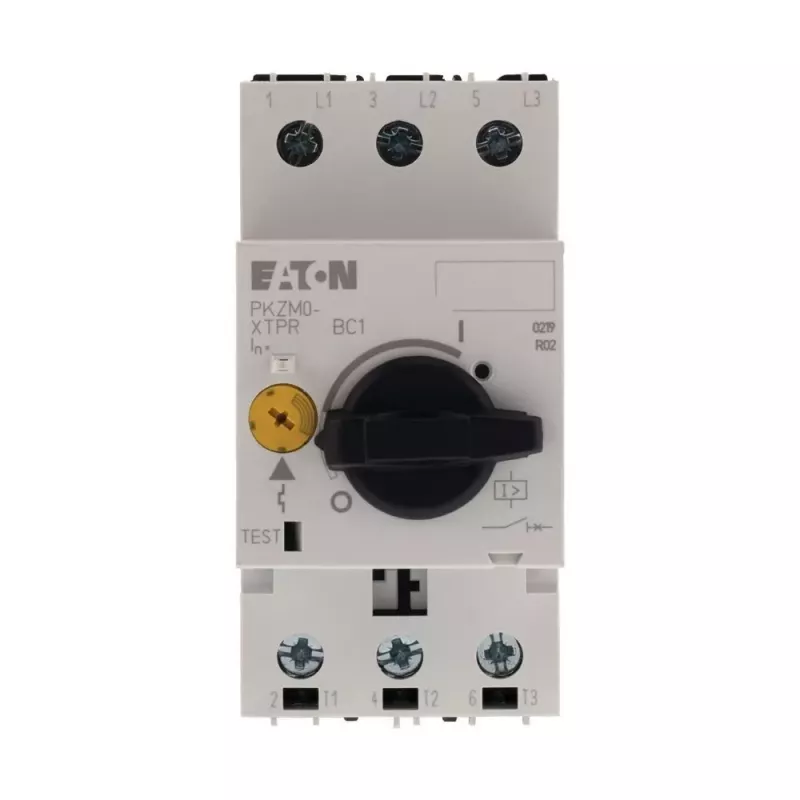

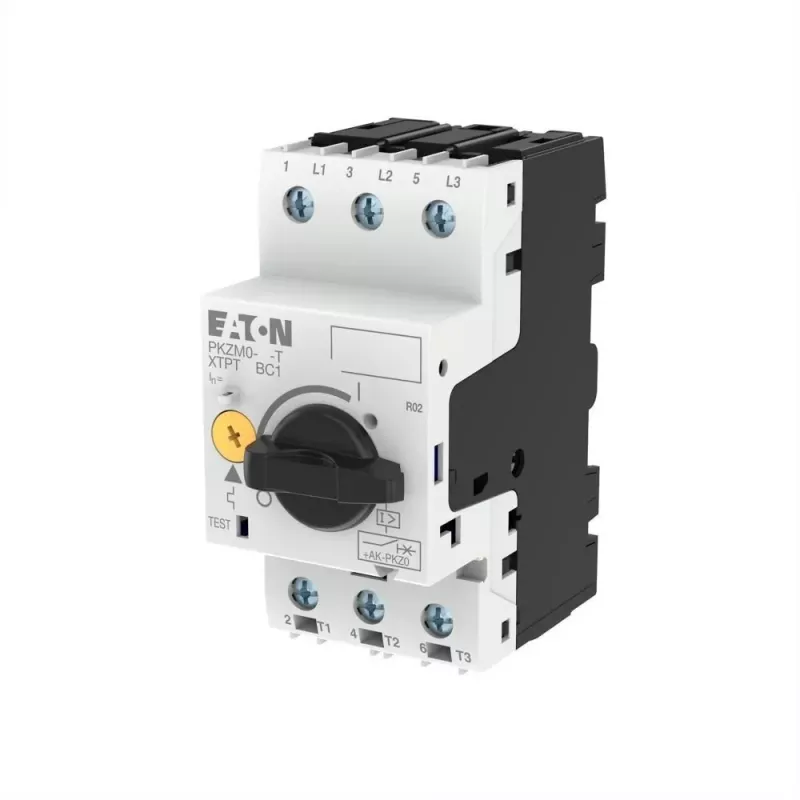

Eaton PKZM0-1.6-T Disjuntor de proteção de transformador, 3 polos, 1,0-1,6 A, manípulo rotativo 088912

Transformer protection circuit breaker with thermal overload and magnetic short-circuit release, rated up to 1.6 A. The PKZM0-1.6-T safeguards transformers against overloads and short circuits with a precise adjustable trip range from 1.0 to 1.6 A and a magnetic release at approximately 20 times the rated current.

Advantages

Manual rotary handle operation allows clear ON/OFF switching and status indication. Screw terminals ensure secure wiring, while DIN rail mounting simplifies installation in control panels. The 3-pole design provides complete isolation and protection for three-phase transformer circuits.

Suitable for

• Protection of control transformers in industrial machinery
• Three-phase transformer circuits requiring thermal and magnetic protection
• DIN rail mounted applications with manual operation

Key specifications

• Number of poles: 3
• Rated operational current: 1.6 A
• Overload release setting range: 1.0 – 1.6 A
• Rated operational voltage: 690 V AC
• Rated impulse withstand voltage: 6 kV
• Rated short-circuit breaking capacity at 400 V: 50 kA
• Magnetic short-circuit release level: approximately 20 × Ie
• Type of actuation: rotary handle
• Mounting type: DIN rail (top hat rail)
• Connection type: screw terminals
• Degree of protection: IP20
• Ambient operating temperature: -25 to +55 °C
• Overload release type: thermal
• Short-circuit release type: magnetic
• Standards compliance: IEC/EN 60947-4-1, VDE 0660 Part 102
• Series: PKZM0

Recommendations

Ideal for transformer protection in industrial control panels where manual operation and reliable thermal-magnetic tripping are required. Verify the transformer inrush current to ensure the magnetic release setting avoids nuisance tripping.
