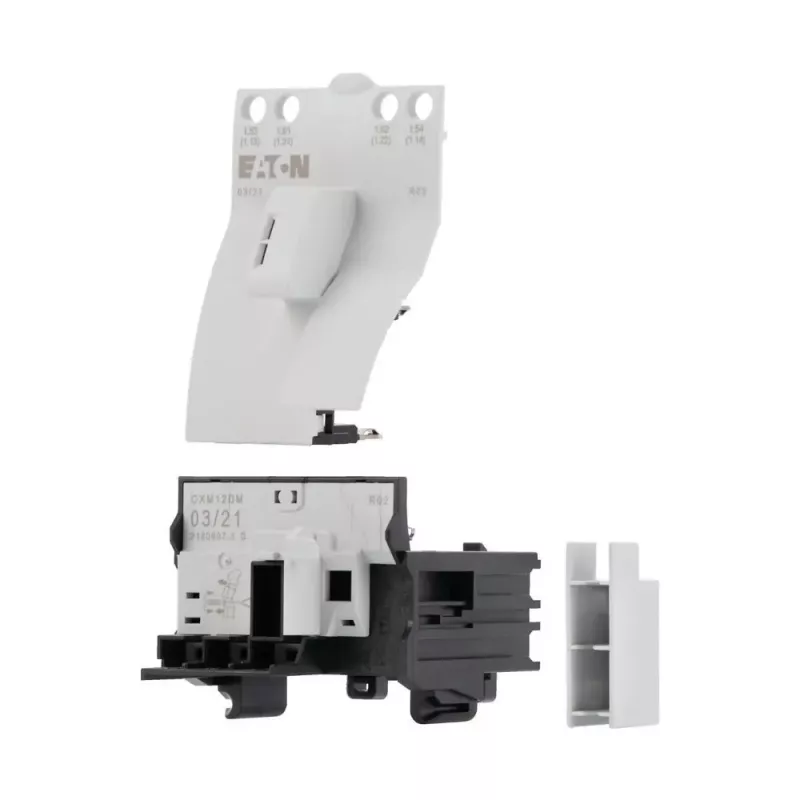

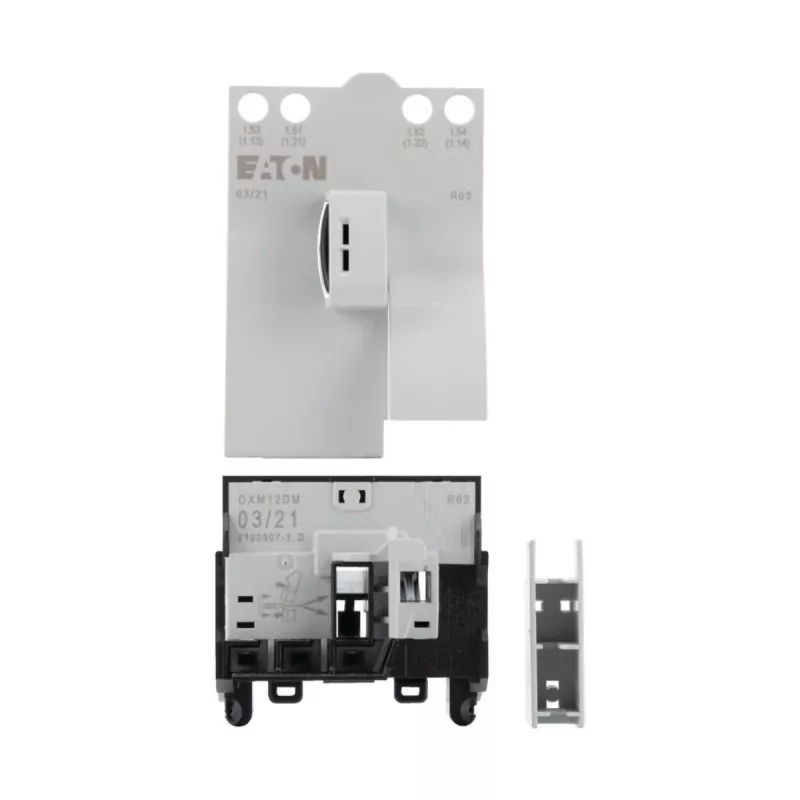

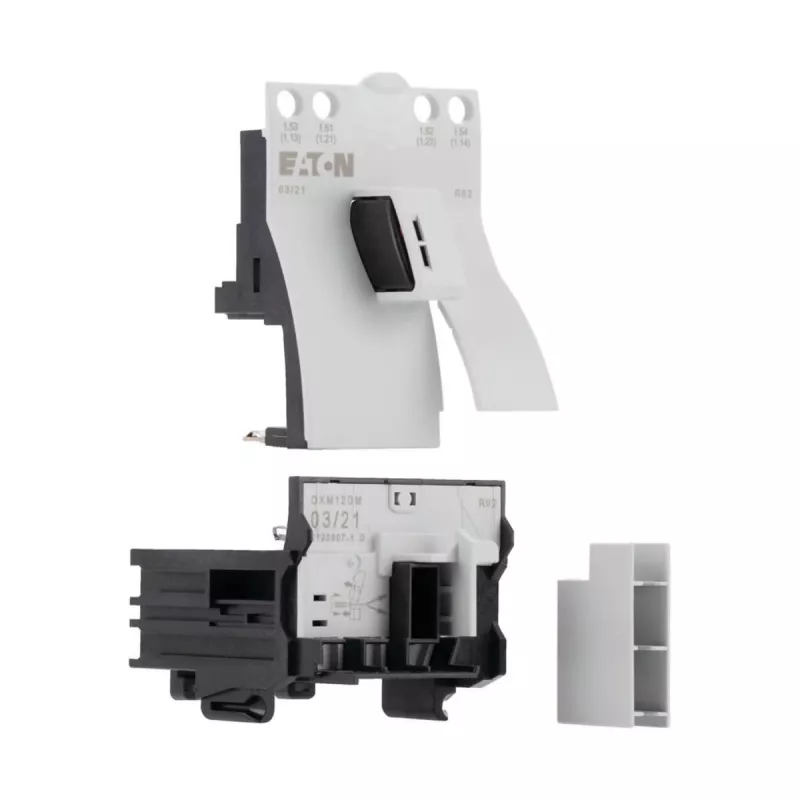

Eaton PKZM0-XDM12 conjunto de cablagem de arrancador direto para contactores DILM7-DILM12 283149

Connect Eaton PKZM0 motor-protective circuit breakers to DILM7, DILM9, or DILM12 contactors with this direct-mount wiring set, rated for 12 A and 690 V in AC-3 duty.

Overview

The Eaton PKZM0-XDM12 is a 3-pole connection module that mechanically and electrically links a PKZM0 motor-protective circuit breaker to a DILM contactor, forming a compact direct starter without additional wiring. It mounts on the front side of the devices and is designed for use in motor starter assemblies up to 12 A and 690 V.

What stands out

• Direct mechanical and electrical connection between PKZM0 and DILM7/9/12
• Rated for combined starter operation up to 12 A (AC-3) and 690 V
• 3-pole design for three-phase motor circuits
• Front-side mounting for easy installation

Technical details

• Product type: Wiring set / connection module
• Application: Direct starter assembly
• Compatible circuit breaker series: Eaton PKZM0
• Compatible contactor series: Eaton DILM (models DILM7, DILM9, DILM12)
• Number of poles: 3
• Max. rated operational current (AC-3): 12 A
• Max. rated operational voltage: 690 V
• Mounting position: Front-side
• Series: PKZM0-XDM
• Standards: IEC/EN 60947

Our verdict

A straightforward, reliable way to build a direct starter from Eaton components, saving panel space and wiring time.
