EFB Elektronik A-DQ(ZN)B2Y 24E 9/125µ G657.A1 PE preto

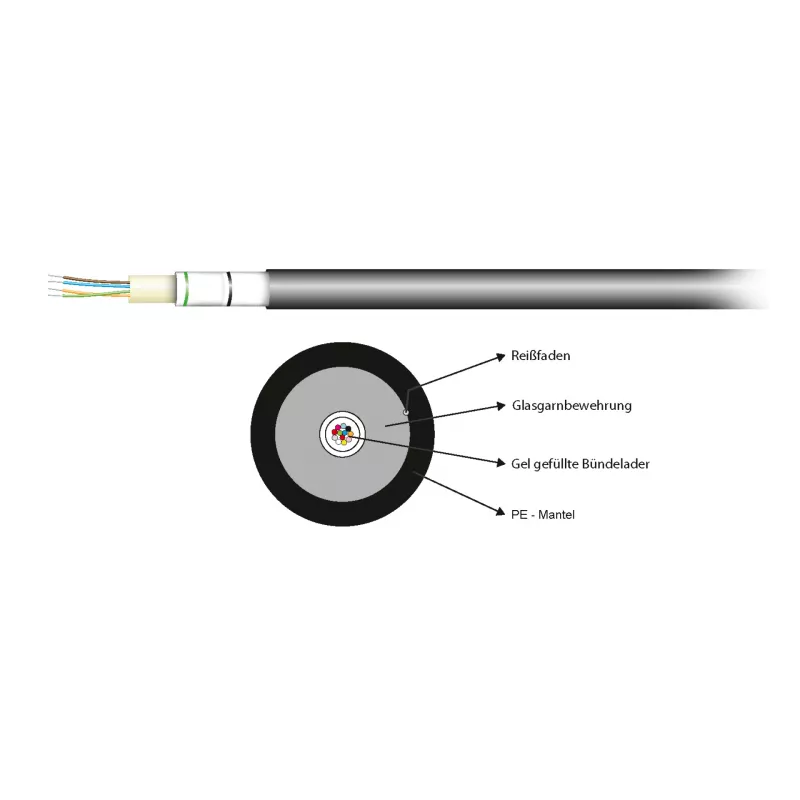

The EFB Elektronik A-DQ(ZN)B2Y 24E 9/125µ G657.A1 PE is a high-quality single-mode fibre optic cable designed for professional indoor and outdoor installations. With 24 fibres and a robust PE outer sheath, this cable ensures reliable data transmission over long distances. It is ideal for backbone cabling, data centres, and telecommunication networks.

Advantages

This cable offers low attenuation and high bandwidth, supporting high-speed data rates. The G.657.A1 fibre bend radius is improved, allowing for tighter installations without signal loss. The PE jacket provides excellent protection against moisture and mechanical stress, making it suitable for outdoor use.

Suitable for

• Fibre optic backbone networks
• Data centre infrastructure
• Telecommunication systems
• LAN and WAN connections

Key specifications

• Fibre type: Single-mode 9/125 µm
• Fibre grade: G.657.A1
• Number of fibres: 24
• Jacket material: PE (Polyethylene)
• Colour: Black
• Attenuation: Low (typical 0.35 dB/km at 1310 nm, 0.22 dB/km at 1550 nm)
• Bending radius: Dynamic 20x cable diameter, Static 10x cable diameter
• Operating temperature: -40°C to +70°C

Recommendations

For optimal performance, use with appropriate connectors and splicing equipment. Ensure proper cable management to maintain bend radius specifications.
