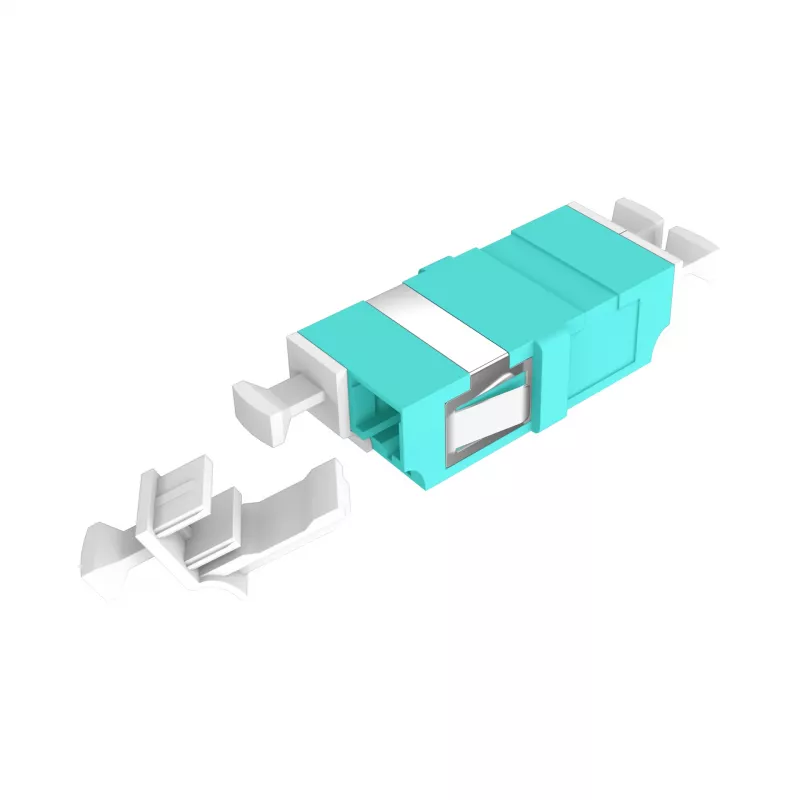

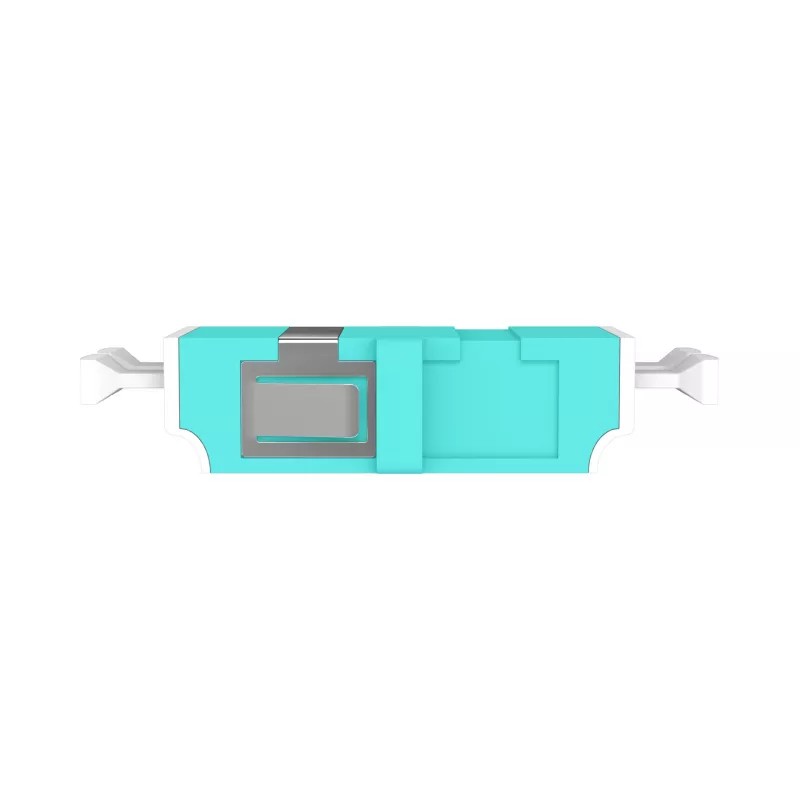

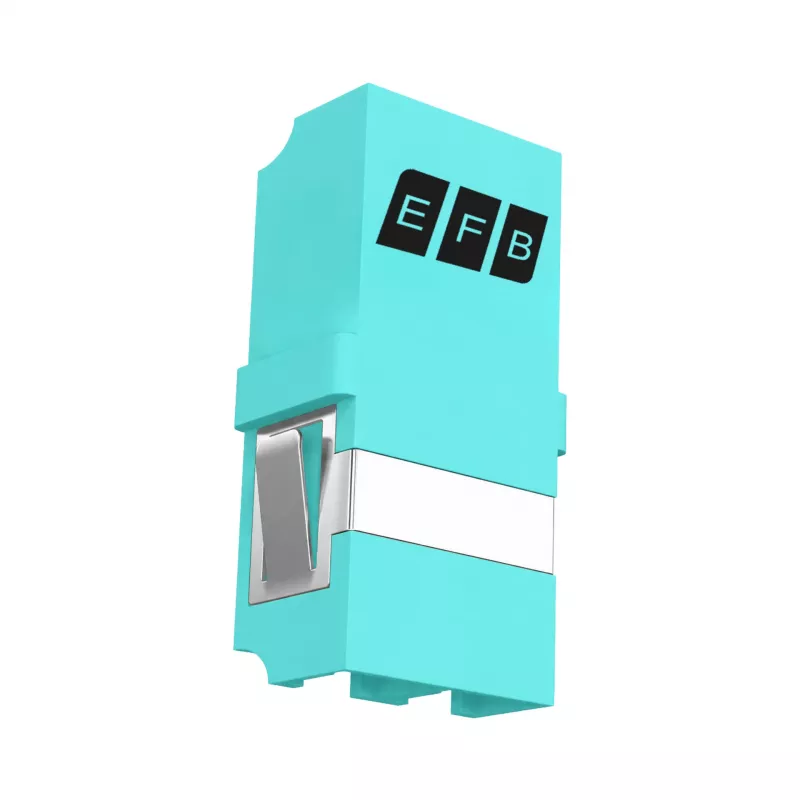

EFB Elektronik acoplador de fibra ótica LC Duplex OM3 multimodo, sem flange, aqua, casquilho de cerâmica

Fiber optic adapter with LC Duplex interface on both sides, delivering low-loss OM3 multimode connectivity for high-speed networks. Its one-piece flangeless design and ceramic alignment sleeves ensure precise mating and consistent performance in dense patching environments.

Advantages

Ceramic sleeves provide superior alignment and durability, achieving insertion loss below 0.2 dB and return loss over 30 dB. The aqua housing follows industry colour coding for OM3, simplifying identification. Flangeless construction allows clean panel mounting without protruding flanges, saving space and enabling high-density installations.

Suitable for

• Data centre backbone and horizontal cabling
• LAN and SAN infrastructure
• Telecommunications distribution frames
• 10G Ethernet and fibre channel links

Key specifications

• Connector type: LC Duplex (both sides)
• Fibre mode: Multimode OM3
• Sleeve material: Ceramic
• Housing material: PBT
• Colour: Aqua
• Mounting: Flangeless panel mount
• Insertion loss: < 0.2 dB typical
• Return loss: > 30 dB typical
• Operating temperature: -20°C to +70°C
• Mating cycles: > 500
• Standards: IEC 61754-20, TIA/EIA-604-10

Recommendations

For optimal performance, pair with OM3 or higher grade LC patch cords and ensure proper cleaning of connector end faces before mating. Use in controlled environments to maintain specified temperature range.
