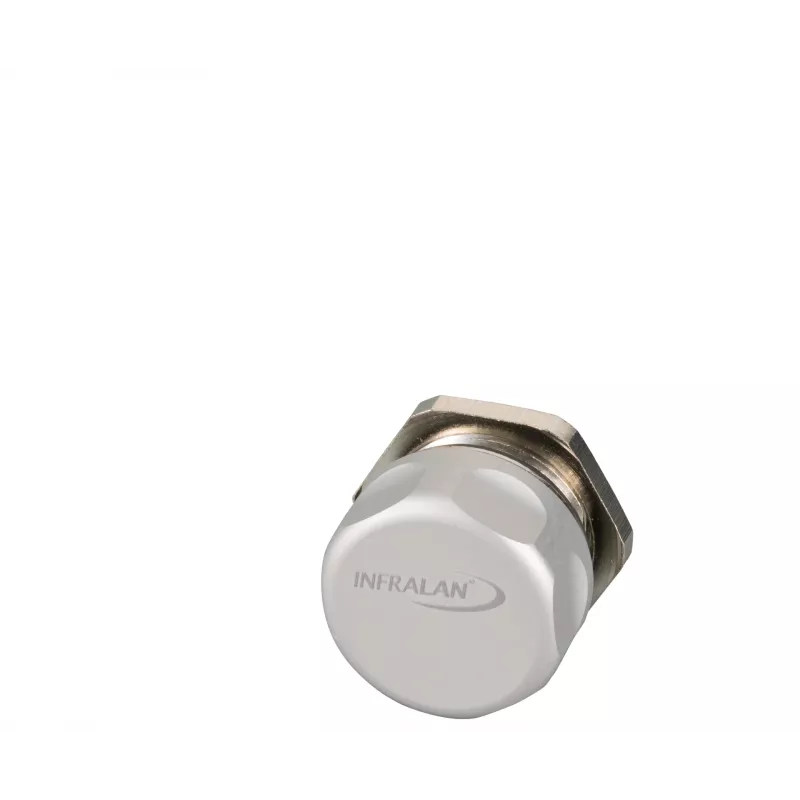

EFB Elektronik Acoplador de passagem HDMI IP67, tipo A fêmea / tipo A fêmea, Service-Port

The EFB Elektronik HDMI IP67 Feed-Through Coupler (Type A Female to Type A Female) is a robust, industrial-grade solution designed for reliable HDMI signal transmission in harsh environments. With an IP67 rating, it is dust-tight and protected against temporary immersion in water, making it ideal for outdoor, industrial, and marine applications. The integrated service port allows for easy maintenance and testing without disconnecting the cable.

Advantages

This coupler ensures a secure, weatherproof connection for HDMI signals, supporting 4K UHD resolution at 60Hz and data rates up to 18 Gbps. Its panel-mountable design simplifies installation in enclosures, walls, or control panels. Backward compatible with HDMI 2.0 and earlier standards, it also supports HDCP 2.2 for protected content.

Suitable for

• Industrial automation and control systems
• Outdoor digital signage and displays
• Marine and transportation electronics
• Security and surveillance systems
• Any application requiring a rugged, sealed HDMI connection

Key specifications

• Product Type: HDMI Feed-Through Coupler
• Connector Type: HDMI Type A Female to HDMI Type A Female
• Ingress Protection: IP67
• Mounting Type: Panel Mount
• HDMI Standard: HDMI 2.0 (backward compatible)
• Max Resolution: 4K UHD (3840x2160) @ 60Hz
• Max Data Transfer Rate: 18 Gbps
• Audio Support: Yes (Dolby TrueHD, DTS-HD Master Audio, etc.)
• HDCP Support: HDCP 2.2 (backward compatible)
• Housing Material: Robust industrial-grade materials
• Special Feature: Service Port Integration

Recommendations

For optimal performance, use with high-speed HDMI cables rated for 18 Gbps. Ensure proper panel cutout and sealing for IP67 integrity. Ideal for use in conjunction with EFB's range of industrial connectivity solutions.
