EFB Elektronik Cabo de Patch de Fibra Ótica E2000/APC para SC Monomodo OS2 9/125 µm 15 m Amarelo

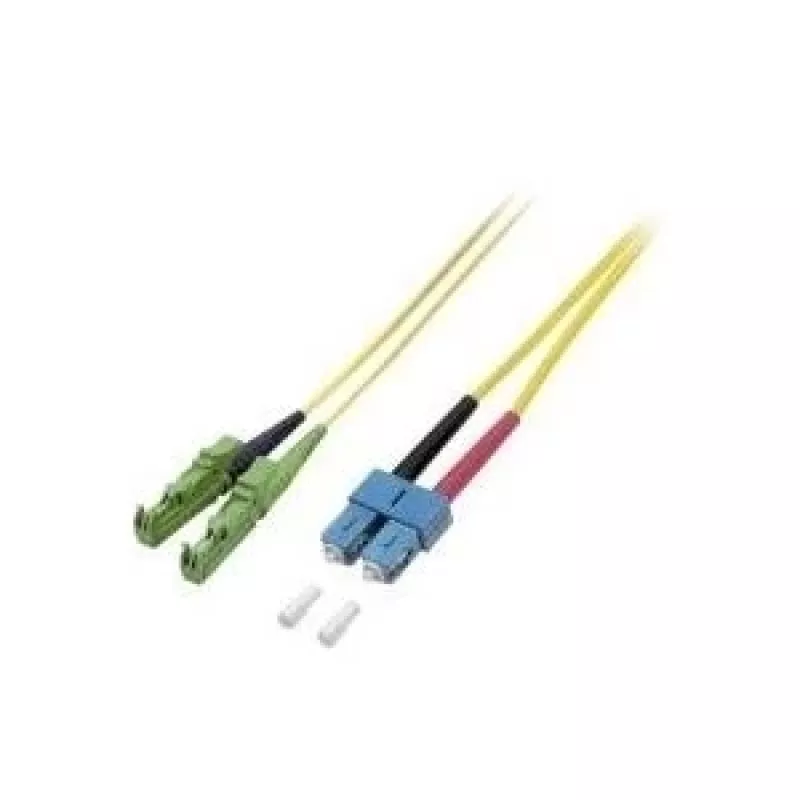

The EFB Elektronik O0939.15 is a high-quality fiber optic patch cable designed for reliable singlemode transmission in telecommunications, data networking, and FTTx applications. This 15-meter cable features an E2000/APC connector on one end and an SC connector on the other, with a 9/125µm core/cladding and OS2 classification. The yellow jacket ensures easy identification, while the APC polishing on the E2000 connector minimizes back reflection for optimal signal integrity.

Advantages

This cable offers low insertion loss and high return loss, ensuring efficient and stable data transmission. The E2000/APC connector with an 8° angled polish reduces back reflections, making it ideal for high-speed networks. The simplex design is perfect for point-to-point connections, and the robust construction guarantees long-term reliability.

Suitable for

• Telecommunications networks
• Data centers and server rooms
• FTTx (Fiber to the x) installations
• High-speed data transmission up to 10 Gbps and beyond

Key specifications

• Cable type: Fiber Optic Patch Cable
• Fiber mode: Singlemode
• Fiber class: OS2
• Core diameter: 9 µm
• Cladding diameter: 125 µm
• Connector A: E2000/APC (8° APC)
• Connector B: SC (PC)
• Length: 15.00 m
• Number of fibers: 1 (Simplex)
• Jacket color: Yellow
• Product origin: Germany

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard singlemode transceivers and patch panels. Pair with EFB Elektronik adapters and couplers for a complete solution.
