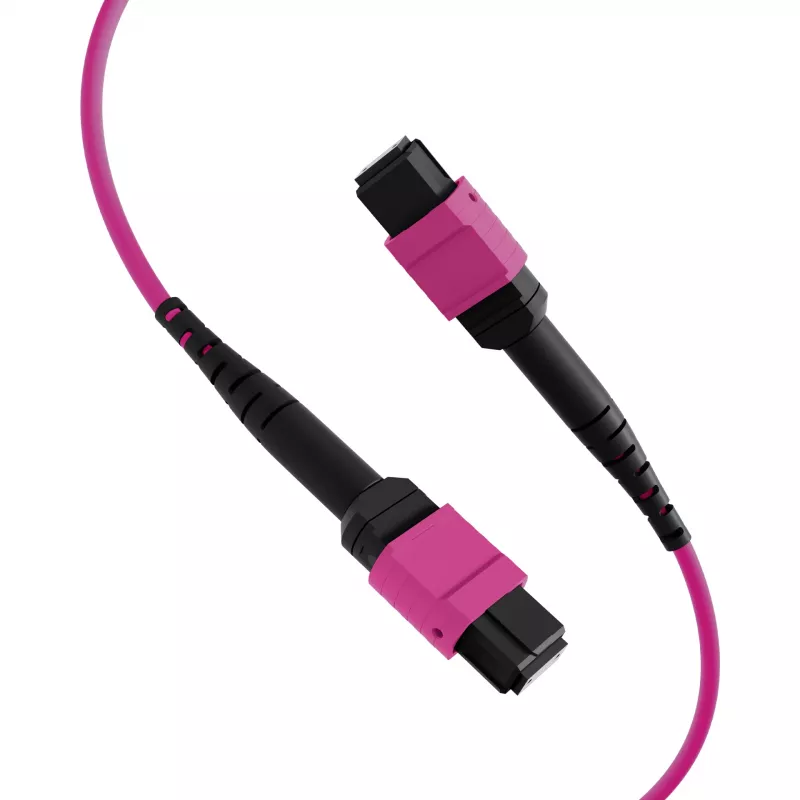

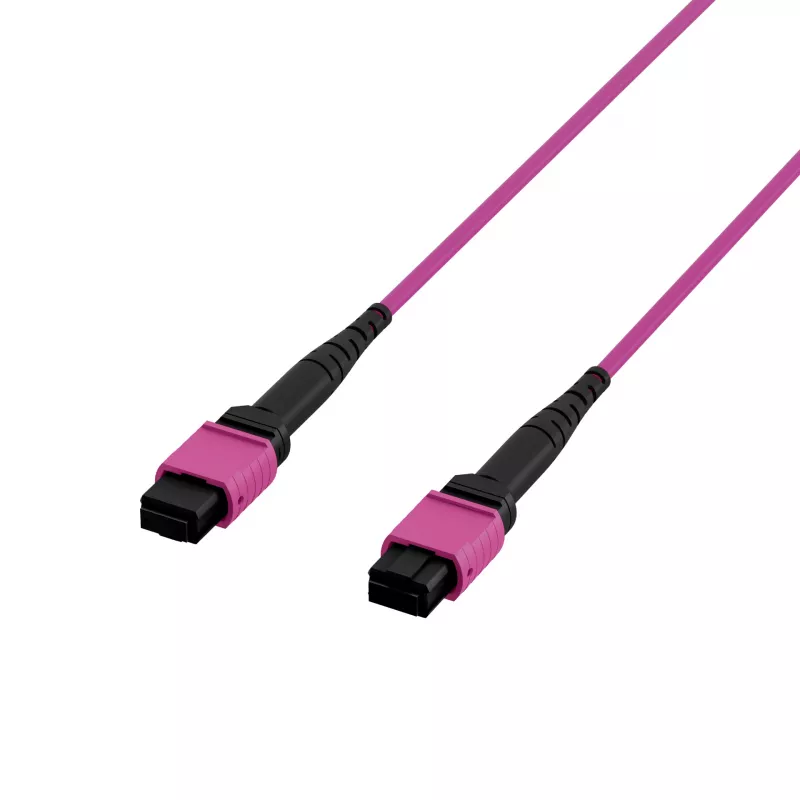

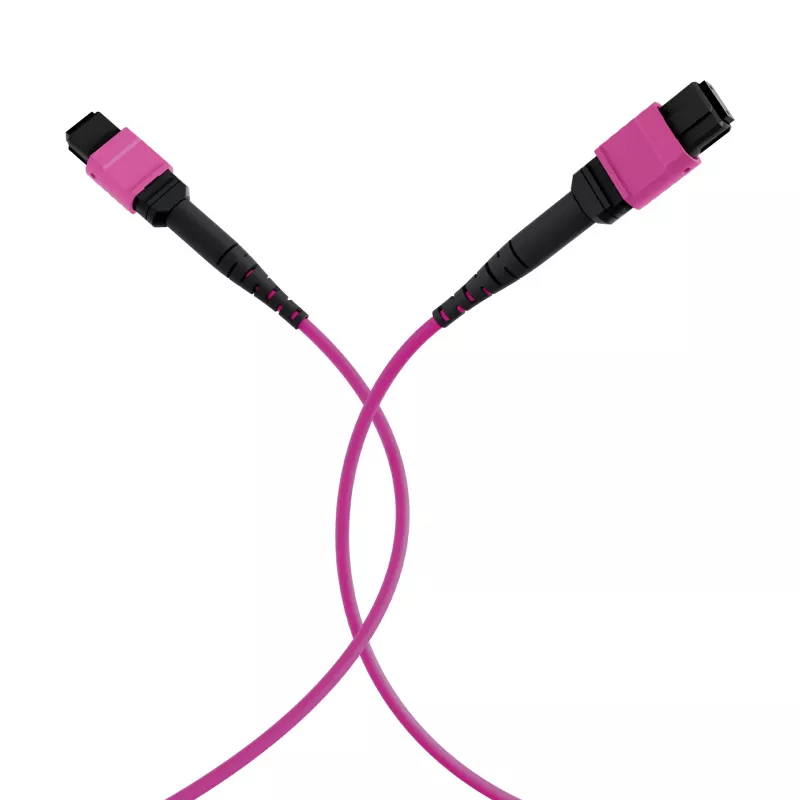

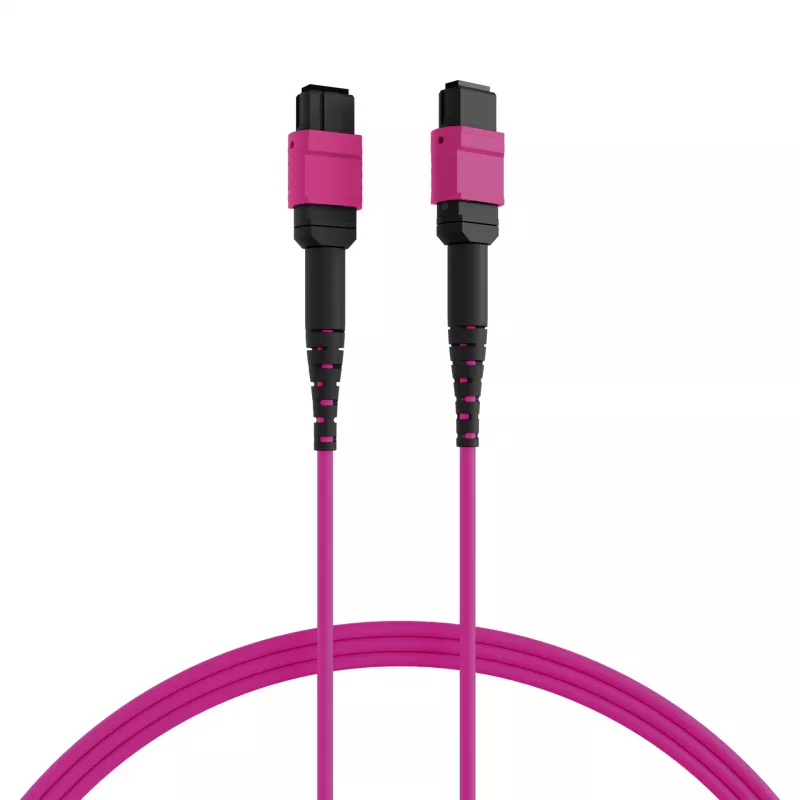

Cabo de patch de fibra ótica MPO-PLUS (F) para MPO-PLUS (F), OM4, 8 fibras, tipo B, LSZH, violeta erika, 10 m MPOF8MPOFOM4-10

In high-density data centers, network engineers rely on MPO-PLUS (F) to MPO-PLUS (F) patch cables to connect switches, servers, and storage systems with minimal space and maximum throughput. This EFB Elektronik cable delivers OM4 multimode performance for 40G, 100G, and 400G Ethernet links, ensuring reliable connectivity in demanding environments.

Key specifications

• Fiber type: Multimode OM4, 50/125 µm core/cladding
• Number of fibers: 8
• Connectors: MPO-PLUS female on both ends
• Polarity: Type B
• Cable length: 10 m
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Jacket color: Erika-violet
• Insertion loss: max 0.35 dB
• Return loss: min 20 dB
• Operating temperature: -20°C to 70°C
• Storage temperature: -40°C to 85°C
• Standards compliance: IEC 61754-7, TIA/EIA-604-5 (FOCIS 5)
• Connector ferrule material: Zirconia ceramic

Why choose it

The LSZH jacket reduces toxic smoke in case of fire, making it suitable for enclosed spaces. The erika-violet color aids in quick identification among cable runs. MPO-PLUS connectors offer improved performance and reliability over standard MPO.

Ideal use cases

• High-density data center interconnects
• 40G/100G/400G Ethernet backbone links
• Fibre Channel storage area networks

Good to know

Type B polarity is commonly used with parallel optics transceivers. The cable is factory-terminated and tested for consistent optical performance.
