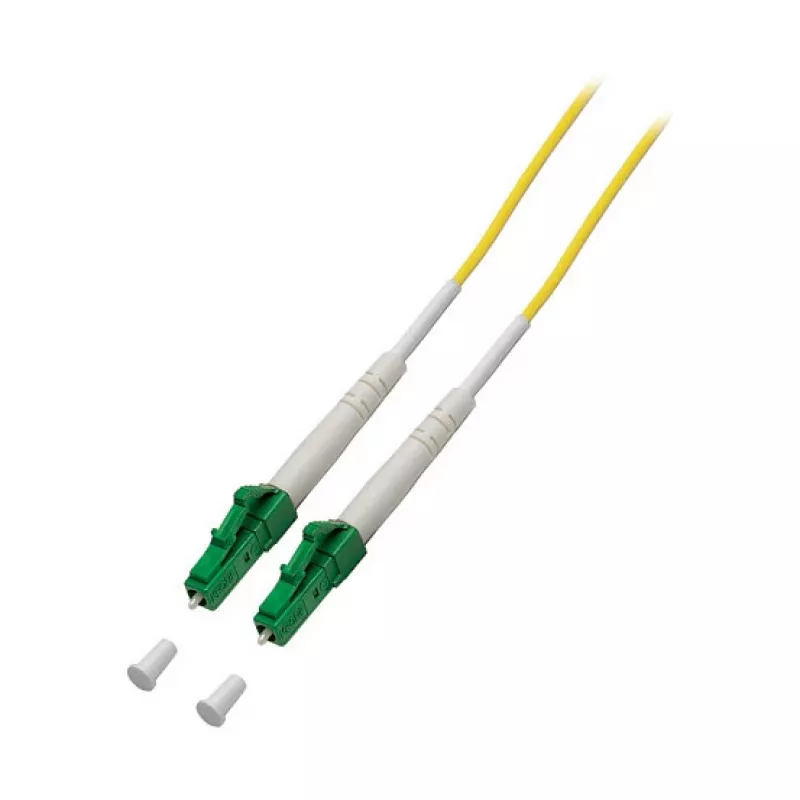

EFB Elektronik cabo patch de fibra ótica simplex LC/APC-LC/APC G.657.A2 20 m 2,0 mm amarelo 9/125 µm OS2

The EFB Elektronik Simplex fibre optic patch cable is a high-quality single-mode cable designed for reliable data transmission in data centers, telecommunications, FTTH, and LAN networks. With LC/APC connectors on both ends and a bend-insensitive G.657.A2 fibre, this cable ensures low insertion loss and high return loss for optimal performance.

Advantages

This cable offers excellent signal integrity with typical insertion loss ≤0.2 dB and return loss ≥60 dB. The APC polish minimizes back reflection, making it ideal for high-bandwidth applications. The 2.0 mm diameter and yellow jacket provide easy identification and flexibility.

Suitable for

• Data centers requiring reliable single-mode connections
• Telecommunications infrastructure
• FTTH (Fiber to the Home) installations
• Local area networks (LAN)

Key specifications

• Product Type: Fibre Optic Patch Cable
• Fibre Mode: Single-mode (OS2)
• Fibre Standard: ITU-T G.657.A2 (Bend-insensitive)
• Fibre Core/Cladding Diameter: 9/125 µm
• Connector Type A: LC/APC
• Connector Type B: LC/APC
• Connector Polish: APC (Angled Physical Contact)
• Cable Structure: Simplex (Single Fibre)
• Cable Length: 20 m
• Cable Diameter: 2.0 mm
• Jacket Color: Yellow
• Insertion Loss (Typical): ≤ 0.2 dB
• Return Loss (Typical): ≥ 60 dB
• Ferrule Material: Zirconia Ceramic
• Minimum Bend Radius: 10 mm
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -40°C to 85°C
• Compliance: RoHS Compliant

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard LC/APC interfaces and is suitable for both indoor and protected outdoor environments.
