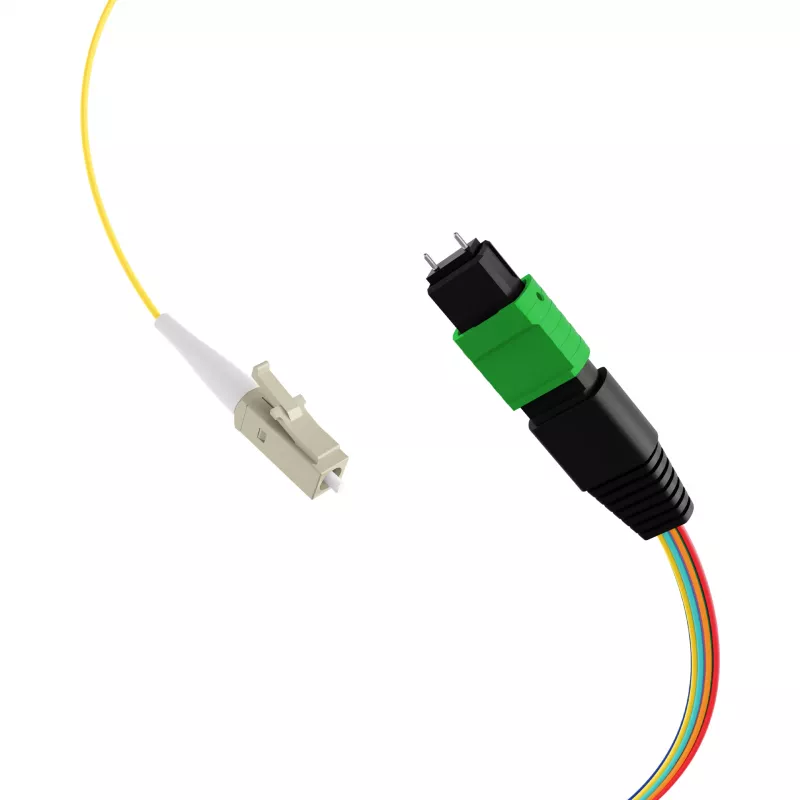

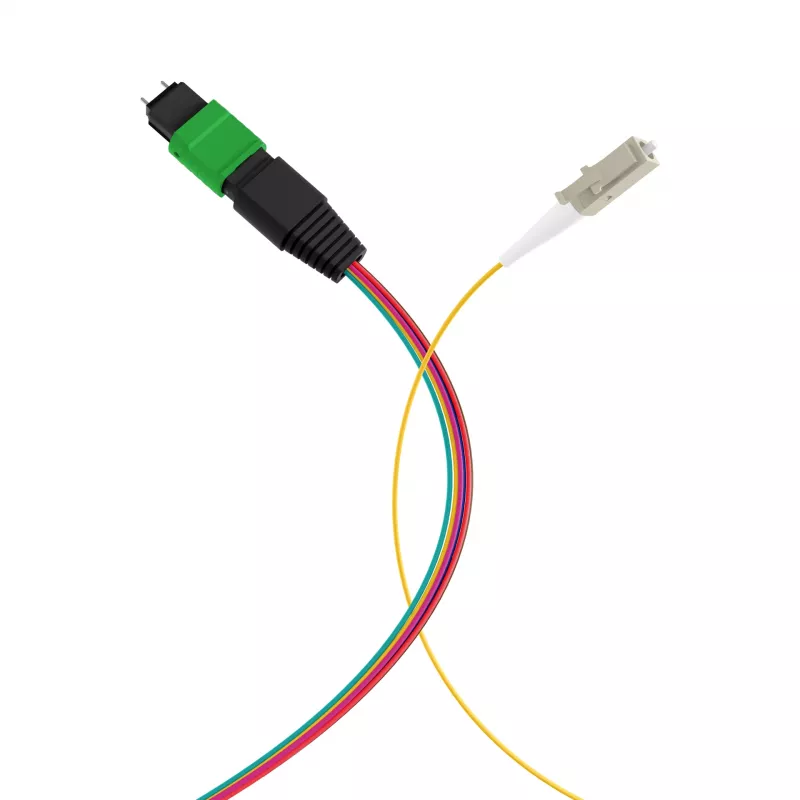

Cabo patch matriz MTP-M/LC 8 fibras OS2 EFB, LSZH amarelo, 1 m

High-density fiber optic patching in data centers often struggles with cable congestion and installation complexity. This EFB 8-fiber matrix patch cable solves that by consolidating eight single-mode fibers into one compact MTP connector, breaking out to eight individual LC connectors for easy connection to equipment.

Who is it for

Network engineers and data center technicians who need reliable, high-performance connectivity for 100 Gigabit Ethernet links in space-constrained environments.

Main features

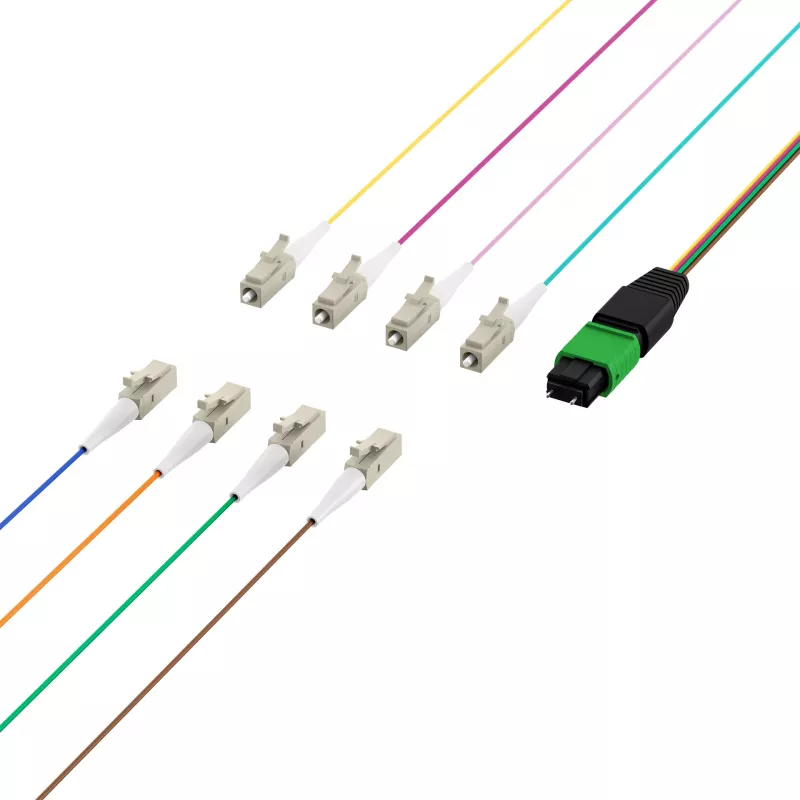

• MTP Male (pinned) connector on one end, 8x LC simplex connectors on the other
• OS2 single-mode fiber with 9/125 µm core/cladding, optimized for long-distance transmission
• Low-loss fanout design with maximum insertion loss of 0.35 dB per fanout
• LSZH yellow jacket for safety and easy identification
• Supports data rates up to 100 Gbps

Specifications

• Cable length: 1 m
• Fiber count: 8
• Fiber type: OS2 single-mode
• Connector A: MTP Male (pinned)
• Connector B: 8x LC simplex
• Jacket material: LSZH
• Jacket color: Yellow
• Insertion loss: Low loss, max 0.35 dB per fanout
• Application: Data center, telecommunications

Tips

Use this cable to connect high-density MTP trunks to individual LC ports on switches or servers. The yellow jacket indicates single-mode fiber, so ensure your transceivers are compatible with OS2 fiber.
