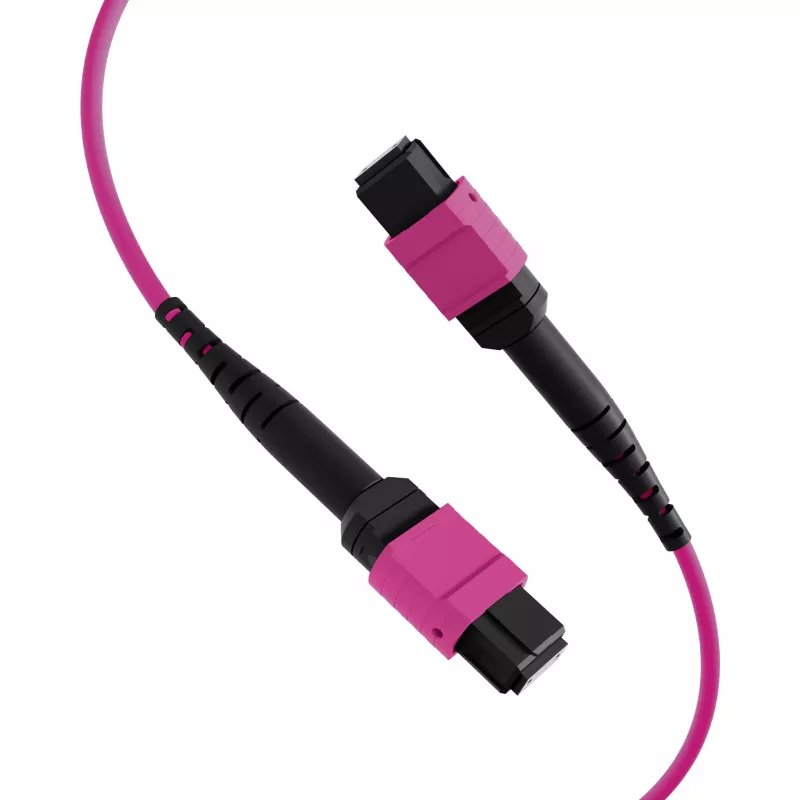

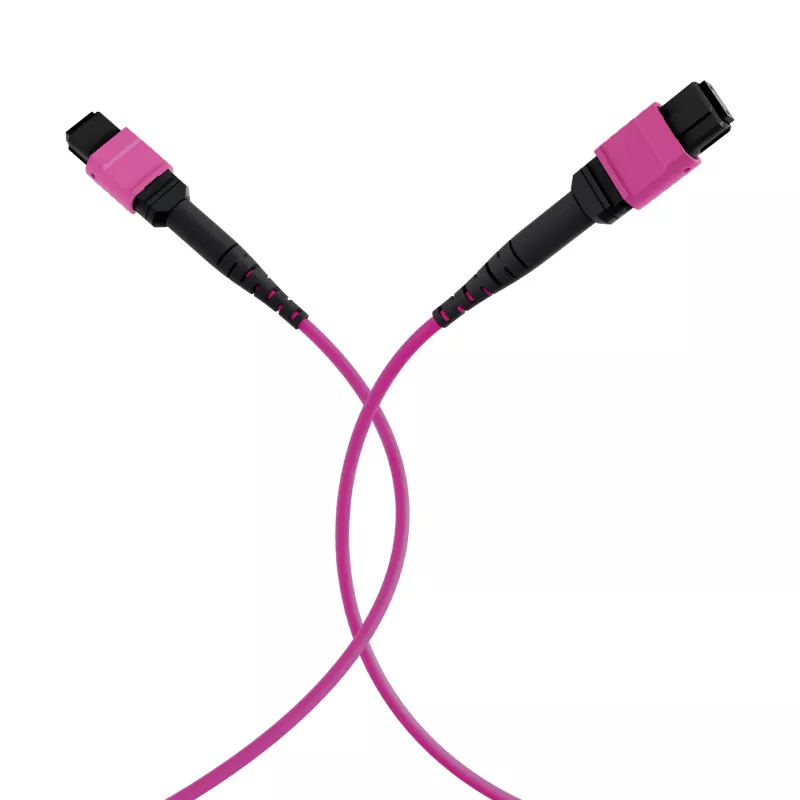

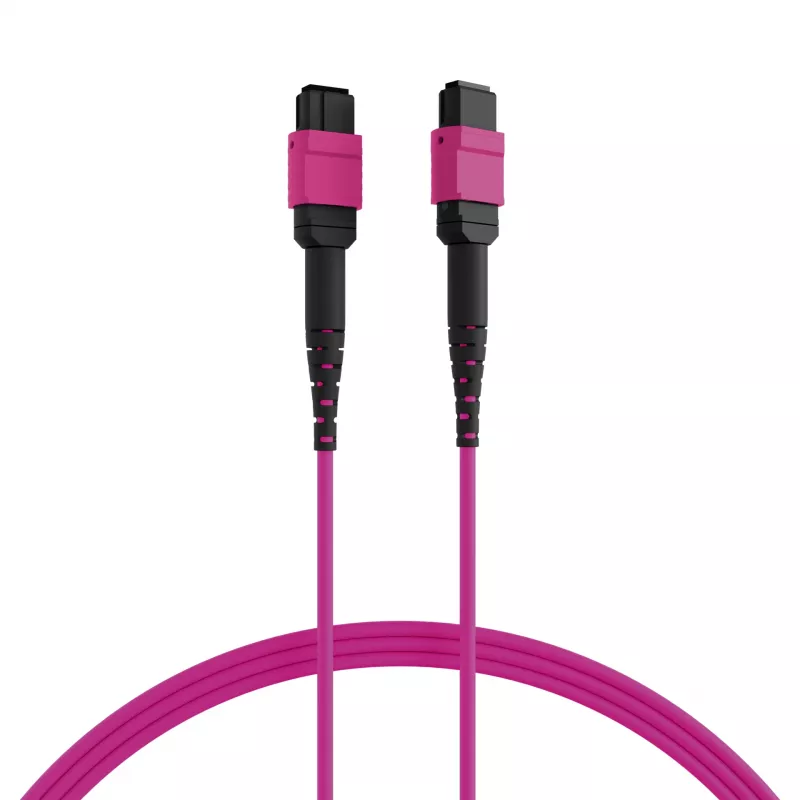

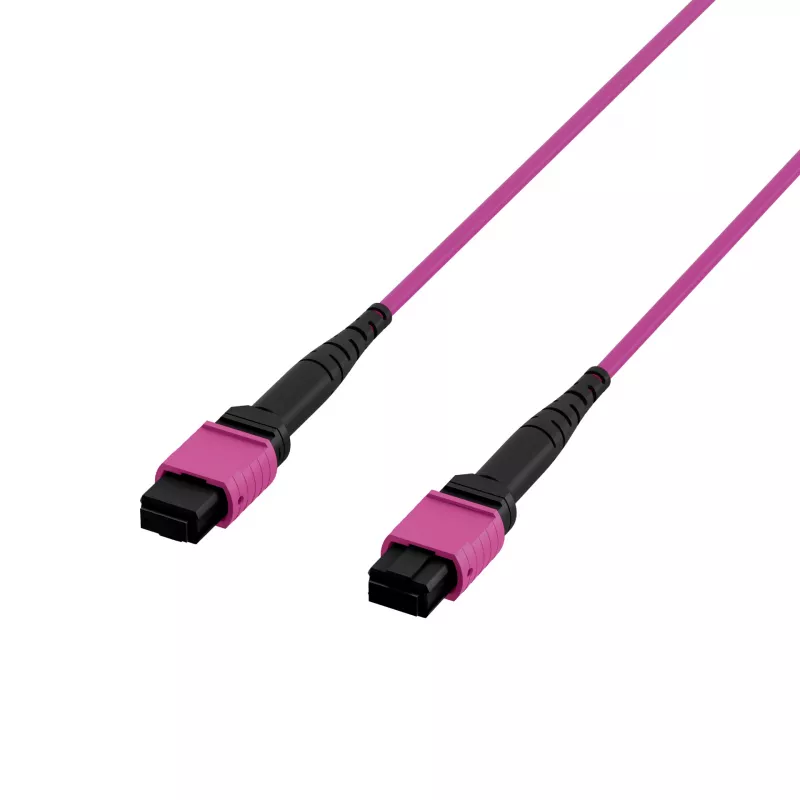

EFB ELEKTRONIK cabo patch MPO-PLUS(F)-MPO-PLUS(F) OM4 12 fibras tipo B LSZH violeta heather 3m

The EFB ELEKTRONIK MPO-PLUS(F)-MPO-PLUS(F) Patch Cable is a high-performance fiber optic patch cable designed for demanding data center and enterprise network environments. With 12 multimode OM4 fibers, MPO-PLUS female connectors on both ends, and Type B polarity, this cable supports high-speed applications such as 40G and 100G Ethernet. The LSZH (Low Smoke Zero Halogen) jacket ensures safety in confined spaces, while the heather violet color provides easy identification.

Advantages

This cable offers low insertion loss (≤0.35 dB per connector pair) and high return loss (≥20 dB), ensuring reliable signal transmission. The OM4 fiber class provides high bandwidth (4700 MHz-km at 850 nm) for short-reach multimode applications. The LSZH jacket reduces toxic smoke emissions in case of fire, making it ideal for use in data centers and other indoor installations.

Suitable for

• Data centers and server rooms
• Storage Area Networks (SAN)
• Local Area Networks (LAN)
• 40G and 100G Ethernet connections
• High-speed fiber optic backbone cabling

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Type: Multimode OM4
• Fiber Count: 12 Fibers
• Connector A: MPO-PLUS Female
• Connector B: MPO-PLUS Female
• Polarity: Type B (Cross-over)
• Cable Length: 3 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Color: Heather Violet
• Core/Cladding Diameter: 50/125 µm
• Maximum Insertion Loss: 0.35 dB (per connector pair)
• Return Loss: ≥20 dB
• Operating Wavelengths: 850 nm, 1300 nm
• Bandwidth (850nm): 4700 MHz-km
• Bandwidth (1300nm): 500 MHz-km
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Compliance: RoHS, REACH

Recommendations

For optimal performance, ensure that the MPO connectors are properly cleaned before each use. This cable is compatible with standard MPO adapters and transceivers. Pair with EFB ELEKTRONIK patch panels and cassettes for a complete structured cabling solution.
