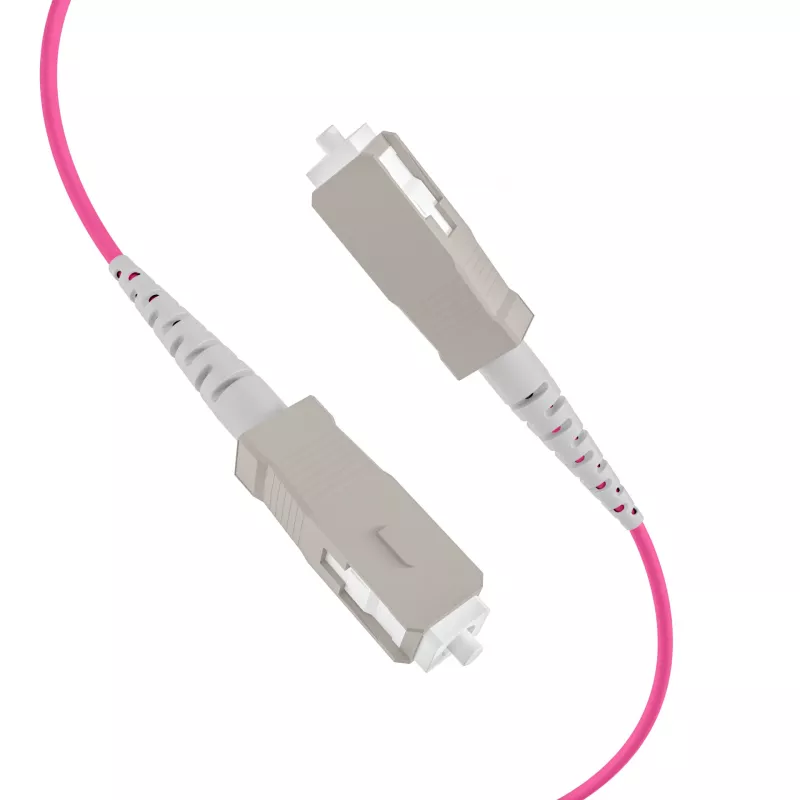

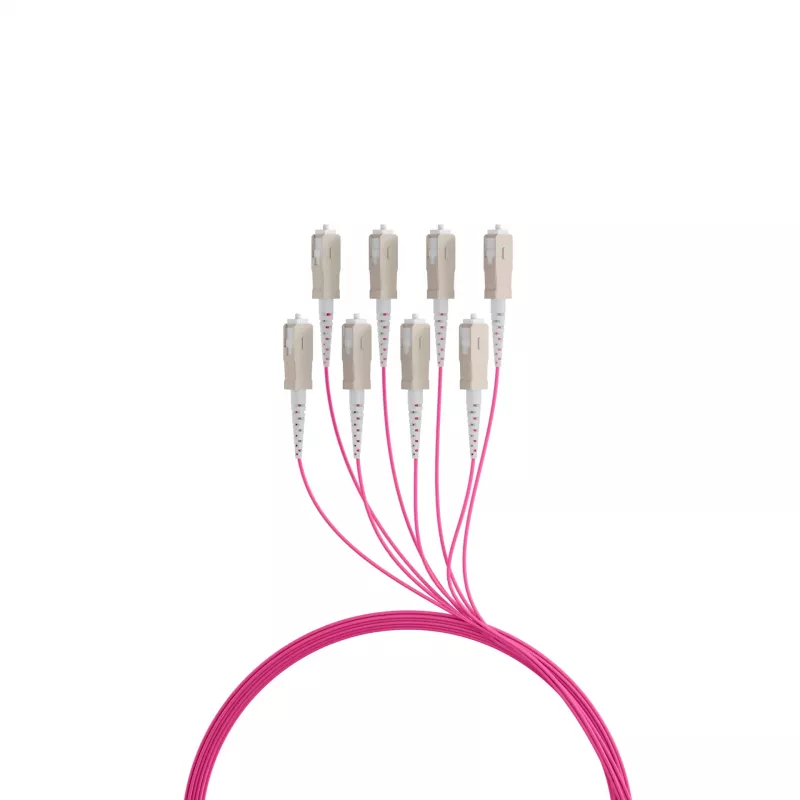

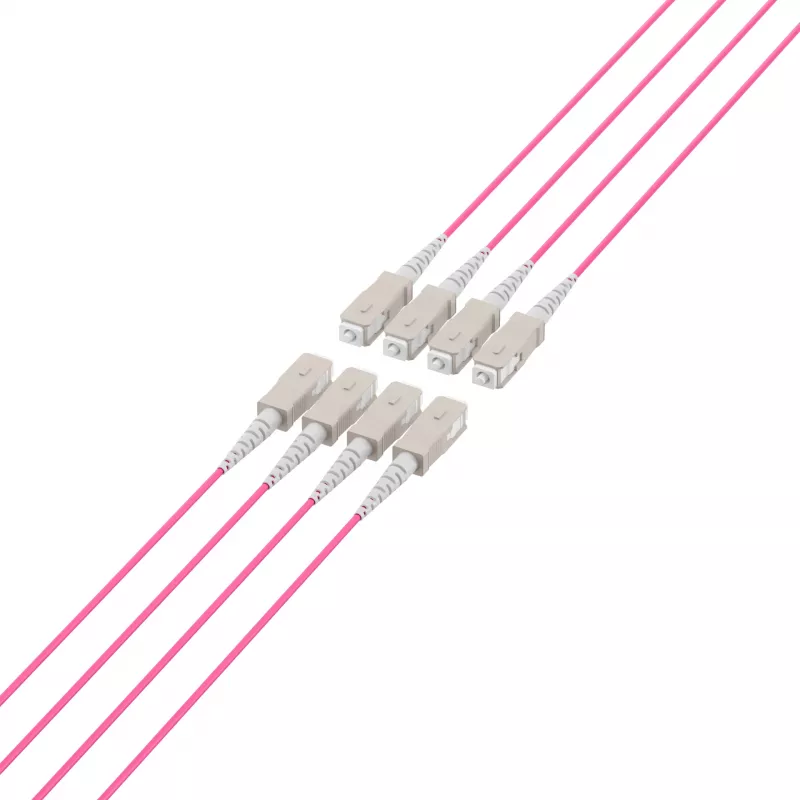

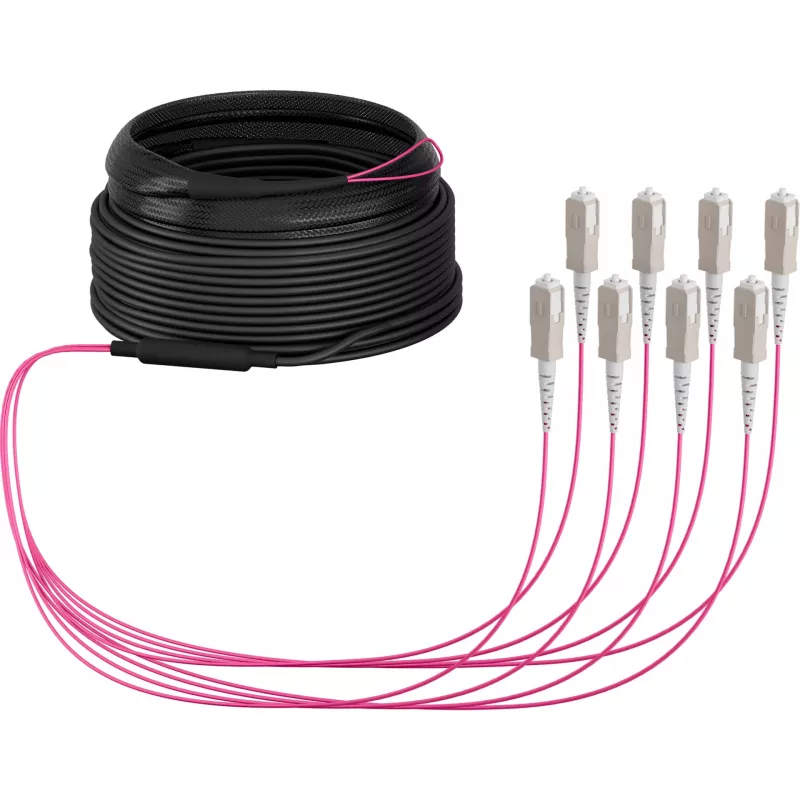

EFB Elektronik Cabo trunk U-DQ ZN BH OM4 8G 1x8 SC-SC 30m Dca LSZH O8321S30OM4

This 30-meter OM4 trunk cable stands out with its 8-fiber count and SC connectors on both ends, making it ideal for high-density backbone and data center links where space and performance matter. The U-DQ ZN BH construction is dry, non-metallic, and central loose tube, ensuring easy handling and rodent resistance without gel. The LSZH jacket meets Dca fire rating, minimizing smoke and toxic fumes in case of fire, a critical safety feature for indoor installations. With OM4 multimode fiber, it supports 40G and 100G Ethernet up to 150 meters using 850nm VCSELs, future-proofing your network.

Highlights

• 8 fibers in a single cable for efficient trunking
• SC connectors on both ends for quick deployment
• OM4 multimode fiber supports high-speed data transmission
• LSZH jacket with Dca fire rating for enhanced safety
• Dry, non-metallic central loose tube design for easy termination

In daily use

This trunk cable is ready for installation in data centers, enterprise backbones, or any environment requiring reliable, high-bandwidth connectivity. The 30-meter length provides flexibility for structured cabling between racks or across rooms. The aqua-colored jacket is easily identifiable as OM4, simplifying maintenance and upgrades. The cable operates reliably in temperatures from -20°C to 70°C, suitable for most indoor environments.

Full specifications

• Cable Type: Fiber Optic Trunk Cable
• Fiber Type: Multimode OM4
• Number of Fibers: 8
• Connector Type (End 1): SC
• Connector Type (End 2): SC
• Cable Length: 30 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Fire Rating (CPR): Dca
• Cable Construction: U-DQ ZN BH (Universal, Dry, Non-metallic, Central Loose Tube, Halogen-free)
• Core Diameter: 50 µm
• Cladding Diameter: 125 µm
• Typical Attenuation (850nm): 2.3 dB/km
• Typical Attenuation (1300nm): 0.6 dB/km
• Minimum Modal Bandwidth (850nm): 4700 MHz*km
• Minimum Modal Bandwidth (1300nm): 500 MHz*km
• Connector Insertion Loss (Typical): ≤ 0.3 dB
• Connector Return Loss (Typical): ≥ 50 dB
• Application: Data Center, Backbone Cabling
• Operating Temperature: -20°C to 70°C
• Cable Color: Aqua

Final note

This EFB trunk cable combines high fiber count, OM4 performance, and safety-rated jacketing in a single, ready-to-install solution for modern network infrastructure.
