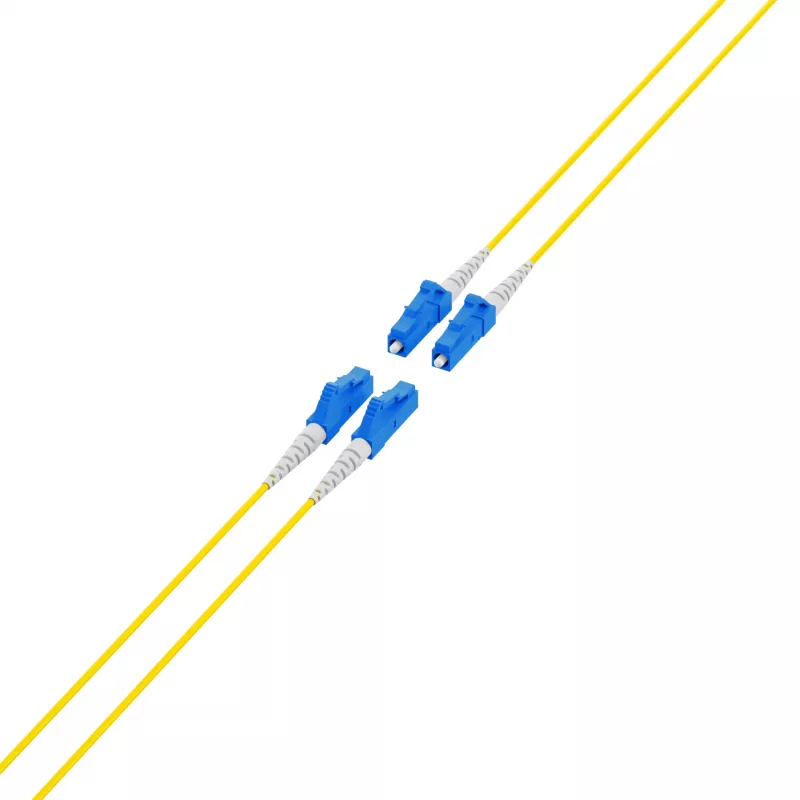

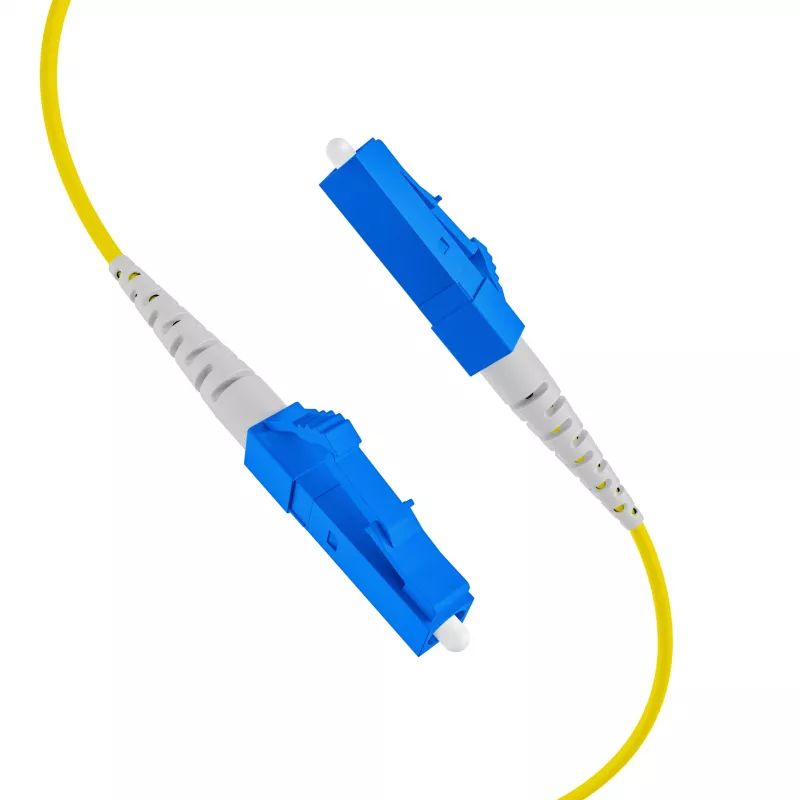

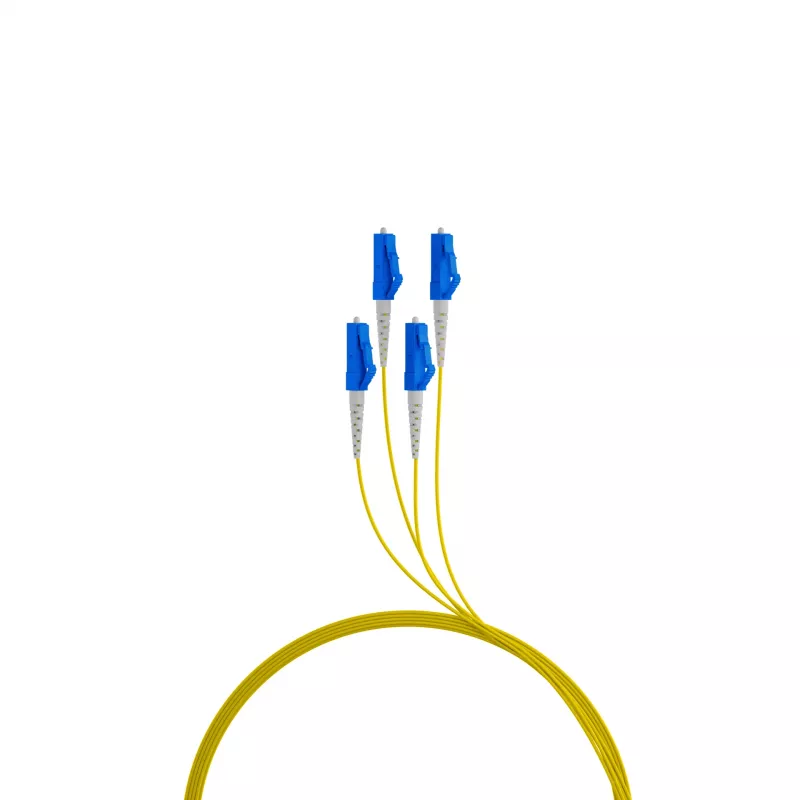

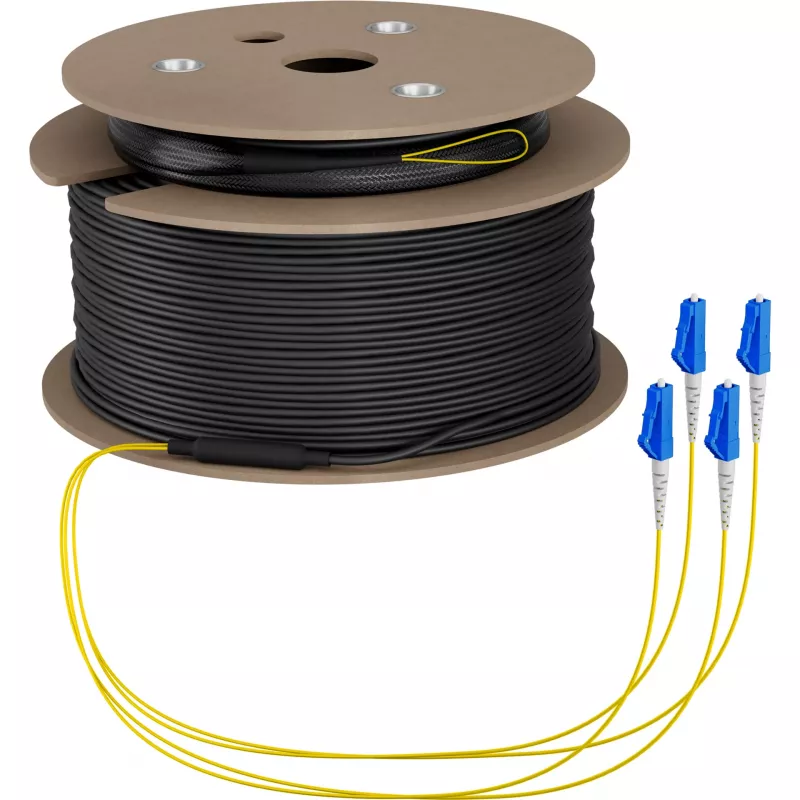

EFB Elektronik Cabo trunk U-DQ ZN BH OS2 4E 1x4 LC-LC 50m Dca LSZH G675A1 - 50 m O8303S50OS2

Fiber optic trunk cable with bend-insensitive single-mode OS2 fibers, ideal for high-speed backbone connections in data centers and LAN environments. Its non-metallic, rodent-protected construction and LSZH jacket ensure safe and durable performance indoors and outdoors.

Advantages

Bend-insensitive G.657.A1 fibers reduce signal loss in tight bends, while the LSZH jacket emits low smoke and zero halogen in case of fire. The cable meets CPR class Dca for fire performance and is RoHS and REACH compliant.

Suitable for

• Data center backbone cabling
• Enterprise LAN infrastructure
• Indoor and outdoor installations

Key specifications

• Fiber type: Single-mode OS2, ITU-T G.657.A1
• Fiber count: 4
• Connectors: LC duplex to LC duplex
• Length: 50 m
• Jacket: LSZH, yellow
• Cable diameter: 6.2 mm
• Insertion loss: ≤ 0.3 dB per connector pair
• Return loss: ≥ 50 dB per connector pair
• Operating temperature: -20 °C to 70 °C

Recommendations

For reliable high-speed fiber links with easy installation and low maintenance, this trunk cable is an excellent choice.
