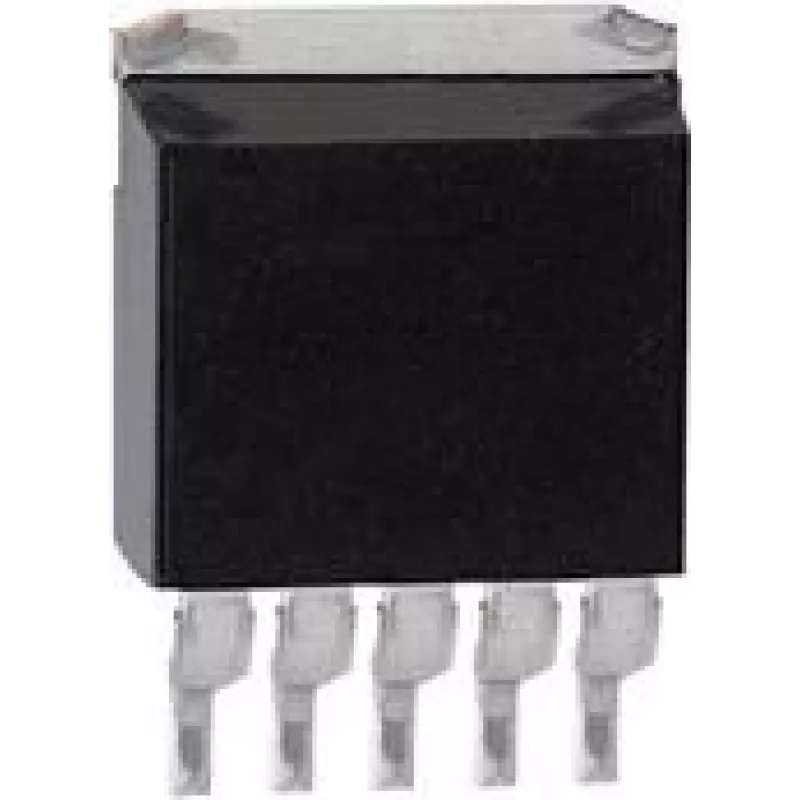

Módulo de potência regulador de tensão Texas Instruments LM2596S-12/NOPB — regulador de comutação fixo de 12V (PMIC)

The Texas Instruments LM2596S-12/NOPB is a fixed 12V switching voltage regulator delivered in tube packaging. Designed as a power management integrated circuit (PMIC), this module provides a regulated 12V output using a buck (step-down) topology appropriate for applications requiring an efficient conversion from a higher input voltage to a stable 12V rail. The device is intended for integration into power supplies for electronics, embedded systems, and industrial control circuits where a dedicated 12V supply is necessary.

Advantages

The LM2596S-12/NOPB offers the advantages of switching-regulator efficiency and a fixed, predictable 12V output, reducing the need for external adjustment. As a PMIC in tube packaging it simplifies handling and storage for production. The buck regulator topology typically results in lower power dissipation compared with linear regulators when stepping down from higher voltages, supporting improved thermal performance in compact assemblies.

Suitable for

• Embedded systems requiring a stable 12V rail
• Power supplies for electronic modules and peripheral devices
• Industrial control circuits and automation equipment
• Prototyping and repair where a fixed 12V switching regulator is needed

Key specifications

• Output voltage: fixed 12V
• Device type: switching (buck) voltage regulator / PMIC
• Packaging: tube (bulk tube format)
• Intended application: step-down voltage regulation to 12V for electronics and control circuits

How to use

Integrate the LM2596S-12/NOPB into a power stage designed for step-down conversion from a higher input voltage to 12V. Follow the manufacturer's recommended reference design for input and output capacitors, inductor selection, and layout practices to ensure stable regulation and minimal output ripple. Ensure the input voltage range applied to the regulator is within the component's allowable range for step-down operation and provide appropriate thermal management and decoupling in the final assembly.

Recommendations

For reliable performance, implement the regulator according to Texas Instruments' application notes and reference schematics: place input and output capacitors close to the device, choose an inductor and Schottky diode per the recommended values, and verify thermal conditions on the PCB. Verify that the input voltage is sufficiently higher than 12V for proper buck operation and confirm output stability under expected load conditions.
