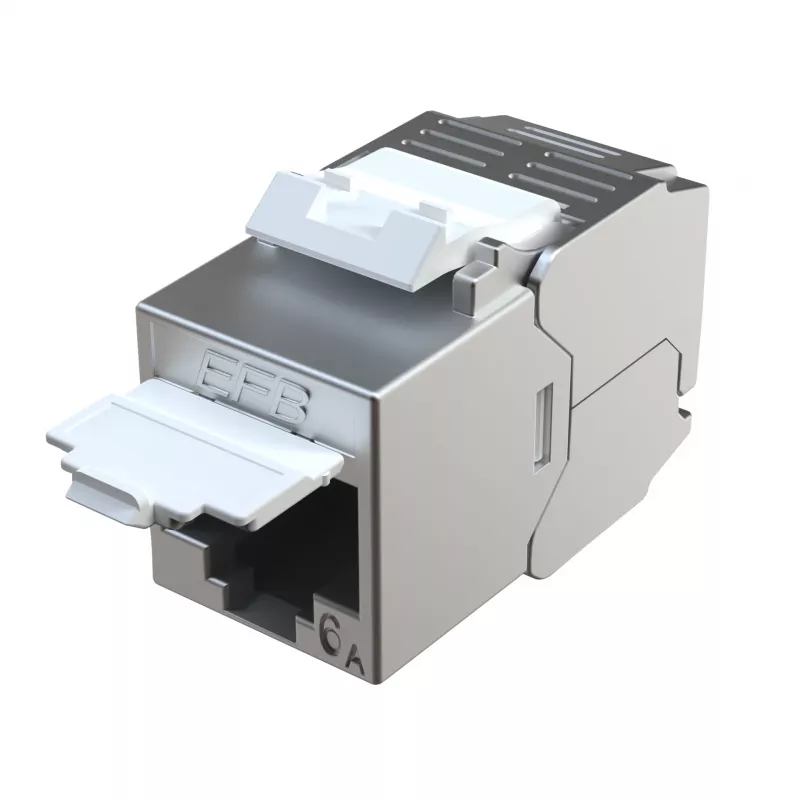

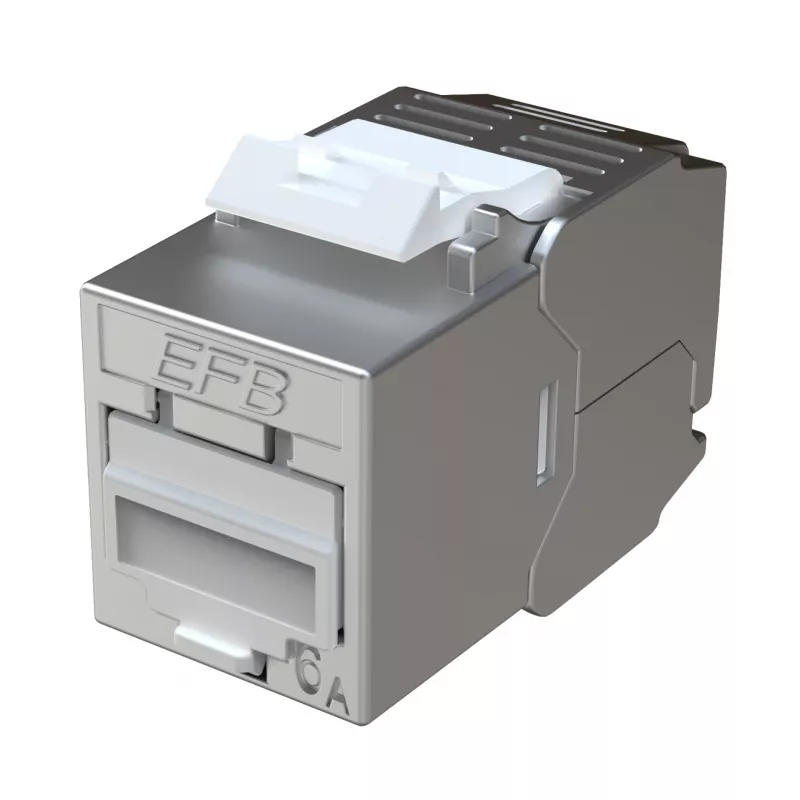

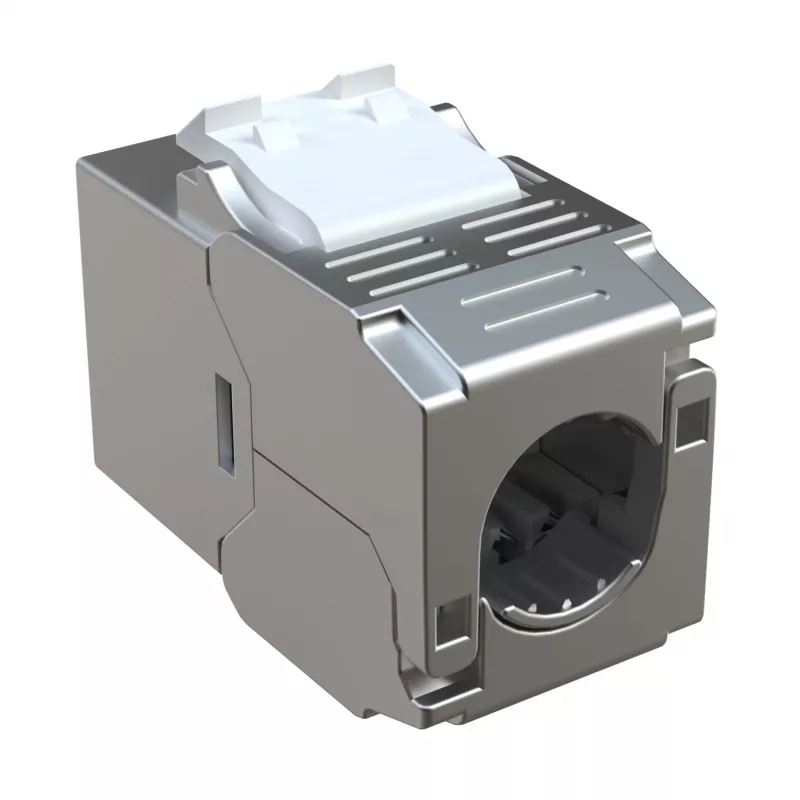

EFB Elektronik E-200130 módulo keystone Slim/Short Cat.6A blindado em zinco fundido 10G

Delivering 10 Gigabit Ethernet over a 500 MHz bandwidth, the EFB Elektronik E-200130 Keystone Slim/Short module is engineered for high-density network installations where performance and space are critical. Its zinc die-cast shielded housing provides superior EMI protection, ensuring signal integrity in demanding environments.

Overview

The E-200130 is a Category 6A shielded keystone module with an RJ45 female front and LSA/IDC rear termination. It supports TIA/EIA 568A/B wiring and is suitable for 10GBASE-T applications. The slim/short design allows for easy installation in patch panels, wall plates, and surface-mount boxes, even in confined spaces.

What stands out

• Zinc die-cast housing for excellent shielding and durability
• Supports 10 Gigabit Ethernet up to 500 MHz
• Tool-free or LSA tool compatible termination
• Gold-plated contacts (50µ") for reliable connections
• PoE, PoE+, and 4PPoE support
• Slim/short profile ideal for high-density installations

Technical details

• Performance: Category 6A (Cat.6A)
• Shielding: Shielded (STP/FTP)
• Connector front: RJ45 female
• Connector rear: LSA/IDC
• Wiring standard: TIA/EIA 568A/B
• Data rate: up to 10 Gbps
• Frequency: up to 500 MHz
• Contact plating: Gold, 50µ"
• Cable entry: 180° (straight)
• Mounting: Keystone snap-in
• Operating temperature: -10°C to +60°C
• Insertion cycles (RJ45): >750
• Insertion cycles (IDC): >200
• Certifications: RoHS compliant

Our verdict

A robust, high-performance keystone module that meets the demands of modern 10G networks. Its compact design and solid shielding make it a reliable choice for professional installers.
