EFB Elektronik ECOFIBER Jumper duplex ST-ST 62.5/125µm OM1 LSZH Laranja 3,0mm 0,5m

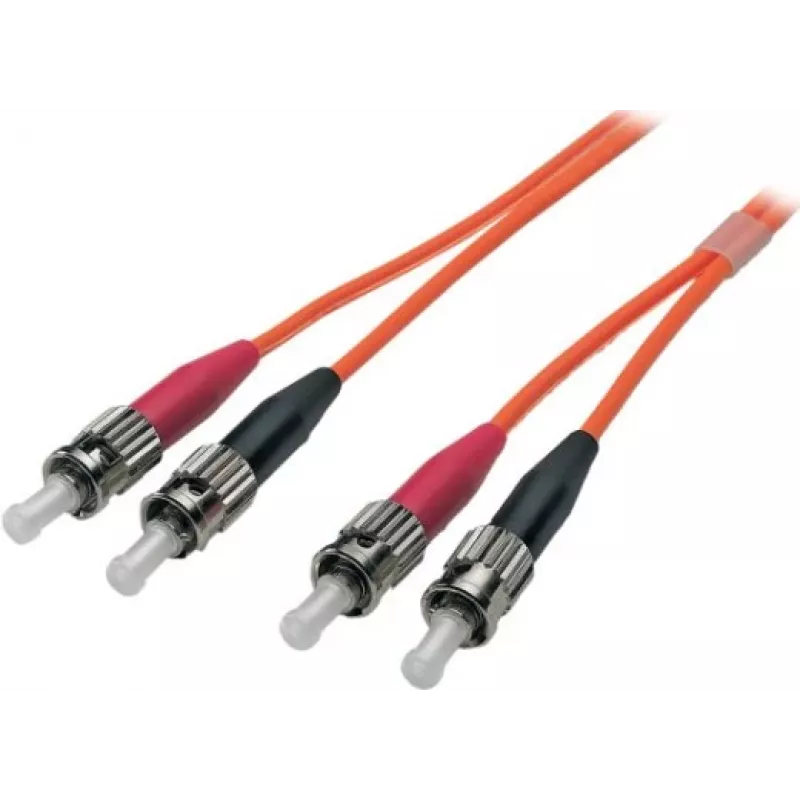

The EFB Elektronik ECOFIBER Duplex Jumper ST-ST is a high-quality fiber optic patch cable designed for reliable data transmission in multimode networks. With a length of 0.5 meters, it is ideal for short-distance connections in data centers, server rooms, and telecommunications environments. The cable features a duplex configuration with two fibers, ST connectors on both ends, and a ceramic ferrule for low insertion loss and high return loss. The jacket is made of LSZH (Low Smoke Zero Halogen) material, ensuring safety in enclosed spaces by emitting minimal smoke and no toxic halogen gases. The orange color and 3.0mm outer diameter provide easy identification and flexibility.

Advantages

This patch cable offers excellent performance for OM1 multimode applications, supporting wavelengths of 850 nm and 1300 nm with bandwidths of 200 MHz·km and 500 MHz·km respectively. The LSZH jacket makes it suitable for use in areas with strict fire safety requirements, such as plenum spaces and public buildings. The durable construction and precise connector polishing ensure long-term reliability and minimal signal loss.

Suitable for

• Data center patching
• Server room connections
• Telecommunications networks
• Fiber optic distribution frames
• Industrial environments requiring LSZH cabling

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Mode: Multimode
• Fiber Standard: OM1
• Core/Cladding Diameter: 62.5/125 µm
• Connector Type: ST to ST
• Connector Ferrule Material: Ceramic
• Configuration: Duplex
• Number of Fibers: 2
• Cable Length: 0.5 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Orange
• Cable Outer Diameter: 3.0 mm
• Operating Wavelengths: 850 nm, 1300 nm
• Bandwidth (850nm): 200 MHz·km
• Bandwidth (1300nm): 500 MHz·km

Recommendations

For optimal performance, ensure that the connectors are cleaned before each use and that the cable is not bent beyond its minimum bend radius. This cable is compatible with standard ST port equipment and is ideal for upgrading legacy 62.5/125 µm networks.
