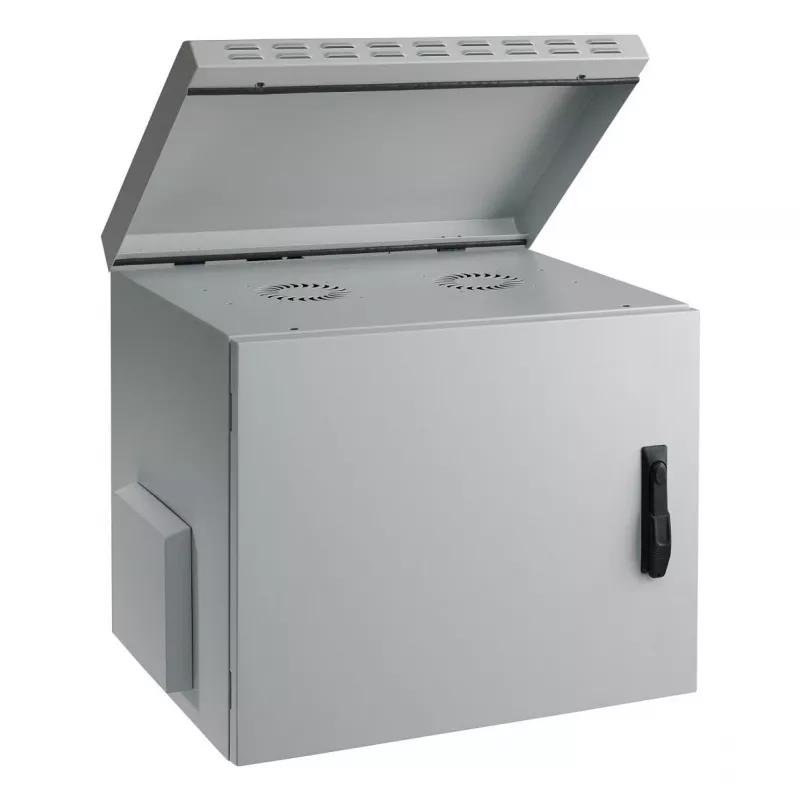

EFB armário de parede 19" IP55 12U porta de vidro profundidade 600 mm RAL7035

When network infrastructure must live in demanding environments—dust, moisture, or even washdown areas—a standard rack simply won't do. This EFB wall-mount enclosure steps in with an IP55 rating, shielding your switches, patch panels, and other 19-inch equipment from the elements while keeping everything organized and accessible. Its compact 12U height and 600 mm depth make it a smart fit for server rooms, production floors, or commercial buildings where floor space is at a premium.

Who is it for

Ideal for IT managers, system integrators, and facility technicians who need to mount network gear securely on a wall in areas prone to dust, water splashes, or physical impact. Perfect for industrial settings, retail back offices, schools, or any location where a freestanding rack is impractical or unprotected.

Main features

• IP55 protection against dust and water jets
• 12U rack height for compact installations

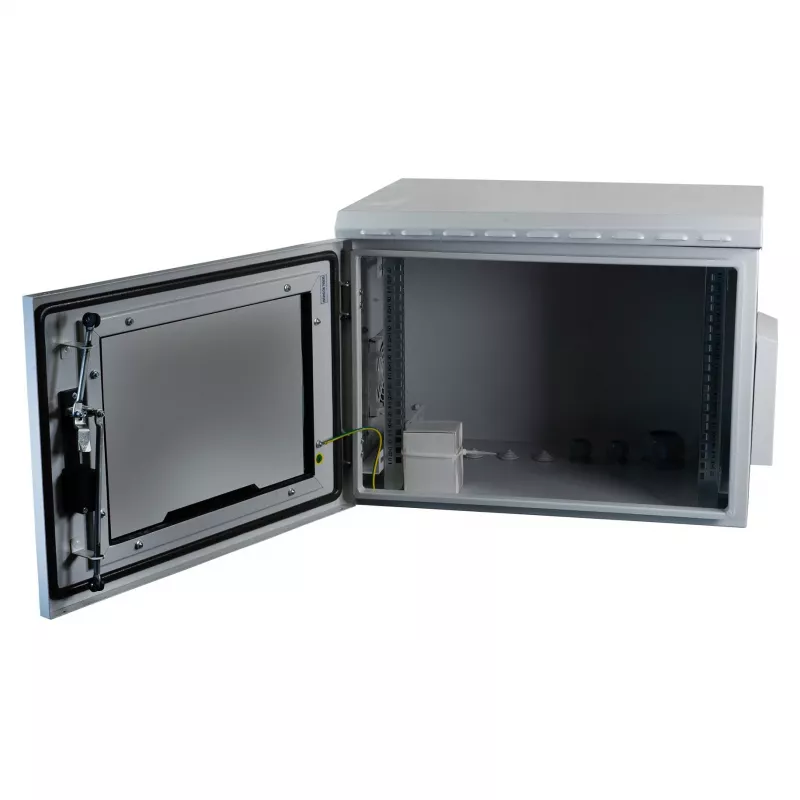

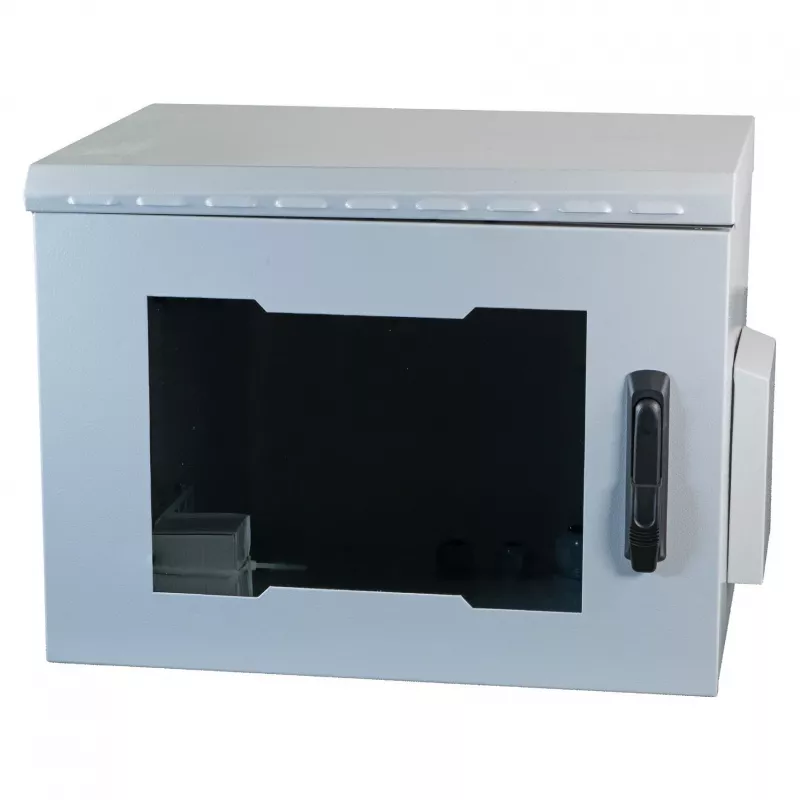

• Front glass door for easy equipment monitoring
• 600 mm depth accommodates deep devices
• Welded steel frame with powder-coated finish in RAL7035 light grey
• Removable side panels for convenient cable management
• Lockable front door for security
• Adjustable 19-inch rails (front and rear)
• Prepared for optional fan unit
• Earthing kit included

Specifications

• Rack standard: 19-inch
• Rack units: 12U
• Mounting: Wall-mounted
• Protection rating: IP55
• Door: Front glass door, lockable
• External dimensions (WxHxD): 600 x 635 x 600 mm
• Colour: RAL 7035 (light grey)
• Material: Steel
• Load capacity: up to 60 kg
• Cable entry: top and bottom
• Side panels: removable
• Ventilation: passive, prepared for fan unit
• Construction: welded frame
• Finish: powder-coated
• Adjustable rails: yes (front and rear)
• Earthing kit: included
• Number of doors: 1

Tips

When mounting, ensure the wall can support the combined weight of the cabinet and installed equipment. Use the top and bottom cable entries for organized routing, and consider adding a fan unit if ambient temperatures are high. Always ground the cabinet using the included earthing kit for safety and compliance.
