EFB conjunto de ligação à terra para armários, incl. perfil omega 35 x 6,5 mm para montagem 19" (K3930V19-SET)

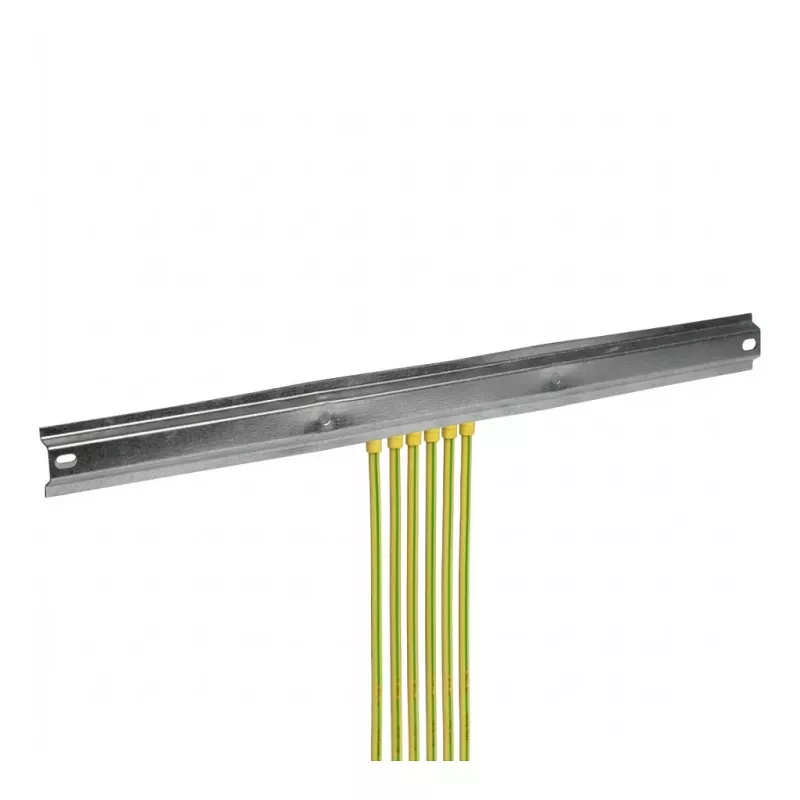

The EFB Grounding Kit K3930V19-SET provides a complete equipotential bonding solution for 19-inch server cabinets and racks. It includes a galvanized steel DIN rail (hat profile) measuring 35 x 6.5 mm, six grounding cables with ring lugs, and all necessary mounting material. Designed for horizontal or vertical mounting on 19-inch frames, this kit ensures electrical safety and compliance with RoHS and CE standards.

Advantages

• Comprehensive grounding solution for 19-inch cabinets
• High-quality galvanized steel DIN rail for durability
• Six pre-terminated grounding cables with 6 mm² cross-section
• Easy installation with included mounting material
• Ensures equipotential bonding and electrical safety

Suitable for

• 19-inch server cabinets and racks
• Data centers and network rooms
• Industrial control cabinets
• Telecommunications enclosures

Key specifications

• Product Type: Grounding Kit
• Application: 19-inch Server Cabinets & Racks
• Mounting Standard: 19-inch
• Included Profile Type: DIN Rail (Hat Profile)
• DIN Rail Dimensions (W x H): 35 x 6.5 mm
• DIN Rail Material: Galvanized Steel
• Number of Grounding Points: 6
• Grounding Cable Cross-Section: 6 mm²
• Grounding Cable Color: Green/Yellow
• Grounding Cable Length: 300 mm
• Cable End Connection Type: Ring Lugs (M6/M8)
• Grounding Bar Connection Type: Screw Terminals
• Mounting Orientation: Horizontal or Vertical (19-inch Frame)
• Compliance: RoHS, CE
• Scope of Delivery: Grounding bar, grounding cables, mounting material
• Function: Equipotential Bonding, Electrical Safety
• Color: Metallic (Profile), Green/Yellow (Cables)

Recommendations

For optimal safety, ensure proper connection of all grounding cables to the cabinet's grounding busbar. Use appropriate torque for screw terminals.
