EFB Electronics Acoplador SC Simplex OM4 uma peça Erika Violeta casquilho cerâmico

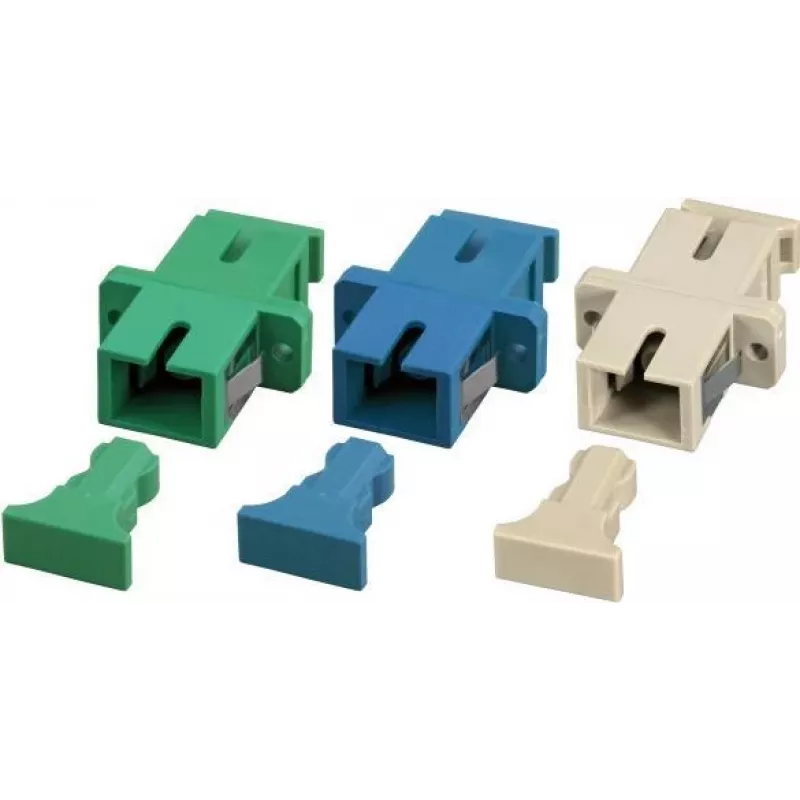

The EFB Electronics Coupling SC Simplex OM4 is a high-performance fiber optic adapter designed for reliable and low-loss connections in multimode networks. Featuring a one-piece construction and a zirconia ceramic sleeve, this coupling ensures precise alignment and durability for demanding applications.

Advantages

This SC Simplex adapter offers typical insertion loss of less than 0.2 dB and return loss greater than 30 dB, ensuring excellent signal integrity. The ceramic sleeve provides over 500 mating cycles, making it a long-lasting solution for frequent patching. Its compact D-hole panel mount design simplifies installation in patch panels and enclosures.

Suitable for

• Data centers requiring high-density fiber connectivity
• Telecommunications networks for reliable signal transmission
• Local Area Networks (LAN) with OM4 multimode fiber

Key specifications

• Connector Type: SC to SC
• Fiber Type: Multimode OM4
• Adapter Configuration: Simplex
• Sleeve Material: Zirconia Ceramic
• Color: Erika Violet
• Construction: One-piece design
• Insertion Loss (Typical): < 0.2 dB
• Return Loss (Typical): > 30 dB
• Durability: > 500 mating cycles
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Mounting Type: D-hole panel mount
• Housing Material: PBT (Polybutylene terephthalate)
• Standards Compliance: IEC 61754-4, TIA/EIA-604-3
• Wavelength Compatibility: 850nm / 1300nm

Recommendations

For optimal performance, pair this adapter with OM4 patch cables and ensure clean fiber end-faces before mating. Ideal for high-speed networks requiring low loss and high reliability.
