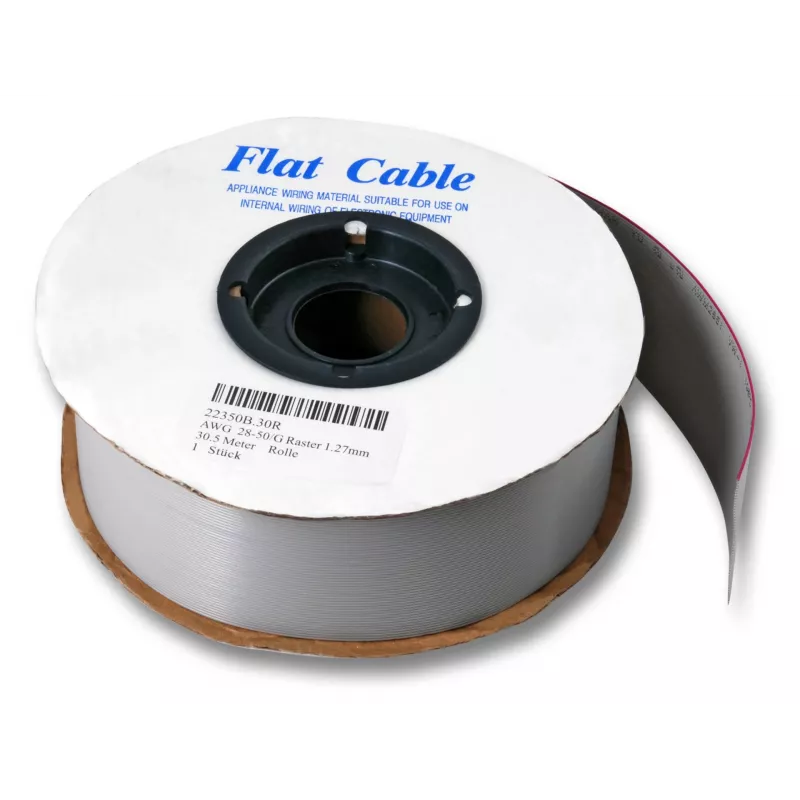

EFB Electronics Cabo Plano AWG 28-16/G 30,5 m Bobina RM 1,27 16 Polos

The EFB Electronics ribbon cable is a high-quality flat cable designed for internal wiring, data bus connections, and signal transmission. With 16 conductors on a 1.27 mm pitch, this AWG 28 cable is ideal for IDC termination and offers reliable performance in a variety of electronic applications.

Advantages

This ribbon cable features tinned copper conductors with PVC insulation, providing excellent conductivity and durability. It is rated for 300 V and 105 °C, with a current rating of approximately 1 A per conductor. The cable is UL VW-1 rated for flammability, ensuring safety in demanding environments. Its grey color and compact width of 20.32 mm make it easy to route and identify in assemblies.

Suitable for

• Internal wiring of electronic devices
• Data bus connections
• Signal transmission in industrial and commercial equipment
• Prototyping and cable assemblies

Key specifications

• Cable Type: Flat Ribbon Cable
• Number of Conductors: 16
• Conductor Pitch: 1.27 mm (0.050 inch)
• Wire Gauge: AWG 28
• Cable Length: 30.5 m
• Packaging: Roll
• Conductor Material: Tinned Copper
• Insulation Material: PVC
• Rated Voltage: 300 V
• Rated Temperature: 105 °C
• Color: Grey
• Current Rating: Approx. 1 A per conductor
• Impedance: Approx. 100-150 Ohm
• Flammability Rating: UL VW-1
• Cross-sectional Area: Approx. 0.08 mm² per conductor
• Total Cable Width: Approx. 20.32 mm
• Approvals: UL Style 2651

Recommendations

This ribbon cable is designed for use with IDC connectors. Ensure proper termination tools are used for reliable connections. Store in a cool, dry place to maintain performance.
