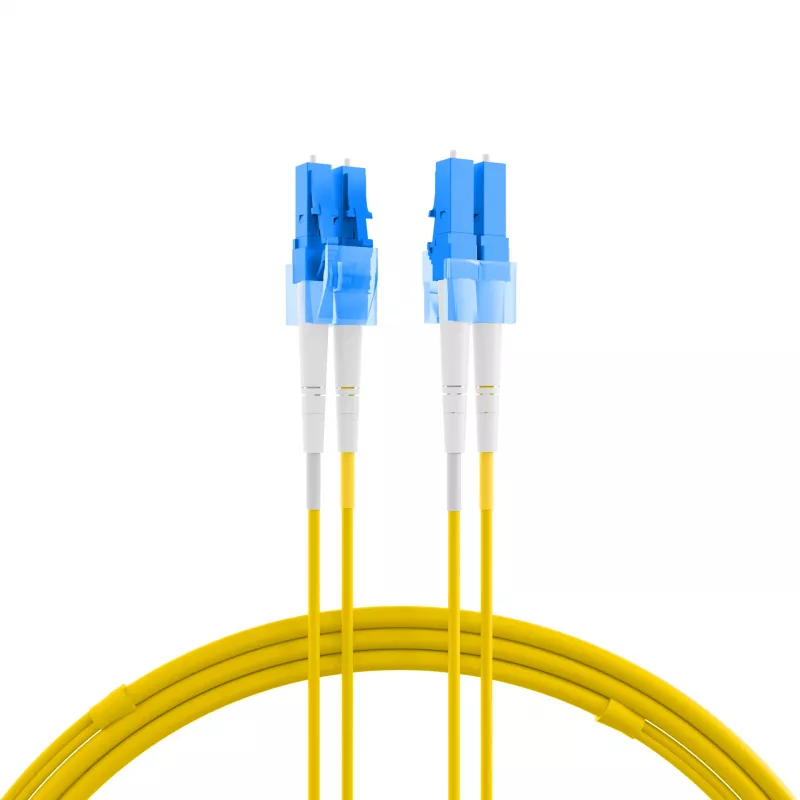

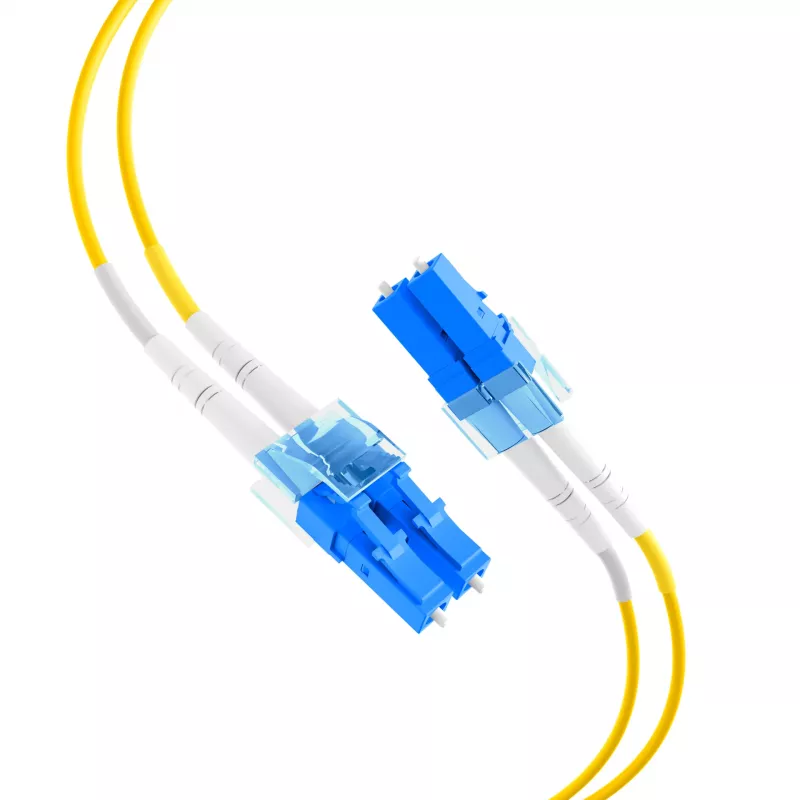

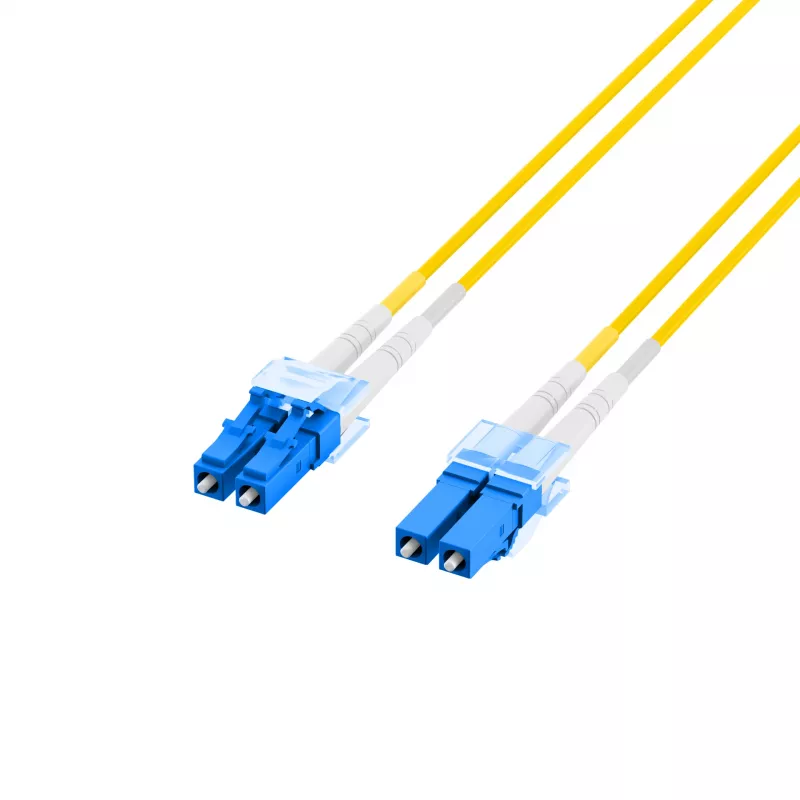

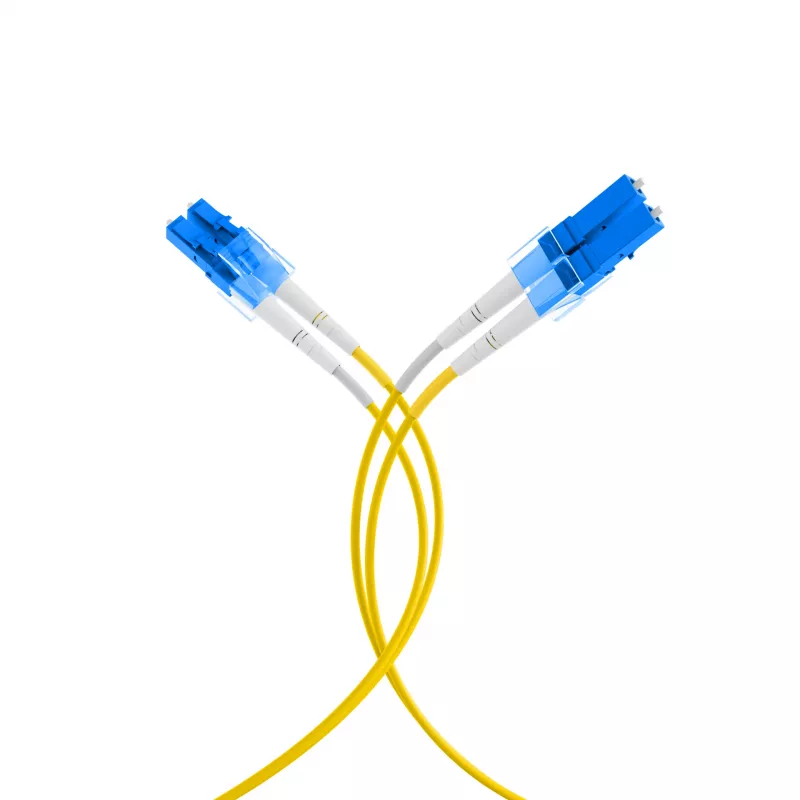

EFB Electronics IPL-DR-LCULCU-2-0750 - 7,5 m - I-V(ZN) H - OS2 - LC - LC Cabo de fibra ótica duplex

The EFB Electronics IPL-DR-LCULCU-2-0750 is a high-quality duplex fiber optic patch cable designed for reliable single-mode transmission. With a length of 7.5 meters and LC to LC connectors, this cable is ideal for data centers, telecommunications, LAN, SAN, and FTTx applications. The OS2 fiber type standard ensures excellent performance over long distances.

Advantages

This patch cable offers low insertion loss (≤0.3 dB) and high return loss (≥50 dB UPC), ensuring minimal signal degradation. The LSZH (Low Smoke Zero Halogen) jacket material provides enhanced safety in indoor environments by reducing toxic fumes in case of fire. The I-V(ZN) H construction is non-metallic and halogen-free, making it suitable for sensitive areas.

Suitable for

• Data centers requiring high-speed, reliable connections
• Telecommunications networks
• Local Area Networks (LAN)
• Storage Area Networks (SAN)
• FTTx deployments

Key specifications

• Product Type: Fiber Optic Patch Cable
• Fiber Mode: Single-mode
• Fiber Type Standard: OS2
• Number of Fibers: 2 (Duplex)
• Connector Type A: LC
• Connector Type B: LC
• Cable Length: 7.5 m
• Cable Construction: I-V(ZN) H (Indoor, Non-metallic, Halogen-free)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Yellow
• Core/Cladding Diameter: 9/125 µm
• Insertion Loss (typical): ≤ 0.3 dB
• Return Loss (typical): ≥ 50 dB (UPC)
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -40°C to 85°C
• Minimum Bend Radius: 30 mm
• Standards Compliance: RoHS, REACH

Recommendations

For optimal performance, ensure proper handling and avoid sharp bends. This cable is compatible with standard LC interface equipment.
