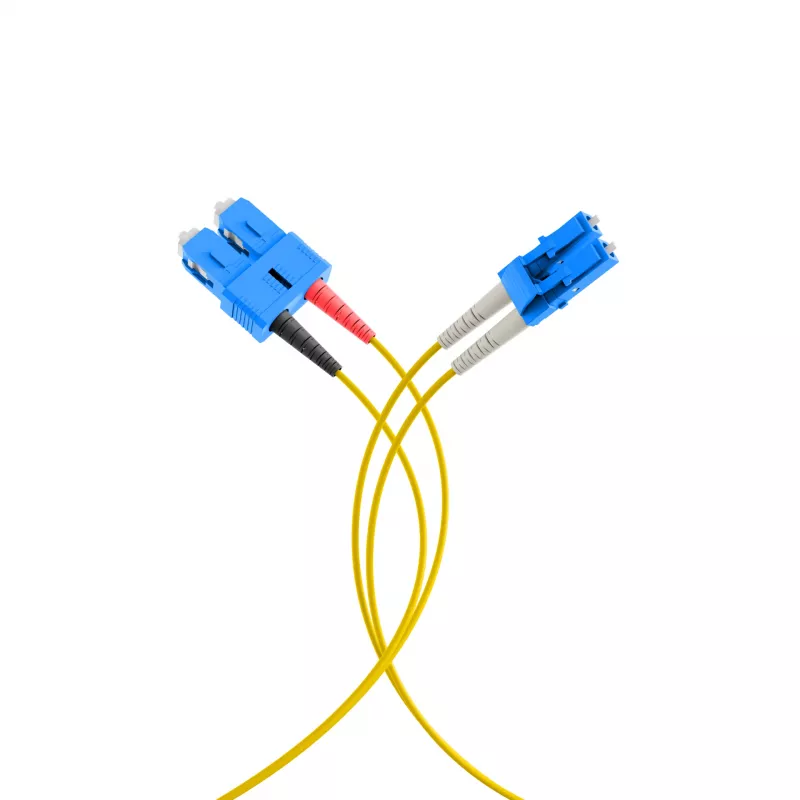

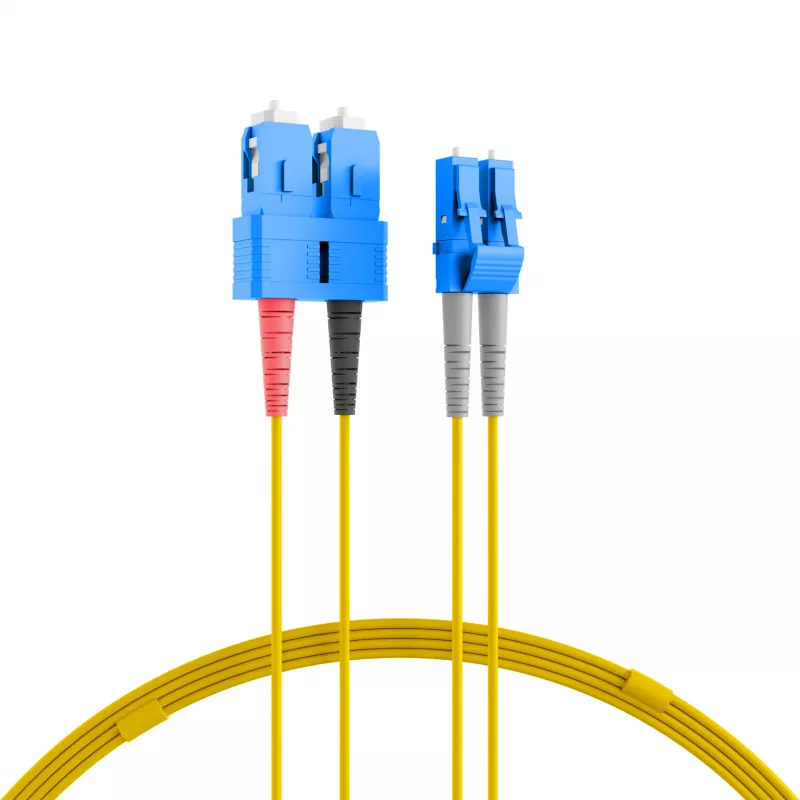

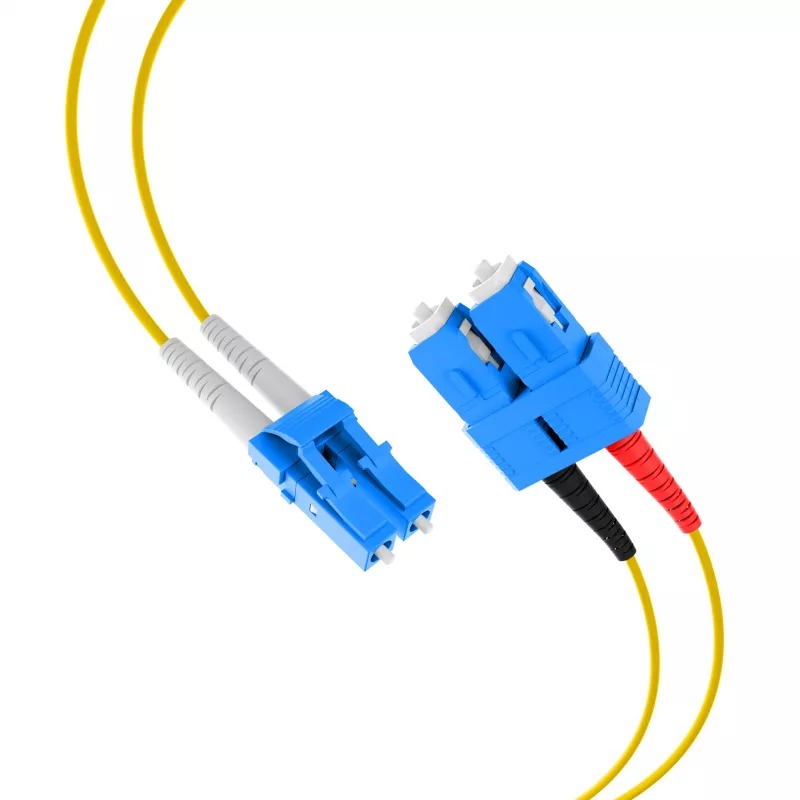

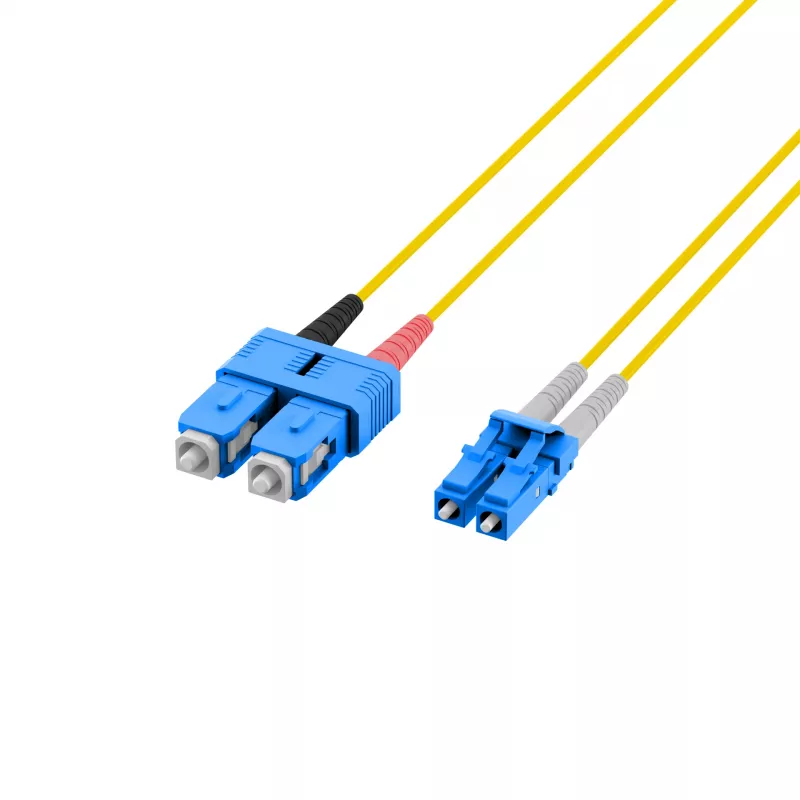

EFB Electronics O0360FT.40 - 40 m - I-V(ZN) HH - OS2 - LC - SC Cabo de patch de fibra ótica

The EFB Electronics O0360FT.40 is a high-performance fiber optic patch cable designed for reliable single-mode transmission. With a length of 40 meters and OS2 classification, it ensures low attenuation and high bandwidth for demanding network applications. The cable features LC to SC duplex connectors, LSZH jacket, and is ideal for indoor installations.

Advantages

This cable offers excellent signal integrity with low insertion loss and high return loss, ensuring minimal data degradation. The LSZH jacket provides safety in enclosed spaces, reducing toxic fumes in case of fire. Its duplex construction allows for bidirectional communication, making it suitable for modern fiber networks.

Suitable for

• Data center interconnects
• Telecommunications networks
• FTTx deployments
• Indoor fiber optic cabling

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Type: Single-mode (SM)
• Fiber Class: OS2
• Cable Length: 40 m
• Connector A: LC Duplex
• Connector B: SC Duplex
• Core/Cladding Diameter: 9/125 µm
• Cable Construction: Duplex
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Yellow
• Application: Indoor
• Attenuation (1310nm): < 0.35 dB/km
• Attenuation (1550nm): < 0.25 dB/km
• Insertion Loss (Max): < 0.3 dB
• Return Loss (Min): > 50 dB
• Operating Temperature: -20°C to 70°C
• Ferrule Material: Zirconia Ceramic
• Standards Compliance: RoHS, REACH

Recommendations

For optimal performance, ensure proper handling and avoid sharp bends. This cable is compatible with standard LC and SC interfaces. Use with appropriate transceivers for best results.
