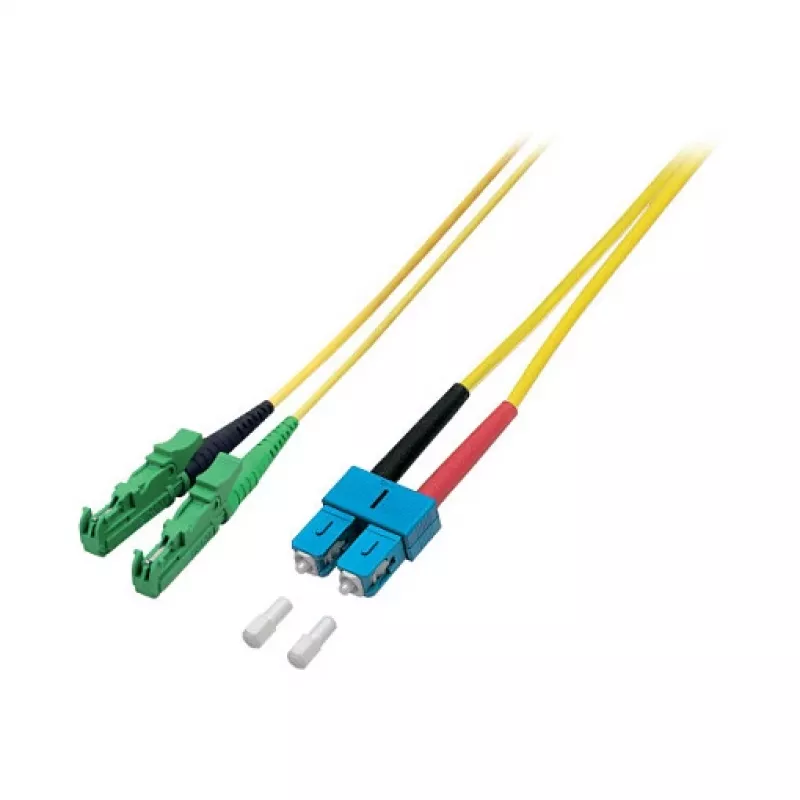

EFB-Elektronik Cabo de Patch de Fibra Ótica E2000/APC para SC OS2 Monomodo 9/125µm 5m Amarelo

The EFB-Elektronik fiber optic patch cable is a high-performance singlemode connection solution designed for demanding network environments. Featuring an E2000/APC connector with an 8° angled polish on one end and an SC connector on the other, this cable ensures low insertion loss and high return loss for reliable data transmission over long distances. With a 9/125µm core/cladding and OS2 classification, it is ideal for Gigabit and 10 Gigabit Ethernet applications in data centers, telecommunications, and FTTx networks.

Advantages

This cable offers exceptional signal integrity with insertion loss <0.3 dB and return loss >60 dB, minimizing reflections and signal degradation. The E2000/APC connector provides a protective shutter and high precision, while the SC connector ensures easy and secure mating. The yellow jacket provides high visibility for easy identification in cable management systems.

Suitable for

• Data centers and server rooms
• Telecommunications networks
• FTTx (Fiber to the x) installations
• LAN and WAN infrastructure
• High-speed data transmission up to 10 Gbps and beyond

Key specifications

• Product Type: Fiber Optic Patch Cable
• Fiber Mode: Singlemode
• Fiber Class: OS2
• Core/Cladding Diameter: 9/125 µm
• Connector A: E2000/APC (8° angle)
• Connector B: SC
• Cable Length: 5.00 m
• Cable Construction: Simplex
• Jacket Color: Yellow
• Insertion Loss: <0.3 dB
• Return Loss: >60 dB
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• RoHS Compliant: Yes

Recommendations

For optimal performance, use with compatible SFP transceivers and ensure proper cleaning of connectors before installation. This cable is suitable for indoor use in controlled environments.
