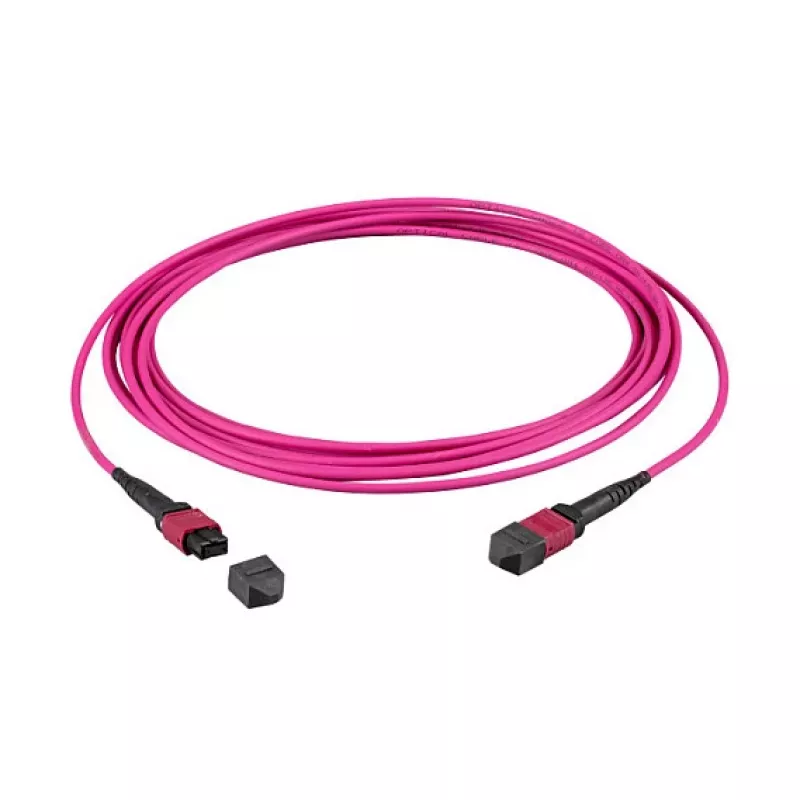

EFB-Elektronik Cabo de rede MTP-F/MTP-F 12 fibras OM4, LSZH, violeta erika, tipo B, 15m

The EFB-Elektronik MTP-F/MTP-F 12-Fiber OM4 Patch Cable is a high-performance fiber optic patch cable designed for demanding data center and enterprise network environments. Featuring MTP female connectors on both ends, this cable supports 12 fibers in a single compact interface, enabling high-density connectivity and efficient cable management. The OM4 multimode fiber ensures excellent bandwidth and low attenuation for 40G and 100G Ethernet applications.

Advantages

This patch cable offers several key benefits: high-density 12-fiber MTP connectivity reduces cable clutter and simplifies installation; OM4 fiber provides superior bandwidth and distance performance; LSZH jacket ensures safety in confined spaces; Type B polarity ensures correct fiber alignment for parallel optics; and the erika violet color allows easy identification in the rack.

Suitable for

• Data center backbone cabling
• High-speed network connections (40G/100G Ethernet)
• Storage area networks (SAN)
• Telecommunications rooms
• Enterprise network infrastructure

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Type: Multimode OM4
• Fiber Count: 12 Fibers
• Connector A: MTP-F (Female)
• Connector B: MTP-F (Female)
• Length: 15 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Erika Violet
• Polarity: Type B (Cross-over)
• Core/Cladding: 50/125 µm
• Insertion Loss: ≤ 0.35 dB per connector
• Return Loss: ≥ 20 dB
• Attenuation at 850nm: ≤ 2.3 dB/km
• Attenuation at 1300nm: ≤ 0.6 dB/km
• Bandwidth (850nm OFL): 4700 MHz·km
• Bandwidth (850nm EMB): 3500 MHz·km
• Operating Temperature: -20°C to 70°C
• Standards Compliance: IEC 61754-7, TIA/EIA-604-5
• Environmental Compliance: RoHS, REACH

Recommendations

For optimal performance in high-density fiber environments, this MTP patch cable is an ideal choice. Ensure compatibility with your network equipment's MTP ports and polarity requirements.
