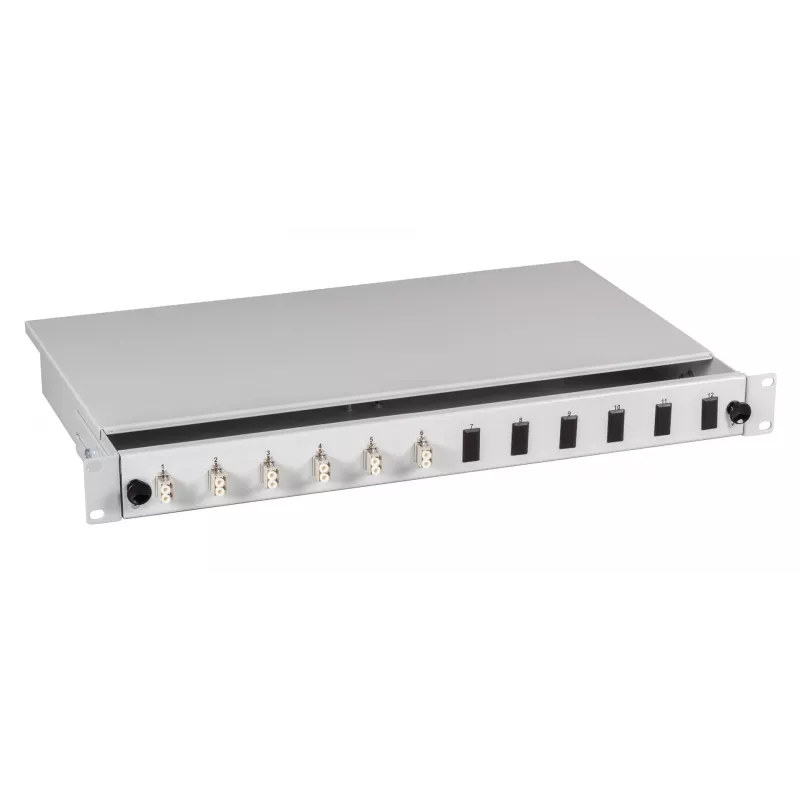

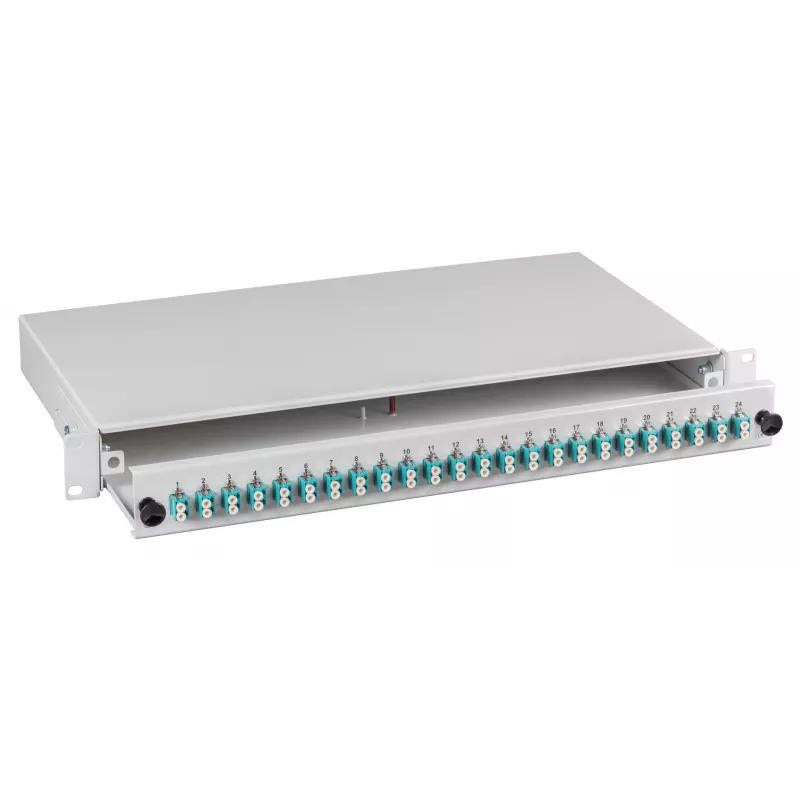

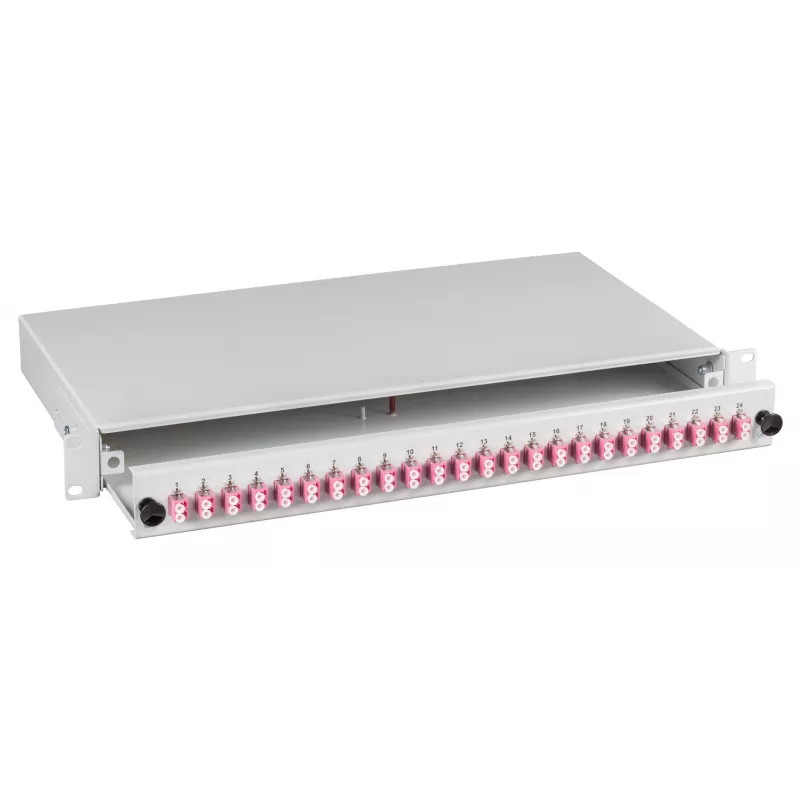

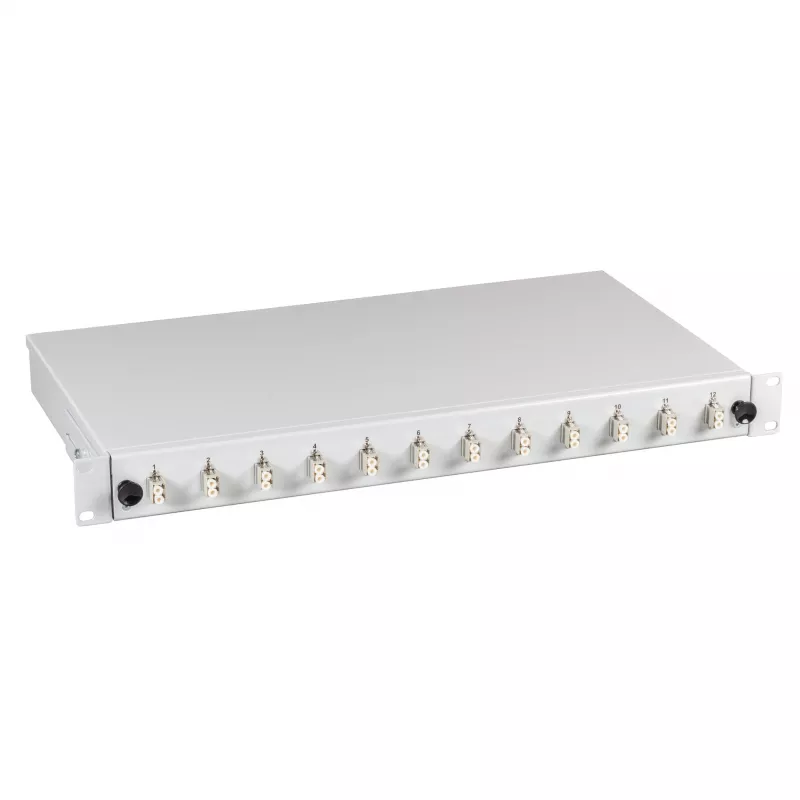

EFB-Elektronik Caixa de fusão LC OS2 48 pigtails / 24 acopladores 1U 19 polegadas gaveta

The EFB-Elektronik B71921.48 is a high-quality fiber optic splice box designed for professional network distribution and termination. Pre-assembled with 48 LC pigtails (9/125 µm OS2 singlemode) and 24 LC duplex adapters, this 1U 19-inch rack-mount unit features a sliding tray for easy access during splicing and maintenance. Ideal for data centers, telecom rooms, and FTTH applications, it ensures reliable performance and efficient cable management.

Advantages

Pre-assembled with pigtails and adapters saves installation time. Sliding tray provides convenient access for splicing and maintenance. Compact 1U design maximizes rack space. Singlemode OS2 fiber ensures high bandwidth and long-distance transmission.

Suitable for

• Fiber optic network distribution and termination
• Data centers and server rooms
• Telecommunications infrastructure
• FTTH (Fiber to the Home) deployments

Key specifications

• Product Type: Fiber Optic Splice Box
• Fiber Mode: Singlemode OS2
• Fiber Core/Cladding: 9/125 µm
• Connector Type: LC
• Number of Pigtails: 48
• Number of Adapter Ports: 24 (Duplex)
• Design: Sliding / Extractable Tray
• Mounting: 19-inch Rack Mount, 1U
• Pre-assembled: Yes
• Application: Fiber Optic Network Distribution, Splicing, Termination

Recommendations

For optimal performance, use with OS2 singlemode patch cables and ensure proper splice protection. Compatible with standard 19-inch racks.
