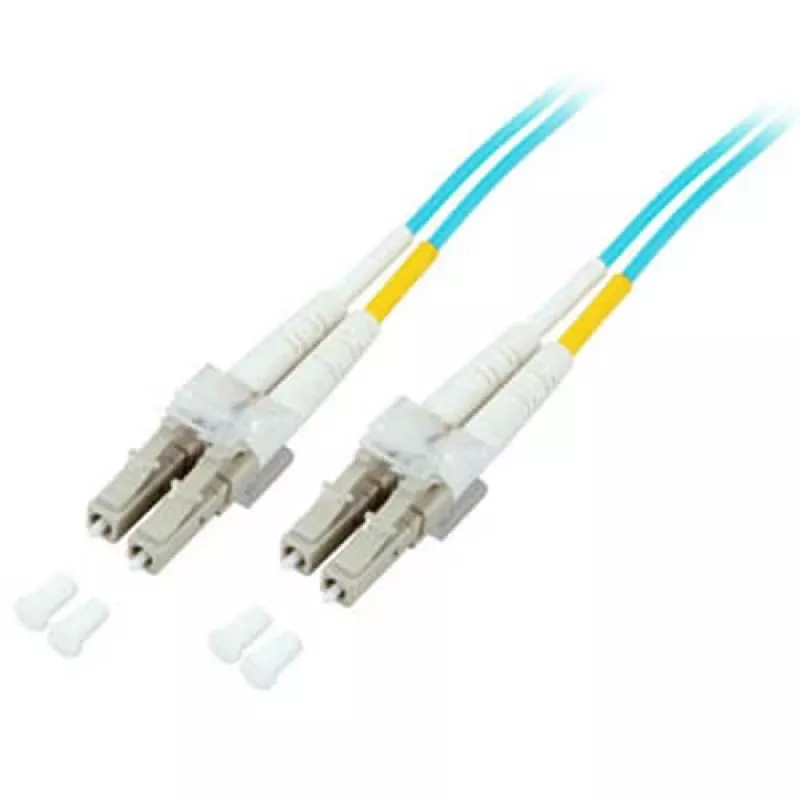

EFB-Elektronik ECOFIBER Jumper Duplex LC-LC 50/125µm OM3 LSZH Aqua 2,0mm 2m

The EFB-Elektronik ECOFIBER Duplex Jumper LC-LC is a high-performance fiber optic patch cable designed for reliable data transmission in data centers, LANs, SANs, and FTTx applications. With OM3 multimode fiber, it supports high-bandwidth applications up to 10 Gbps and beyond.

Advantages

This cable offers low insertion loss and high return loss, ensuring signal integrity. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in enclosed spaces. Its duplex LC connectors enable easy polarity management.

Suitable for

• Data center cabling
• Local area networks (LAN)
• Storage area networks (SAN)
• Fiber to the x (FTTx)

Key specifications

• Fiber type: Multimode OM3 (50/125 µm)
• Connectors: LC duplex to LC duplex
• Cable length: 2 m
• Jacket material: LSZH
• Jacket color: Aqua
• Cable diameter: 2.0 mm per strand
• Insertion loss: < 0.3 dB typical
• Return loss: > 30 dB typical
• Bandwidth: 1500 MHz·km at 850 nm, 500 MHz·km at 1300 nm
• Operating temperature: -20°C to +70°C
• Standards: IEC 60793-2-10 Type A1a.2, TIA/EIA-492AAAC-A

Recommendations

For optimal performance, use with OM3-compatible transceivers and ensure clean connector end-faces before installation.
