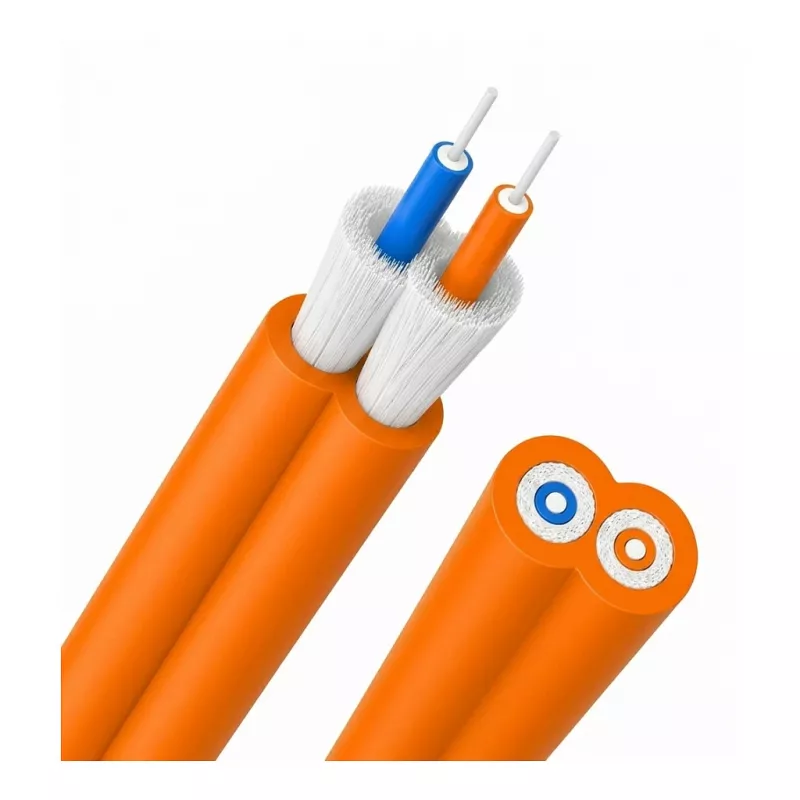

EFB-ELEKTRONIK I-V(ZN)H duplex zipcord OM2 2x1G 50/125µm LSZH laranja 2.8x5.7mm (56002.1)

The EFB-ELEKTRONIK I-V(ZN)H Duplex Zipcord OM2 fiber optic cable is a high-quality indoor patch cable designed for reliable data transmission in structured cabling networks. With a 50/125µm core/cladding and OM2 standard, it supports multimode applications up to 500 MHz·km bandwidth. The cable features a robust LSZH (Low Smoke Zero Halogen) jacket in orange, ensuring safety in enclosed spaces. Its zipcord construction (2.8 x 5.7 mm) allows easy separation for connector termination. Ideal for backbone and horizontal cabling in data centers, offices, and industrial environments.

Advantages

High bandwidth up to 500 MHz·km for OM2 multimode applications; LSZH jacket reduces toxic smoke and halogen emissions; durable aramid yarn strength members for tensile strength; flexible design with minimum bend radius of 30 mm (operation) and 60 mm (installation); wide operating temperature range from -20°C to +70°C.

Suitable for

• Data center cabling
• Local area networks (LAN)
• Telecommunication rooms
• Industrial Ethernet
• Fiber-to-the-desk (FTTD)

Key specifications

• Fiber type: Multimode OM2 (50/125 µm)
• Number of fibers: 2 (duplex)
• Cable construction: Zipcord
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Jacket color: Orange
• Outer dimensions: 2.8 x 5.7 mm
• Attenuation: ≤ 3.0 dB/km @ 850nm, ≤ 1.0 dB/km @ 1300nm
• Bandwidth: 500 MHz·km @ 850nm and 1300nm (OFL)
• Minimum bend radius: 30 mm (operation), 60 mm (installation)
• Temperature range: -20°C to +70°C
• Standards: IEC 60793-2-10 Type A1a.1, ISO/IEC 11801 OM2

Recommendations

For optimal performance, use with OM2-rated connectors (LC, SC, ST, FC) and ensure proper cable management to maintain bend radius. Suitable for indoor installations where low smoke and halogen-free materials are required.
