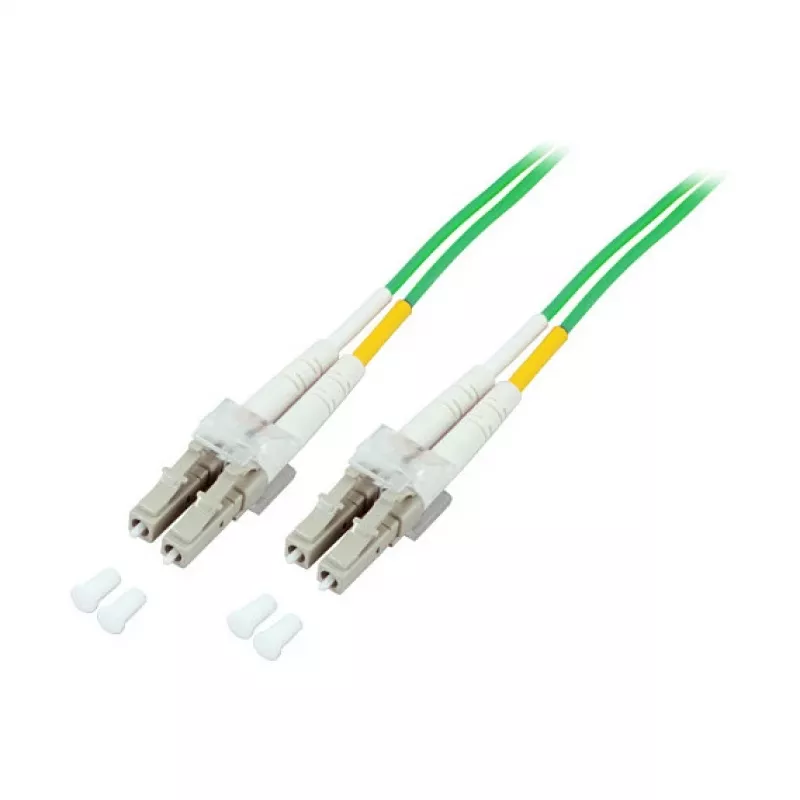

EFB-Elektronik Jumper duplex LC-LC 50/125µ OM5 LSZH verde lima 2,0mm 10m

The EFB-Elektronik Duplex Jumper LC-LC is a high-performance fiber optic patch cable designed for demanding network environments. With OM5 broadband multimode fiber, it supports high-speed data transmission for 10GbE, 40GbE, 100GbE, and 400GbE (SWDM4) applications. The cable features a lime green LSZH (Low Smoke Zero Halogen) jacket, ensuring safety and environmental compliance. Ideal for data centers, enterprise networks, and telecommunications.

Advantages

OM5 fiber provides superior bandwidth and supports multiple wavelengths, enabling future-proof network upgrades. LSZH jacket reduces toxic smoke and halogen emissions in case of fire, making it suitable for confined spaces. Duplex LC connectors ensure reliable, low-loss connections.

Suitable for

• Data center interconnects
• Enterprise network cabling
• Telecommunications infrastructure
• High-speed Ethernet applications (10GbE to 400GbE)

Key specifications

• Cable type: Fiber optic patch cable
• Fiber mode: Multimode
• Fiber standard: OM5
• Core/cladding diameter: 50/125 µm
• Connector type: LC to LC, duplex
• Cable length: 10 m
• Jacket material: LSZH
• Jacket color: Lime green
• Cable diameter: 2.0 mm
• Insertion loss: ≤ 0.3 dB per connector
• Return loss: ≥ 30 dB
• Attenuation (850 nm): ≤ 2.5 dB/km
• Attenuation (1300 nm): ≤ 0.7 dB/km
• Operating temperature: -20°C to +70°C
• Compliance: RoHS, REACH

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard LC duplex ports and supports SWDM4 technology for efficient wavelength division multiplexing.
