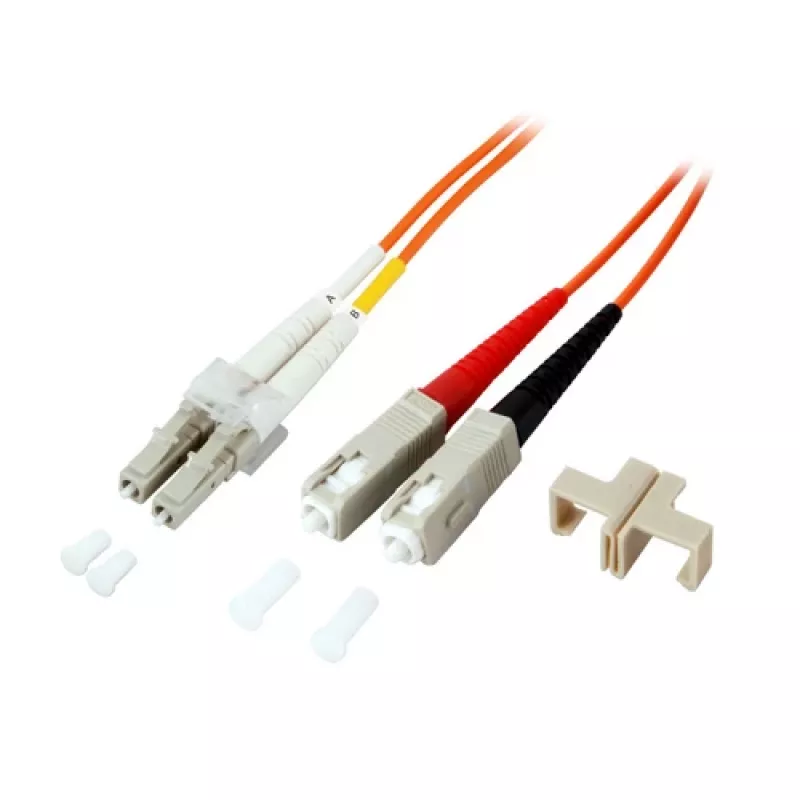

EFB-Elektronik Jumper Duplex LC-SC 50/125µm OM2 LSZH Laranja 2,0mm 20m

The EFB-Elektronik Duplex Jumper LC-SC is a high-quality fiber optic patch cable designed for reliable data transmission in multimode networks. With OM2 grade fiber, LSZH jacket, and a length of 20 meters, this cable is ideal for structured cabling and data center applications.

Advantages

This cable offers low signal loss and high bandwidth, ensuring efficient performance for 1 Gbps and 10 Gbps Ethernet. The LSZH jacket provides safety in enclosed spaces by emitting low smoke and zero halogen in case of fire. The duplex configuration allows simultaneous bidirectional communication.

Suitable for

• Fiber optic network connections between switches, routers, and servers
• Data center cabling infrastructure
• Telecommunications and enterprise networks
• FTTx and LAN applications

Key specifications

• Connector Type: LC to SC
• Fiber Type: Multimode OM2
• Core/Cladding: 50/125 µm
• Cable Length: 20 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Orange
• Cable Diameter: 2.0 mm per strand
• Number of Fibers: 2 (Duplex)
• Connector Polish: UPC
• Attenuation: 3.5 dB/km @850nm, 1.5 dB/km @1300nm
• Bandwidth: 500 MHz·km @850nm and @1300nm

Recommendations

For optimal performance, ensure connectors are clean and properly mated. This cable is compatible with standard LC and SC interfaces. Suitable for indoor installations where fire safety is a concern.
