EFB-Elektronik Módulo de proteção contra sobretensões LSA 2/10 até 10DA 8x13

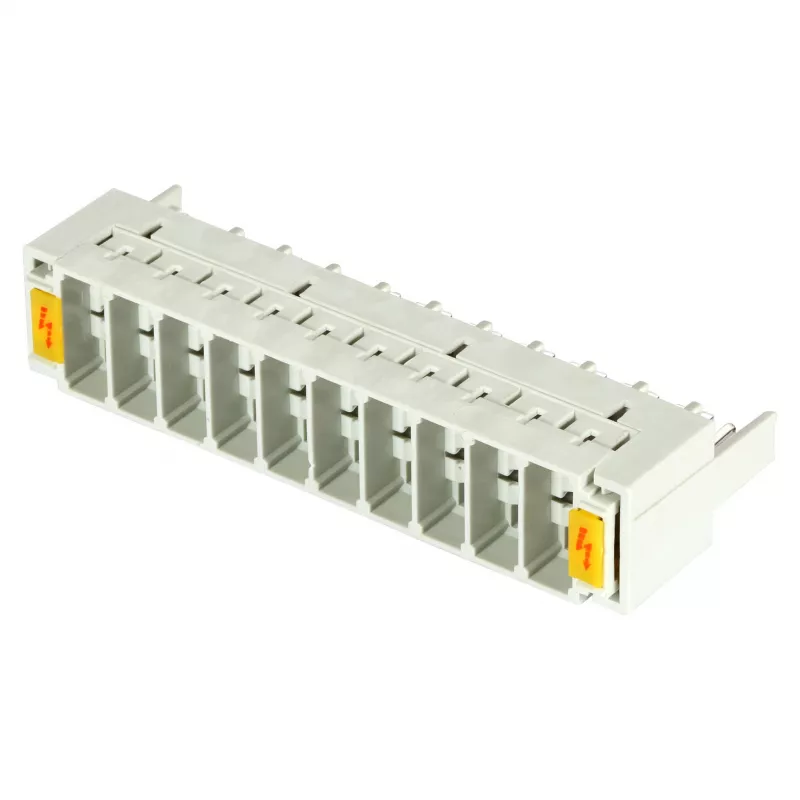

The EFB-Elektronik LSA Overvoltage Protection Magazine 2/10 to 10DA 8x13 is a high-quality surge protection module designed for telecommunication and data lines. It provides reliable protection against overvoltages induced by lightning or switching operations, ensuring the integrity of your network infrastructure.

Advantages

This protection magazine offers robust protection with gas discharge tubes (GDT) rated for up to 10 kA per wire (8/20 µs) and 2.5 kA per wire (10/350 µs). Its compact 8x13 mm GDT design allows for easy integration into existing LSA connection strips. The module is flame-retardant and operates over a wide temperature range, making it suitable for harsh environments.

Suitable for

• Telecommunication lines (e.g., telephone, ISDN, DSL)
• Data transmission lines (e.g., Ethernet, RS-485)
• Protection of sensitive equipment in telecom cabinets and distribution frames

Key specifications

• Product Type: LSA Overvoltage Protection Magazine
• Protection Capacity: 10 Pairs (10DA)
• Protection Poles: 2-pole per pair
• Protection Element: Gas Discharge Tube (GDT) 8x13 mm
• Nominal DC Spark-over Voltage: 230 V
• Nominal Discharge Current (8/20 µs): 5 kA per wire
• Max Discharge Current (8/20 µs): 10 kA per wire
• Impulse Discharge Current (10/350 µs): 2.5 kA per wire
• Connection Type: LSA (LSA-Plus compatible)
• Mounting: Plugs onto LSA connection strips
• Frequency Range: Up to 100 MHz
• Insertion Loss: < 0.5 dB (at 10 MHz)
• Return Loss: > 20 dB (at 10 MHz)
• Operating Temperature: -40°C to +80°C
• Housing Material: Flame-retardant plastic
• Standards: IEC 61643-21 (typical)

Recommendations

For optimal protection, install this magazine on all incoming telecommunication lines. Pair with appropriate grounding and bonding to ensure effective surge current diversion. Regularly inspect GDTs for end-of-life indicators.
