EFB-Elektronik Prateleira extraível 19 polegadas 1U, profundidade de instalação ajustável 950-1050 mm, capacidade de carga 30 kg, profundidade do armário 1200 mm, RAL 7035 cinzento-claro

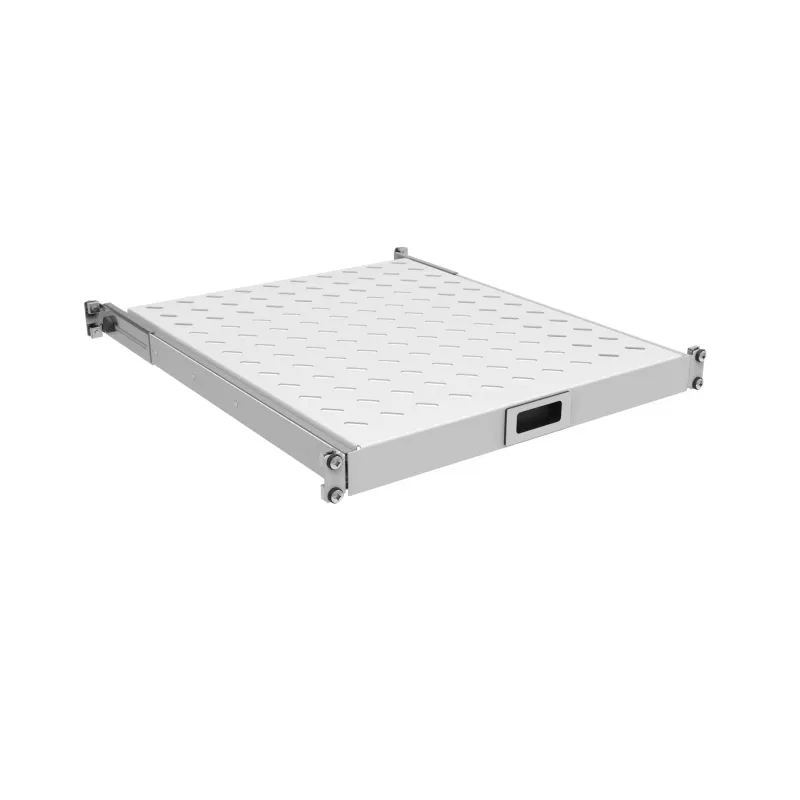

The EFB-Elektronik 691651AGR.12 is a high-quality 19-inch 1U pull-out shelf designed for professional server and network cabinets. With an adjustable mounting depth of 950 to 1050 mm and a shelf depth of 1200 mm, it provides flexible installation options. The shelf supports a load capacity of up to 30 kg, making it ideal for holding heavy equipment such as servers, switches, or patch panels. Its robust steel construction and light grey RAL 7035 finish ensure durability and a clean appearance.

Advantages

This pull-out shelf offers easy access to equipment for maintenance and cable management. The sliding mechanism allows smooth extension, reducing strain on cables and connectors. The adjustable mounting depth ensures compatibility with various cabinet depths, while the 30 kg load capacity accommodates a wide range of devices.

Suitable for

• 19-inch server racks and cabinets
• Data centers and network rooms
• Mounting heavy network equipment, servers, or UPS units
• Applications requiring frequent equipment access

Key specifications

• Rack Standard: 19-inch
• Rack Units: 1U
• Shelf Type: Extendable / Sliding
• Load Capacity: 30 kg

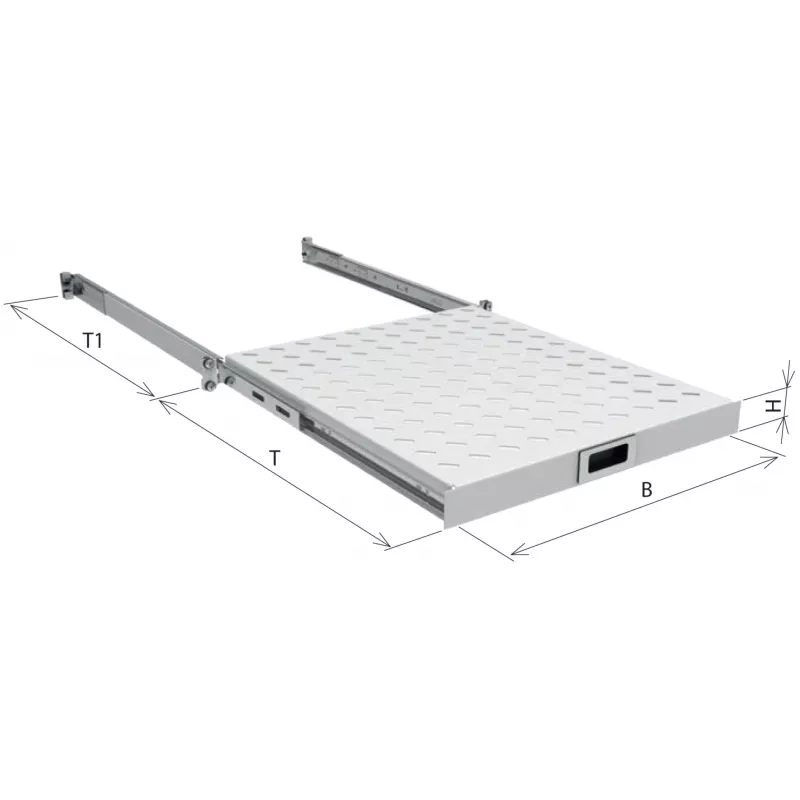

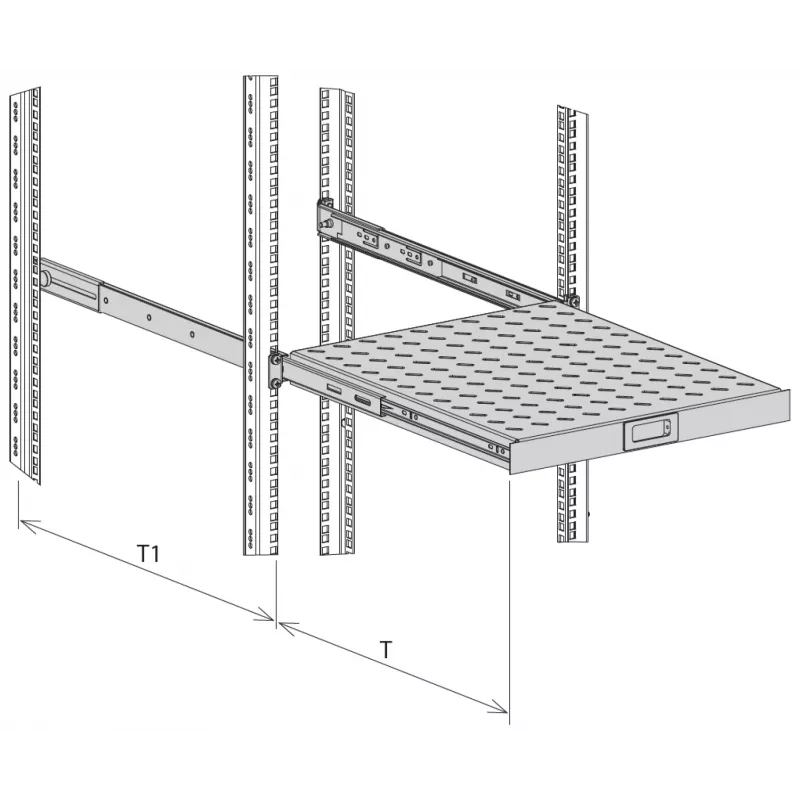

• Adjustable Mounting Depth: 950 - 1050 mm
• Shelf Depth: 1200 mm
• Overall Width: 483 mm
• Overall Height: 44.45 mm
• Color: RAL 7035 (Light Grey)
• Mounting: 4-point rack mounting
• Material: Steel
• EAN: 4049759252809
• Manufacturer Part Number (MPN): 691651AGR.12
• Brand: EFB-Elektronik

Recommendations

For optimal performance, ensure the cabinet depth is at least 1200 mm to accommodate the shelf's full extension. Use appropriate screws and mounting hardware (included) for secure installation. This shelf is ideal for environments where equipment needs to be frequently accessed or serviced.
