EFB-Elektronik termostato para série de ventiladores 69165xV3 e ventilador individual 691664, 230 V, cinzento

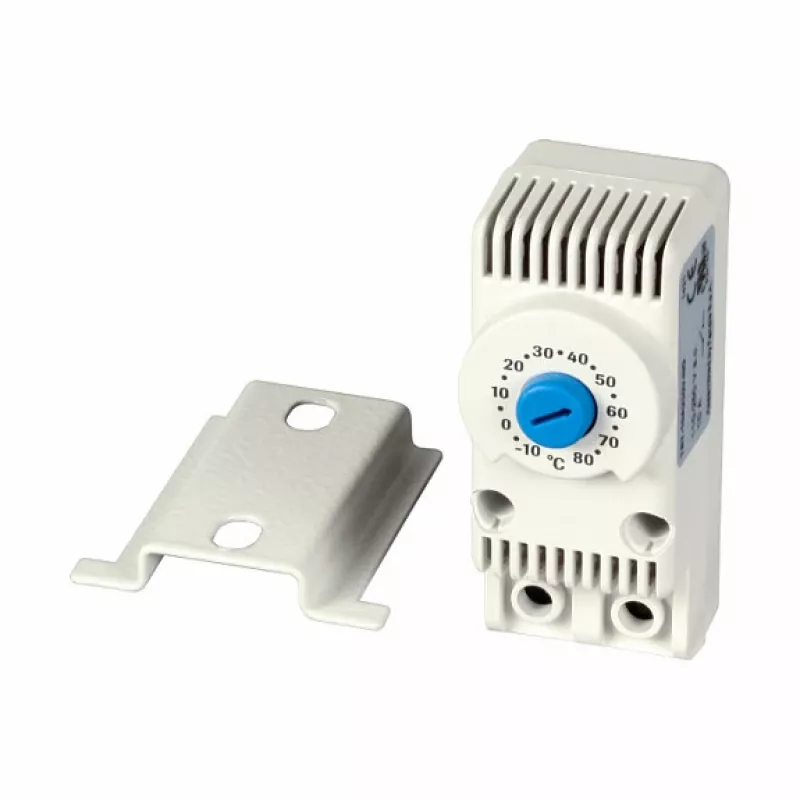

The EFB-Elektronik Thermostat (model 691642.1) is a reliable temperature control device designed for enclosure cooling applications. It is compatible with EFB-Elektronik fan series 69165xV3 and single fan 691664, ensuring precise thermal management in electrical cabinets.

Advantages

This thermostat offers a bimetallic sensor with a normally closed contact, providing dependable switching at the set temperature. Its compact design with bracket mounting simplifies installation, and the 2-pole terminal connection supports wires up to 2.5 mm². The IP20 protection class makes it suitable for indoor use.

Suitable for

• EFB-Elektronik fan series 69165xV3 (models 691654V3, 691655V3, 691656V3)
• EFB-Elektronik single fan 691664
• Enclosure cooling control in industrial and IT environments

Key specifications

• Product Type: Thermostat
• Mounting Type: Bracket Mounting
• Switching Capacity: 250 V AC
• Max. Resistive Load: 10 A
• Max. Inductive Load: 2 A
• Temperature Setting Range: 0°C to +60°C
• Hysteresis: 7 K (± 4 K)
• Sensor Type: Bimetallic
• Contact Type: Normally Closed (NC)
• Connection Type: 2-pole Terminal
• Max. Wire Cross-Section: 2.5 mm²
• Protection Class: IP20
• Housing Material: Plastic (UL94 V-0)
• Colour: Grey

Recommendations

For optimal performance, pair this thermostat with EFB-Elektronik fans from the 69165xV3 series or the single fan 691664. Ensure proper mounting and electrical connections according to the installation manual.
