EFB PRO-Modular Armário de rede 24U 800x800mm RAL7035

The EFB PRO-Modular 24U network cabinet offers a robust and secure housing solution for your 19-inch rack equipment. Designed for professional data centers and server rooms, this floor-standing cabinet combines high load capacity with flexible cable management and easy access.

Advantages

With a static load capacity of 800 kg, depth-adjustable mounting rails, and lockable front and rear doors, the PRO-Modular cabinet ensures both safety and adaptability. The removable side panels and 180-degree door opening angle simplify installation and maintenance. Integrated grounding and top/bottom cable entry provide a clean and organized setup.

Suitable for

• Server rooms and data centers requiring high-density equipment mounting
• Network and IT infrastructure installations
• Professional AV and broadcast environments

Key specifications

• Rack Units: 24U
• Rack Standard: 19 inch
• Dimensions: 800 x 800 mm (width x depth)
• Colour: Light Grey (RAL 7035)
• Material: Steel, powder-coated
• Front door: Glass, lockable
• Rear door: Steel, lockable
• Side panels: Removable, lockable
• Cable entry: Top and bottom
• Static load capacity: 800 kg
• Protection class: IP20
• Mounting type: Floor standing
• Mounting rails: Depth-adjustable 19"
• Ventilation: Passive, prepared for active fan units

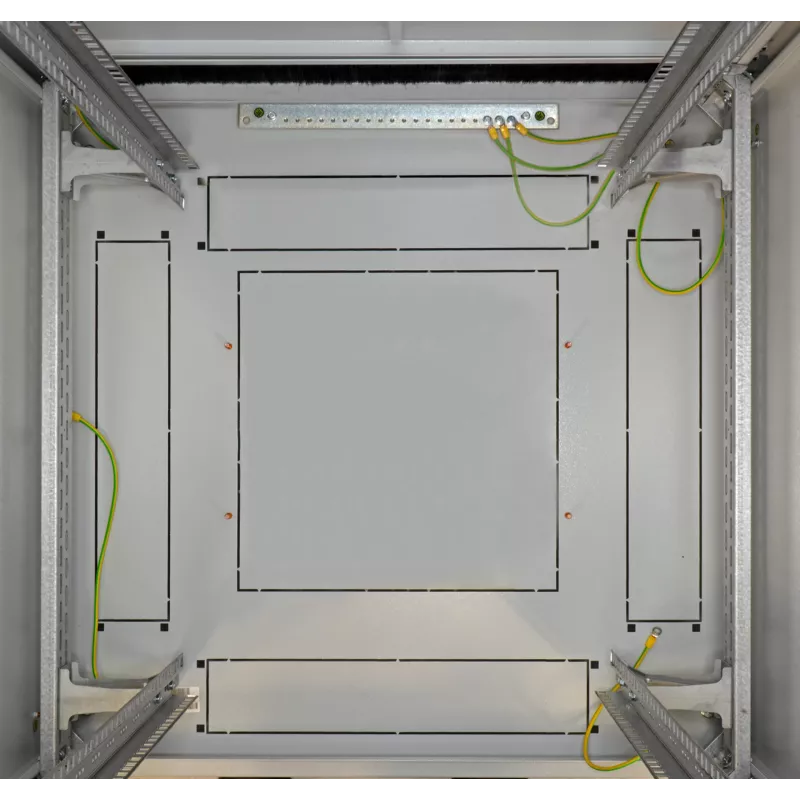

• Grounding: Integrated grounding kit
• Construction: Pre-assembled
• Number of doors: 2 (front and rear)
• Door opening angle: 180 degrees
• Finish: Powder-coated

Recommendations

For optimal performance, pair this cabinet with EFB patch panels and cable management accessories. Ensure adequate ventilation and consider adding active fan units for high-density setups.
