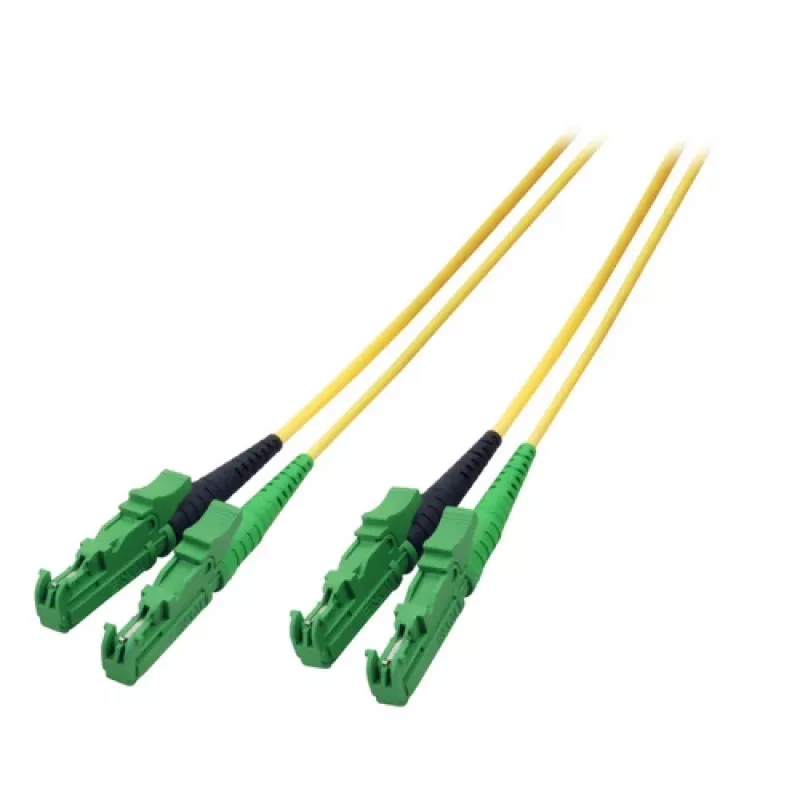

EFB R&M Cabo de patch duplex E2000/APC para E2000/APC OS2 monomodo 3m LSZH 3mm amarelo G657A1 classe C

For fibre optic links that demand low loss and high return loss, this EFB R&M duplex patch cable pairs E2000/APC connectors on both ends with bend-insensitive G.657.A1 singlemode fibre. The 3-metre length and 3 mm LSZH jacket make it a practical choice for patching in data centres, FTTx cabinets, or telecom rooms where space is tight and safety regulations apply. Unlike standard patch leads, the E2000/APC interface includes an integrated spring-loaded shutter that protects the ferrule from dust and laser radiation whenever the connector is unmated.

Highlights

• Duplex OS2 singlemode fibre with 9/125 µm core/cladding for long-reach, high-speed transmission.
• E2000/APC connectors on both ends: 8° angled polish minimises back reflection, typically ≥60 dB return loss.
• Bend-insensitive G.657.A1 fibre allows tight routing with a minimum bend radius of 10 mm.
• LSZH (Low Smoke Zero Halogen) yellow jacket, 3 mm diameter, for safe indoor use in public buildings.
• Grade C quality with zirconia ceramic ferrules for consistent insertion loss ≤0.25 dB.
• Compliant with RoHS and REACH; suitable for 10G, 40G, and 100G Ethernet, Fibre Channel, and other protocols.

In daily use

Installation is straightforward: the E2000/APC connectors click into compatible adapters and the push-pull locking mechanism prevents accidental disconnection. The duplex zip-cord design keeps transmit and receive fibres together, simplifying cable management. The yellow LSZH jacket is easy to identify among copper cables and does not emit toxic fumes in the event of fire. Whether you are patching between switches and patch panels, connecting optical distribution frames, or extending a fibre link in a server rack, this cable provides reliable performance with low insertion loss and high return loss, ensuring signal integrity for today's high-bandwidth applications.

Full specifications

• Brand: EFB
• Model: O0933.3
• MPN: O0933.3
• EAN: 4049759025830
• Cable type: Fibre optic patch cable, duplex
• Connector A: E2000/APC
• Connector B: E2000/APC
• Fibre mode: Singlemode
• Fibre category: OS2
• Fibre standard: ITU-T G.657.A1 (bend-insensitive)
• Cable length: 3 m
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Cable diameter: 3 mm
• Cable colour: Yellow
• Core/cladding diameter: 9/125 µm
• Insertion loss (typical): ≤ 0.25 dB
• Return loss (typical): ≥ 60 dB
• Ferrule material: Zirconia ceramic
• Minimum bend radius: 10 mm
• Operating temperature: -20°C to +70°C
• Compliance: RoHS, REACH
• Quality grade: Grade C
• Application: High-speed data networks, FTTx, data centres, telecommunications

Final note

Engineered for precision and reliability, this EFB R&M duplex patch cable is a solid investment for professionals who require stable, low-loss fibre connections in demanding environments. Its bend-insensitive fibre and robust E2000/APC connectors make it a versatile component for any modern optical network.
