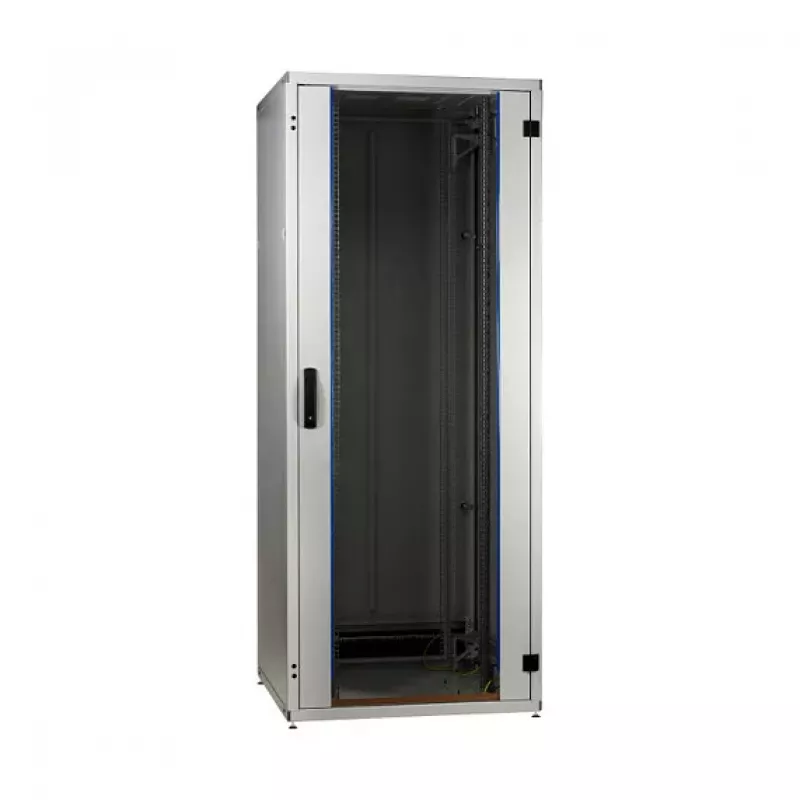

EFB Série PRO Armário de rede 19 polegadas 47U 800x1200mm RAL 7035 cinzento-claro IP20 Totalmente pré-montado desmontável capacidade de carga 1000kg

The EFB PRO Series 47U network cabinet is a high-quality 19-inch rack enclosure designed for professional IT environments. With a robust construction and generous dimensions of 800x1200mm (WxD), it offers ample space for servers, switches, and other network equipment. The cabinet is finished in RAL 7035 light grey and features a load capacity of up to 1000 kg, ensuring reliable support for heavy installations.

Advantages

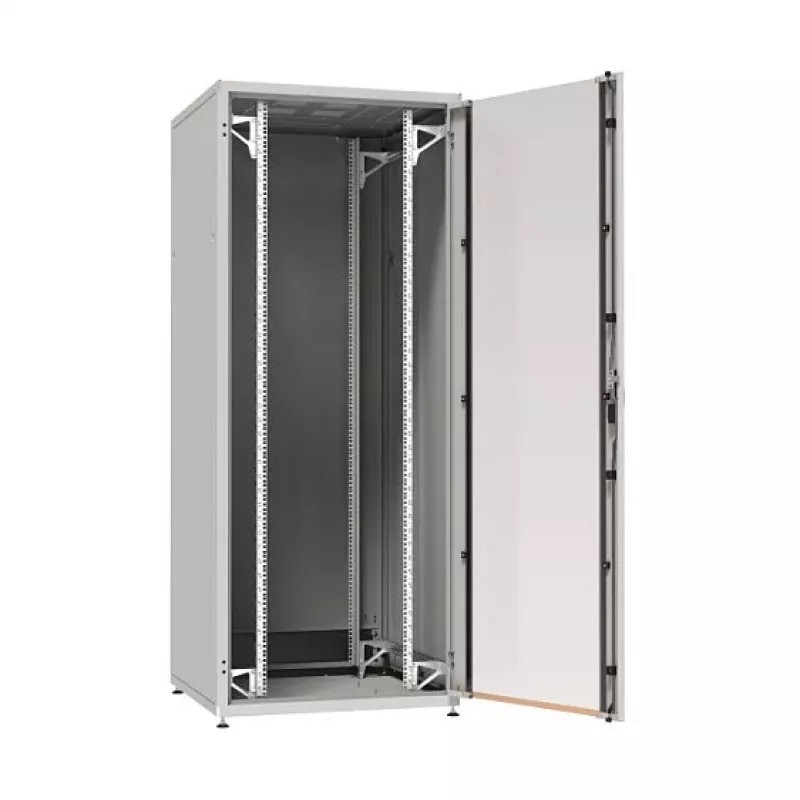

This cabinet is fully pre-assembled for immediate use, yet can be disassembled if needed for transport or reconfiguration. The lockable safety glass front door and perforated steel rear door provide security and optimal ventilation. Removable side panels allow easy access for cable management and maintenance. Adjustable 19-inch profile rails accommodate various equipment depths, and cable entry points at top and bottom simplify organization.

Suitable for

• Data centers and server rooms requiring high-density rack mounting
• Network infrastructure for enterprise, industrial, or telecommunications applications
• Installations needing robust security and passive cooling

Key specifications

• Rack Standard: 19-inch
• Rack Units: 47U
• External Dimensions (WxDxH): 800 x 1200 x 2200 mm
• Load Capacity: 1000 kg
• Ingress Protection: IP20
• Colour: RAL 7035 Light Grey
• Material: Sheet steel, powder-coated
• Assembly State: Fully pre-assembled (disassemblable)
• Front Door: Safety glass, lockable
• Rear Door: Perforated steel, lockable
• Side Panels: Removable

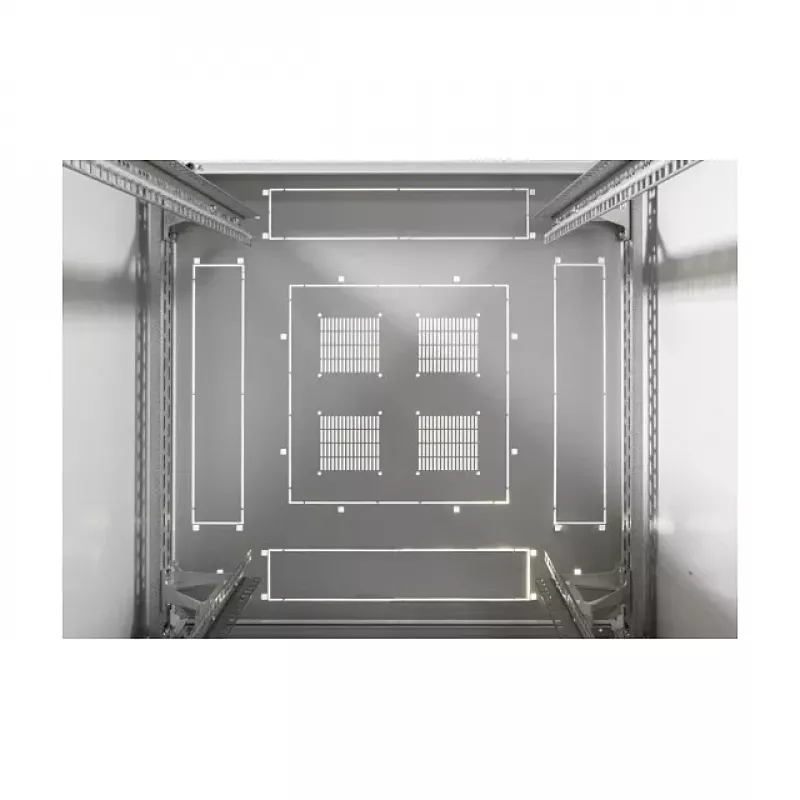

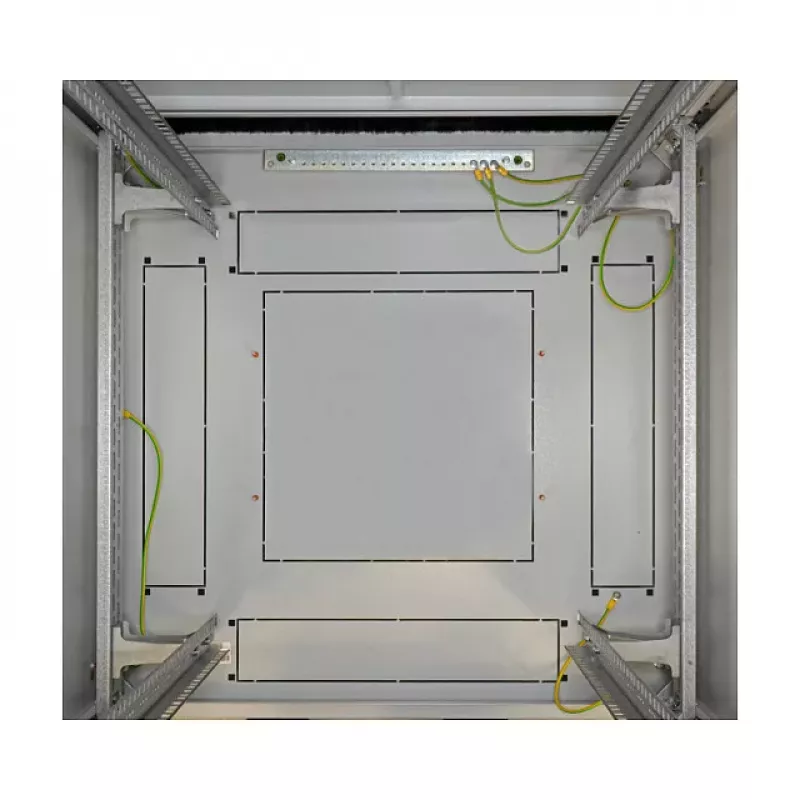

• Cable Entry: Top and bottom
• Mounting Rails: Adjustable 19-inch profile rails
• Base: Plinth with levelling feet
• Ventilation: Passive

Recommendations

For optimal performance, ensure proper airflow and cable management. This cabinet is ideal for medium to large-scale network deployments requiring high capacity and security.
