EFB Elektronik Ficha RJ45 Cat.6A de Montagem em Campo (macho) - Blindada

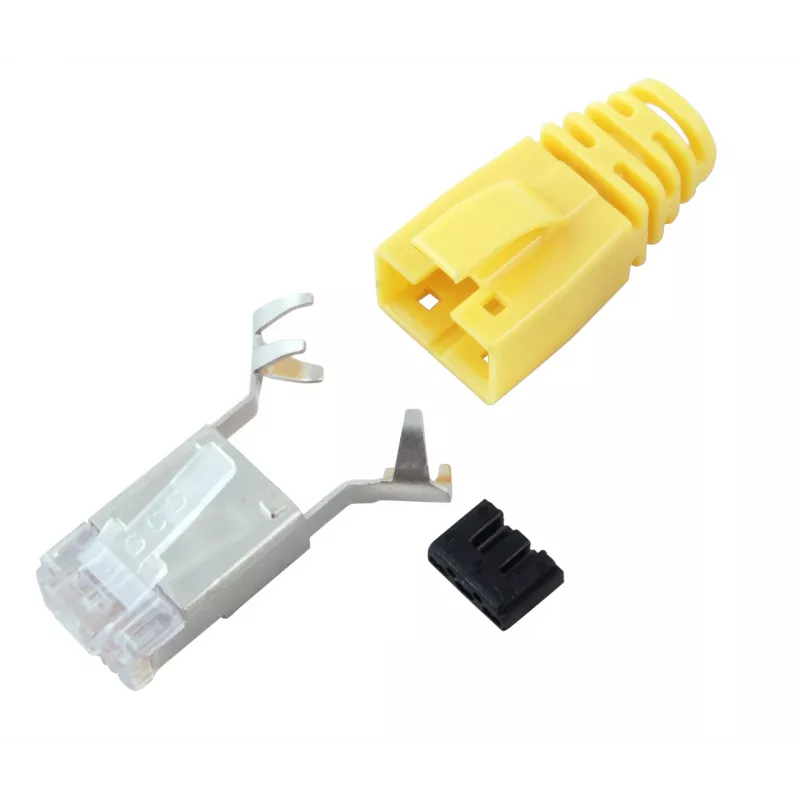

The EFB Elektronik RJ45 Cat.6A Field-Terminable Connector (Male) is a high-performance, shielded RJ45 plug designed for reliable 10 Gigabit Ethernet connections. It supports both solid and stranded conductors, making it ideal for structured cabling and industrial networking environments.

Advantages

Tool-free, field-terminable design allows for quick and easy installation without special tools. The die-cast zinc housing provides robust shielding and durability. Re-terminable up to 10 times, reducing waste and cost. Supports PoE, PoE+, and 4PPoE (IEEE 802.3af/at/bt) for power-over-Ethernet applications.

Suitable for

• Data centers and server rooms requiring high-speed 10GBASE-T connections
• Industrial Ethernet networks with shielded cabling
• Structured cabling systems for Cat.6A Class EA performance
• Power-over-Ethernet devices such as IP cameras, access points, and IoT sensors

Key specifications

• Connector Type: RJ45 Male (Plug)
• Category: Cat.6A (Class EA)
• Shielding: Shielded (FTP/STP)
• Termination: Field-terminable, tool-free
• Contacts: 8P8C, gold-plated (50µ")
• Data Rate: Up to 10 Gbps (10GBASE-T)
• PoE Support: PoE, PoE+, 4PPoE (802.3af/at/bt)
• Wire Compatibility: Solid (AWG 22-26) and Stranded (AWG 22/7-26/7)
• Cable Outer Diameter: 6.0 - 9.0 mm
• Housing Material: Die-cast zinc
• Operating Temperature: -40°C to +70°C
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA-568

Recommendations

For optimal performance, use with Cat.6A shielded patch cables and ensure proper grounding. Suitable for both permanent and temporary installations.
