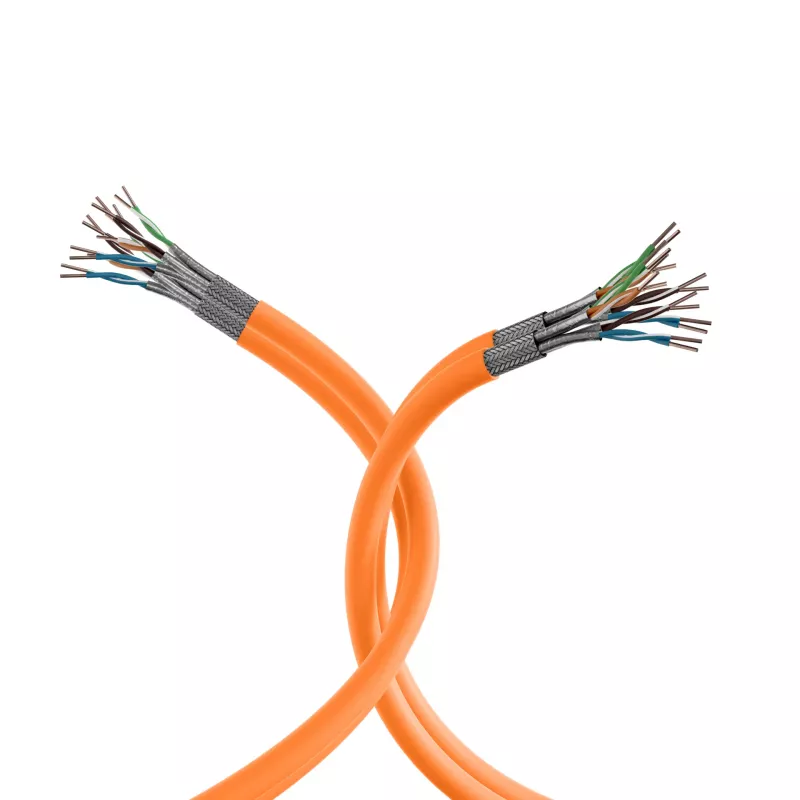

EFB Elektronik INFRALAN Cabo de instalação Cat.7 1000 AWG23 S/FTP 2x4P CPR Eca laranja 100m

Network installers running high-speed backbone links in office buildings or data centres rely on this 100-metre drum of Cat.7 cable for dependable 10 Gigabit Ethernet over copper. The orange LSZH jacket stands out in cable trays, while the S/FTP shielding keeps alien crosstalk at bay even when bundles run parallel.

Key specifications

• Category 7 performance, tested to 600 MHz

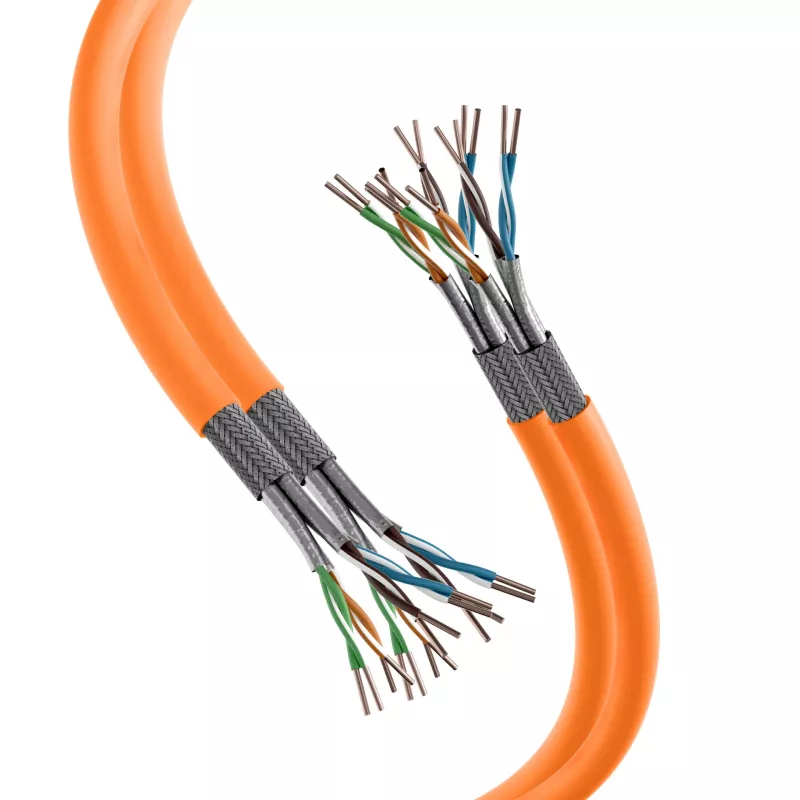

• S/FTP shielding: individual foil per pair plus overall braid
• Solid bare copper conductors, AWG23 (0.57 mm)

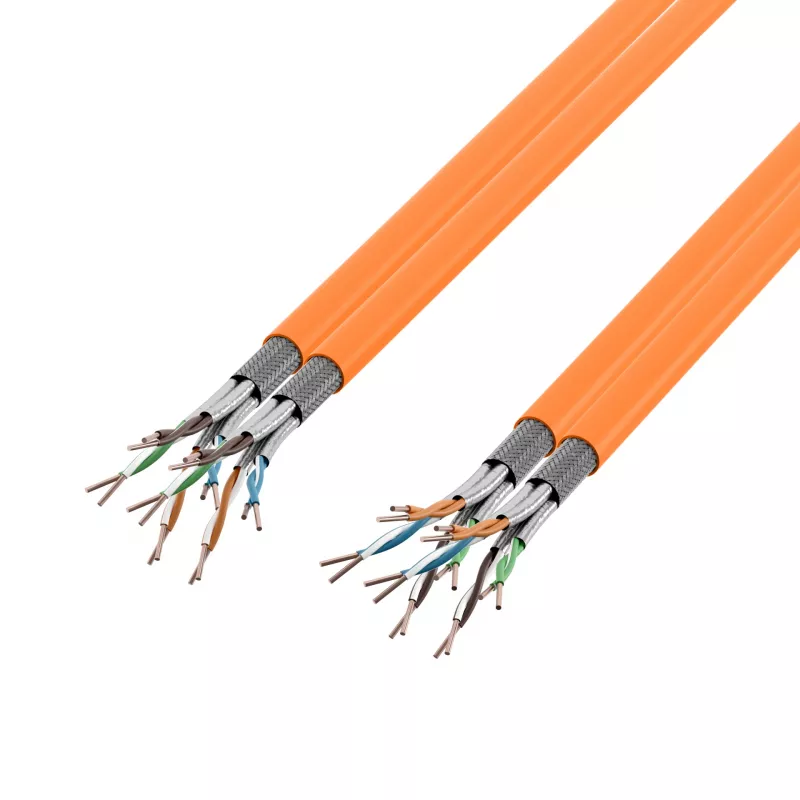

• 2 x 4 twisted pairs (duplex construction)
• LSZH (Low Smoke Zero Halogen) orange jacket
• CPR fire class Eca
• 100 m pull box
• Nominal outer diameter: 7.5 mm
• Impedance: 100 ± 5 Ohm
• Supports PoE up to IEEE 802.3bt (PoE++)

Why choose it

This cable meets ISO/IEC 11801, EN 50173 and TIA/EIA-568-C.2 requirements for Class F cabling. The solid copper core guarantees low DC resistance and excellent signal integrity over long permanent links, while the halogen-free jacket improves fire safety in occupied spaces. Each drum is sequentially metre-marked for easy inventory management.

Ideal use cases

• Horizontal cabling in offices, schools and hospitals
• Data centre inter-rack and intra-rack connections
• High-density patch panel terminations
• PoE lighting, IP cameras and wireless access points
• Industrial Ethernet where EMI is a concern

Good to know

Installation temperature range is 0°C to +50°C; operating range is -20°C to +60°C. The cable is flame retardant per IEC 60332-1-2 and halogen-free per IEC 60754-2. For best performance, use Cat.7 connectors and maintain bend radius guidelines.
